SCZ-800 Series Zoom Camera Modules

Offers long range and wide area surveillance with focal lengths up to  775/850mm and up to UHD video resolutions. Equipped with rolling and global shutter options, OIS and NIR defogging support, it provides stable and clear images from wide to tele. It is ideal for border and coastal surveillance, even in challenging lighting conditions.
SCZ-800 Series Zoom Camera Modules
Long Range Coverage
The high quality multi-aspheric customized lens offers 15~775/15~850mm, 52/57x optical zoom ability, which is the sweet point focal length of long range security applications like border, costal, forest wildfire, provides long range coverage over 10KM*
*Detection range for vehicles, based on the IEC EN62676-4:2015 standard
High Definition
Adopting up to 4K Ultra HD high performance 1/1.8" Sony Starvis CMOS, the SCZ-800 camera modules present vivid and crisp image with high dynamic range in both tele and wide end under any lighting conditions.

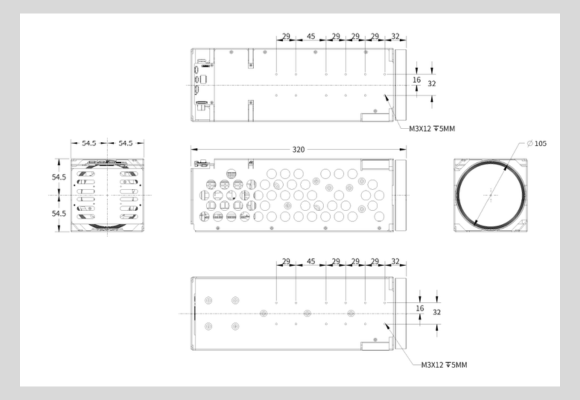

Solid Form Factor
All the top tier technical specs are packed in a relatively compact case, the SCZ-800 series camera modules are the industry's smallest and lightest with 800mm focal length, can be easily fit in most high performace PT system in the industry.
Great Low Light Sensitivity
The Large size 1/1.8" Starvis sensor along with the latest powerful AI ISP, provides superb low-light sensitivity. Achieving even full color monitoring at night.

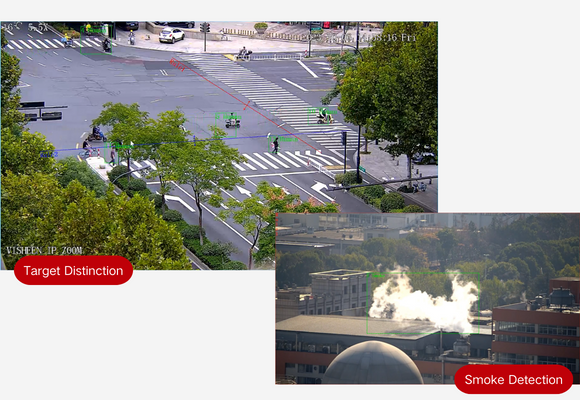

AI Detections
Adopting one of the most advanced AI ISP in industry which has up to 4Tops computing power. The SCZ-800 AI camera modules are capable of  running various machine learning trained detection (human/vehicle/vessel classification etc) algorithms with excellent accuracy, reducing most of the false alert and archiving smart multi-target tracking.
Which is the Best for You?
Block Cameras
Thermal Modules
Multispectral Cameras
Drone Gimbals
Accessories
4MP 52x 15~775mm Zoom Ultra Long Range OIS Full Color AI ISP IP Network Camera Module

4MP 52x 15~775mm Zoom Ultra Long Range OIS Full Color AI ISP IP Network Camera Module

VS-SCZ4052YIO-8
1/1.8" CMOS, 4.17 Megapixel
Sensor
15~775mm, 52× Zoom, OIS
Lens
4MP 52x 15~775mm Zoom Ultra Long Range Full Color AI ISP IP Network Camera Module

4MP 52x 15~775mm Zoom Ultra Long Range Full Color AI ISP IP Network Camera Module

VS-SCZ4052YIE-8
1/1.8" CMOS, 4.17 Megapixel
Sensor
15~775mm, 52× Zoom
Lens
50X 6~300mm 4K 8MP UHD Network Long Range Zoom Block Camera Module NDAA Compliant

50X 6~300mm 4K 8MP UHD Network Long Range Zoom Block Camera Module NDAA Compliant

VS-SCZ8050M-8
1/1.8" CMOS, 8.42 Megapixel
Sensor
6~300mm, 50× Zoom
Lens
50X 6~300mm 4MP Network Long Range Zoom Camera Module

50X 6~300mm 4MP Network Long Range Zoom Camera Module

VS-SCZ4050NM-8
1/1.8" CMOS, 4.17 Megapixel
Sensor
6~300mm, 50× Zoom
Lens
3MP Global Shutter IP Network 50X Long Range Zoom Camera Module

3MP Global Shutter IP Network 50X Long Range Zoom Camera Module

VS-SCZ3050NM-8
1/1.8" 3.19MP Global Shutter
Sensor
6~300mm, 50x Zoom
Lens
88X 10.5~920mm 4MP Network Ultra Long Range Network Zoom Camera Module

88X 10.5~920mm 4MP Network Ultra Long Range Network Zoom Camera Module

VS-SCZ4088NM-8
1/2" CMOS, 2.13 Megapixel
Sensor
10~860mm, 86× Zoom
Lens
2MP 60x 10~600mm Zoom Long Range Low Light Full Color AI Camera Module

2MP 60x 10~600mm Zoom Long Range Low Light Full Color AI Camera Module

VS-SCZ2060VIM-8
1/1.2" CMOS, 8 Megapixel
Sensor
10~600mm, 60× Zoom
Lens
2MP FHD 57x 15~850mm Zoom Ultra Long Range Low Night Full Color AI ISP Camera Module

2MP FHD 57x 15~850mm Zoom Ultra Long Range Low Night Full Color AI ISP Camera Module

VS-SCZ2057VIM-8
1/1.8" CMOS, 4.17 Megapixel
Sensor
15~850mm, 57× Zoom
Lens
3MP Global Shutter 775mm 52X Long Range Full Color AI ISP OIS Network Zoom Module

3MP Global Shutter 775mm 52X Long Range Full Color AI ISP OIS Network Zoom Module

VS-SCZ3052NIO-G
1/1.8" CMOS, 3.19 Megapixel, Global Shutter
Sensor
15~775mm, 52× Zoom
Lens
88× 3MP Global Shutter Ultra LONG-RANGE Network Zoom Camera Module

88× 3MP Global Shutter Ultra LONG-RANGE Network Zoom Camera Module

VS-SCZ3088NM-8
1/1.8" CMOS, 4.17 Megapixel
Sensor
11.3~1000mm, 88× Zoom
Lens
90X 6~540mm 2MP Network Long Range Zoom Camera Module

90X 6~540mm 2MP Network Long Range Zoom Camera Module

VS-SCZ2090NM-8
1/1.8" CMOS, 8.42 Megapixel
Sensor
6~540mm, 90× Zoom
Lens
68X 6~408mm 2MP Network Long Range Zoom Camera Module

68X 6~408mm 2MP Network Long Range Zoom Camera Module

VS-SCZ2068NM-8
1/1.8" CMOS, 4.17 Megapixel
Sensor
6~408mm, 68× Zoom
Lens
>
<
Uncooled VOx 640*512 25~225mm Long Range LWIR Network Thermal Camera Module

Uncooled VOx 640*512 25~225mm Long Range LWIR Network Thermal Camera Module

VS-SCM62259HR2-D
Uncooled 640x512
Detector
25~225mm, 9x zoom
Lens
Uncooled VOx 1280*1024 50~350mm 7x Zoom High Definition Network Thermal Camera Module

Uncooled VOx 1280*1024 50~350mm 7x Zoom High Definition Network Thermal Camera Module

VS-SCMA3507NR2-D
Uncooled 1280×1024
Detecter
50~350mm 7x Continuous Zoom
Lens
Uncooled VOx 1280*1024 30~150mm Network LWIR Long Range Thermal Infrared Camera Module

Uncooled VOx 1280*1024 30~150mm Network LWIR Long Range Thermal Infrared Camera Module

VS-SCMA1505HR2-D
Uncooled 1280x1024
Detecter
30~150mm, 5x zoom
Lens
1280×1024 30× Zoom SWIR Camera Zoom Lens Module

1280×1024 30× Zoom SWIR Camera Zoom Lens Module

VS-MIZA030NIB
1/2" InGaAs
Sensor
17~510mm, 30x zoom
Lens
>
<
2MP 30X Zoom and 640*512 Thermal Bispectral Dual Sensor Temperature Measurement Network Camera Module

2MP 30X Zoom and 640*512 Thermal Bispectral Dual Sensor Temperature Measurement Network Camera Module

VS-SCZ2030NA-RT6-25
1/2.8" CMOS, 2.13 Megapixel
Visible Sensor
4.7~141mm, 30× zoom
Visible Lens
Uncooled 640×512
Thermal Detector
25mm, athermalized
Thermal Lens
2MP 30X Zoom and 640*512 Thermal Bispectral Dual Sensor Network Camera Module

2MP 30X Zoom and 640*512 Thermal Bispectral Dual Sensor Network Camera Module

VS-SCZ2030NA-RV6-25
1/2.8" CMOS, 2.13 Megapixel
Visible Sensor
4.7~141mm, 30× zoom
Visible Lens
Uncooled 640×512
Thermal Detector
25mm, athermalized
Thermal Lens
2MP 35X Zoom and 640*512 Thermal Bispectral Dual Sensor Temperature Measurement Network Camera Module

2MP 35X Zoom and 640*512 Thermal Bispectral Dual Sensor Temperature Measurement Network Camera Module

VS-SCZ2035N-RT6-25
1/2" CMOS, 2.13 Megapixel
Visible Sensor
6~210mm, 35× zoom
Visible Lens
Uncooled 640×512
Thermal Detector
25mm, athermalized
Thermal Lens
2MP 35X Zoom and 640*512 Thermal Bispectral Dual Sensor Network Camera Module

2MP 35X Zoom and 640*512 Thermal Bispectral Dual Sensor Network Camera Module

VS-SCZ2035N-RV6-25
1/2" CMOS, 2.13 Megapixel
Visible Sensor
6~210mm, 35× zoom
Visible Lens
Uncooled 640×512
Thermal Detector
25mm, athermalized
Thermal Lens
50X 6~300mm 4MP & 640*512 25~75mm Thermal Bispectral Network Long Range Zoom Camera Module

50X 6~300mm 4MP & 640*512 25~75mm Thermal Bispectral Network Long Range Zoom Camera Module

VS-SCZ4050N-8-RV60753
1/1.8" CMOS, 4.17 Megapixel
Visible Sensor
6~300mm, 50× Optical Zoom
Visible Lens
Uncooled 640×512
Thermal Detector
25~75mm, 3x Zoom
Theremal Lens
>
<
30X 2MP 3-Axis Stabilization Drone Gimbal Camera

30X 2MP 3-Axis Stabilization Drone Gimbal Camera

VS-UAP2030
30x 2MP Visible 640x512 Thermal Imaging Laser Range Finder Trispectral Gimbal Camera

30x 2MP Visible 640x512 Thermal Imaging Laser Range Finder Trispectral Gimbal Camera

VS-UAP2030-GV6019-L15
30x 2MP Visible 640x512 Thermal Imaging Bispectral Gimbal Camera

30x 2MP Visible 640x512 Thermal Imaging Bispectral Gimbal Camera

VS-UAP2030-GV6025
10x 2MP Visible 640x512 Thermal Imaging Laser Range Finder Laser Pointer Multi-spectral Gimbal Camera

10x 2MP Visible 640x512 Thermal Imaging Laser Range Finder Laser Pointer Multi-spectral Gimbal Camera

VS-UAP2010-GV6019-L15-P
>
<
>
<
