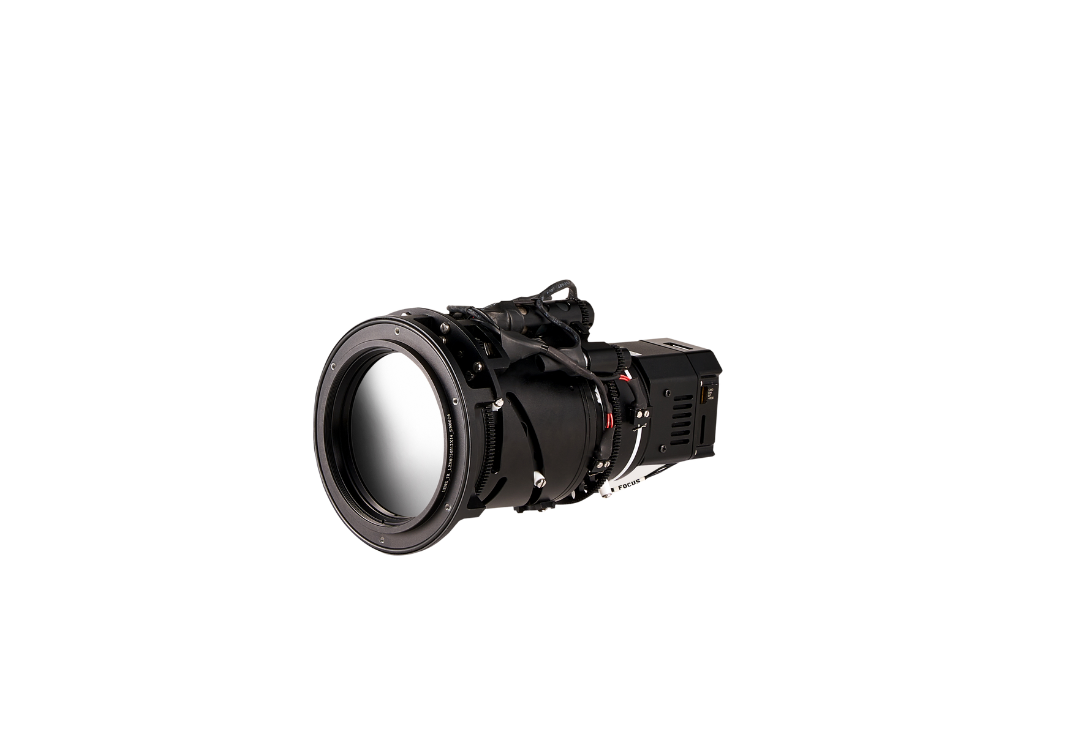

50X 6~300mm 4MP & 640*512 25~75mm Thermal Bispectral Network Long Range Zoom Camera Module

VS-SCZ4050N-8-RV60753

· 1/1.8”4MP Sony CMOS

· 6-300mm 50× zoom, fast and accurate autofocus
· 640*512 Uncooled LWIR
· 25~75mm, Continuous Zoom
· Single IP address for visible and thermal channels

50X 6~300mm 4MP & 640*512 25~75mm Thermal Bispectral Network Long Range Zoom Camera Module

Overview Specifications Download Related Products

GET PRICING/INFO

50X 6~300mm 4MP & 640*512 25~75mm Thermal Bispectral Network Long Range Zoom Camera Module VS-SCZ4050N-8-RV60753

Features

All in one

A fully integrated package of VISHEEN zoom camera module and LWIR thermal module. With one IP address to access both visible and thermal channel, it offers easy-to-use experience for every operator. A ready-to-go solution for your bispectral camera system.

The Perfect Match

The combo of 300mm zoom visible lens and 75mm zoom thermal lens, a complementary pair for your camera system to cover over 5KM range in any light conditions.

Specifications

Visible
Sensor	Type	1/1.8" Sony Progressive Scan CMOS
	Effective Pixels	4.17 Megapixels
Lens	Focal Length	6 ～ 300mm
	Optical Zoom	50×
	Aperture	FNo: 1.4 ～ 4.8
	HFOV	66° ～ 1.4°
	VFOV	40.3° ～ 0.8°
	DFOV	73.4° ～ 1.7°
	Close Focus Distance	1m ～ 2m (Wide ～ Tele)
	Zoom Speed	6.5 Sec (Optics, Wide ～ Tele)
Shutter Speed		1 / 3 ～ 1 / 30000 Sec
Noise Reduction		2D / 3D
Image Settings		Saturation, Brightness, Contrast, Sharpness, Gamma, etc.
Flip		Support
Exposure Model		Auto/Manual/Aperture Priority/Shutter Priority/Gain Priority
Exposure Comp		Support
WDR		Support
BLC		Support
HLC		Support
S/N Ratio		≥ 55dB（AGC Off, Weight ON）
AGC		Support
White Balance (WB)		Auto/Manual/Indoor/Outdoor/ATW/Sodium Lamp/Natural/Street Lamp/One Push
Day/Night		Auto (ICR)/Manual (Colour, B/W)
Digital Zoom		16×
Focus Model		Auto/Manual/Semi-Auto
Defog		Optical-Defog
Image Stabilisation		Electronical Image Stabilisation (EIS)
LWIR Module
Detector		Uncooled VOx microbolometer
Pixel Pitch		12μm
Array Size		640(H)×512(V)
Spectral Response		8～14μm
NETD		≤50mK
Lens		25~75mm, Continuous Zoom
FOV		17.7° ～ 5.8°
Temperature Alarm		Support
Pseudo-colour		Support white heat, black heat, fusion, rainbow, etc. 11 kinds of pseudo-colour adjustable
Video & Audio Network
Video Compression		H.265/H.264/H.264H/MJPEG
Resolution		Channel 1：Visible Main Stream：26881520 @25/30fps Channel 2：LWIR Main Stream：12801024
Video Bit Rate		32kbps ～ 16Mbps
Audio Compression		AAC / MP2L2
Storage Capabilities		TF card, up to 256GB
Network Protocols		ONVIF, HTTP, RTSP, RTP, TCP, UDP
General Events		Motion Detection, Tamper Detection, Scene Changing, Audio Detection, SD Card, Network, Illegal Access
IVS		Tripwire, Intrusion, Loitering, etc.
Video Output		Network
Audio IN/OUT		1-Ch In, 1-Ch Out
External Control		2× TTL3.3V, Compatible with VISCA and PELCO protocols
Power		DC +9 ～ +12V
Power Consumption		Avg: 6.5W, Max: 8W
Operating Conditions		-30°C～+60°C; 20﹪～ 80﹪RH
Storage Conditions		-40°C～+70°C; 20﹪～ 95﹪RH
Dimensions (Length * Width * Height: mm)		LWIR: Ø98173; Visible: 175.372.2*77.3
Weight		LWIR: 1200g; Visible: 900g
