1280×1024 30× Zoom SWIR Camera Zoom Lens Module

VS-MIZA030NIB

1.0～ 1.7μm spectral range

~510mm continuous zoom SWIR lens

1280×1024 30× Zoom SWIR Camera Zoom Lens Module

Overview Specifications Download

GET PRICING/INFO

1280×1024 30× Zoom SWIR Camera Zoom Lens Module VS-MIZA030NIB

· 1280*1024, 5μm pixel, 1.0~1.7μm band detector
· 17~510mm continuous zoom SWIR lens
· Video output up to 1280*1024 @ 60fps
· Three streams capability to meet the needs of real-time streaming and storage streaming with different bandwidths and frame rates
· Support H.265, higher encoding compression rate
· Supports intelligent analysis of tripwires, regional intrusions, etc.
· Various functions: PTZ control, intelligent alarm, customized OSD

Features

Extreme Visibility

The new generation VISHEEN zoom SWIR camera uses high sensitivity SWIR InGaAs sensor (response band range 1~1.7μm), has the ability to see clearly through fog and haze that blind conventional cameras. The camera provides round-the-clock situational awareness without disruption from challenging weather.

Long Range Coverage

The high quality SWIR enhanced lens offers 17~510, 30x optical zoom ability, which is the sweet point focal length of long range security applications like border, costal, forest wildfire, provides long range coverage over 10KM even in foggy environment.

Specifications

Camera
Sensor	Sensor type	1/2" InGaAs SWIR Sensor
	Pixel Pitch	5μm
	Resolution	1280*1024
	Response Band	0.4 ～ 1.7μm
Lens	Focal length	17 ～ 510mm
	Zoom	30x
	Aperture	F : 2.95 ～ 6.6
	FOV_H	21.32 °～ 0.72 °
	Close focus range	1m ～ 10m ( wide ~ tele)
	Zoom speed	About 7s (optical, wide ~ tele)
	Response Band	1.0~1.7μm (Wide band mode); 1.45~1.7μm (Narrow band mode)
Video & Network	Video compression	Support H.265/H.264/H.264H/MJPEG
	Resolution	Main stream H264/H265 : 12801024 @25/30 /50/60 fps LVDS output : 19201080@25/30 /50/60 fps
	Bit rate	32kbps～16Mbps
	Audio compression	AAC/MP2L2
	Storage	Support TF card storage, 256G Max
	Network protocol	Onvif, GB28181, HTTP, RTSP, RTP, TCP, UDP
	Events alarm	Motion detection, Mask alarm, storage full
	IVS	Fence crossing, tripwire intrusion, area intrusion, items left behind, rapid movement, parking detection, people gathering, item moving, loitering detection
Firmware upgrade		Product firmware upgrades can only be performed via the network interface It is recommended that LVDS users reserve network interfaces
Shutter		1 /1 ~ 1/30000 seconds
Digital noise reduction		2D/3D
Image settings		Brightness, contrast, sharpness
Image flip		support
Exposure mode		Auto/manual/ aperture priority / shutter priority
Exposure compensation		support
Automatic gain control		support
Digital zoom		16 times
Focus mode		Semi-automatic/automatic/manual/one-time auto focus
Electronic image stabilization		Support on/off
Output Interface		Network port & LVDS
Communication Interface		T TL interface, compatible with SONY VISCA protocol
Video output		Network, LVDS dual output
Baud rate		9600
Operating temperature and humidity		-30℃ ～ +60℃、20﹪ to 80﹪RH
Storage environment		-40℃～+70℃ , 20﹪ to 95﹪RH
Weight		3200g
Power supply		DC +9 ~ +12V
Power consumption		Static power consumption: 6 W, maximum power consumption: 11 W

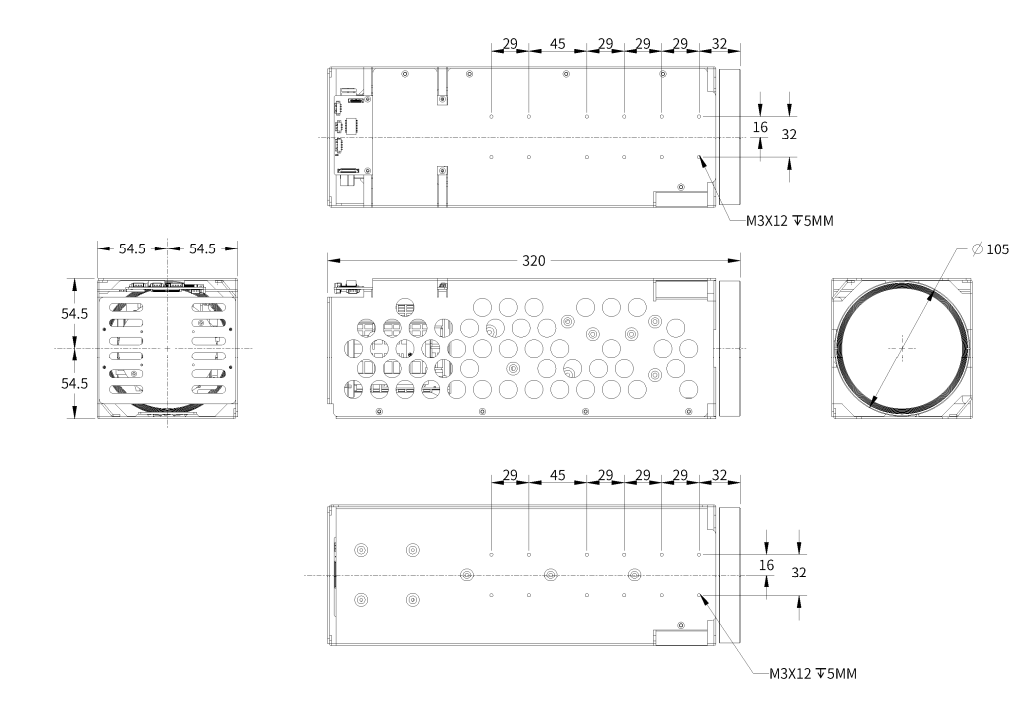

Dimensions( mm)		320109109
