2MP FHD 57x 15~850mm Zoom Ultra Long Range Low Night Full Color AI ISP Camera Module

VS-SCZ2057VIM-8

Overview Specifications Download

GET PRICING/INFO

2MP FHD 57x 15~850mm Zoom Ultra Long Range Low Night Full Color AI ISP Camera Module VS-SCZ2057VIM-8

> 1/1.8“Sony Progressive Scan CMOS

> Focal length:15~850mm, 57× Zoom FHD
> Cutting edge AI ISP
> Enhanced low light performance and various AI detections

> Supports Optical-Defog, Heat haze reduction, WDR, BLC, HLC, adaptable to multiple application scenarios.

> Clearer:Multiple pieces of aspherical optical glass, up to 1300 TV Lines, approximately 30% clearer than comparable products

> Accurate and fast autofocus: with stepper motors drive for multiple applications

> Max. Resolution: 1920×1080@30/25fps

> Min. Illumination: 0.05Lux/F2.8(colour)

> Lighter size: the length is only 32 cm and weighs only 3.1kg.

> Ease of installation: All-in-one design, plug and play.

Features

Long Range Coverage

The high quality multi-aspheric customized lens offers 15~850, 57x optical zoom ability, which is the sweet point focal length of long range security applications like border, costal, forest wildfire, provides long range coverage over 10KM*

Oversampling High Definition

Adopting 4MP QHD high performance 1/1.8" Sony Starvis CMOS for a 1080P FHD output, the camera module presents a better high quality image than normal 2MP cameras in any lighting conditions.

Enhanced Low Light Performance

The Large size 1/1.8" Starvis sensor along with the latest powerful AI ISP, provides superb low-light sensitivity. Achieving even full color monitoring at night.

AI Analytics

Adopting one of the most advanced AI ISP in industry which has up to 4Tops computing power. This AI camera module is capable of running various machine learning trained detection algorithms (human/vehicle/vessel classification etc) with excellent accuracy, reducing most of the false alert and archiving smart multi-target tracking.

A solid design for ultra long range camera solutions

Specifications

Camera
Sensor	Type	1/1.8" Sony Progressive Scan CMOS
	Total Pixels	2.16 M Pixels
Lens	Focal Length	15 ～ 850mm
	Zoom	57×
	Aperture	FNo: 2.8 ～ 8.2
	HFOV (°)	29.1° ～ 0.5°
	VFOV (°)	16.7° ～ 0.2°
	DFOV (°)	33.2° ～ 0.6°
	Close Focus Distance	1m ～ 10m (Wide ～ Tele)
	Zoom Speed	7 Sec (Optics, Wide ～ Tele)
DORI（M）	Detect	Observe	Recognize	Identify
	8800	3492	1760	880
Video & Audio Network	Compression	H.265/H.264/H.264H/MJPEG
	Resolution	Main Stream: 19201080@25/30fps Sub Stream1: D1@25/30fps; CIF@25/30fps Sub Stream2: 19201080@25/30fps; 1280720@25/30fps; D1@25/30fps LVDS: 19201080@25/30fps
	Video Bit Rate	32kbps ～ 16Mbps
	Audio Compression	AAC/MP2L2
	Storage Capabilities	TF card, up to 1Tb
	Network Protocols	ONVIF, HTTP, RTSP, RTP, TCP, UDP
	General Events	Motion Detection, Tamper Detection, Scene Changing, Audio Detection, SD Card, Network, Illegal Access
	IVS	Tripwire, Intrusion, Loitering, etc.
Upgrade		Support
Min Illumination		Colour: 0.0005Lux@ (F2.8，AGC ON)
Intelligent Functions		Person/Car/Fire/Smoke
Shutter Speed		1/1 ～ 1/30000 Sec
Noise Reduction		2D / 3D
Image Settings		Saturation, Brightness, Contrast, Sharpness, Gamma, etc.
Flip		Support
Exposure Model		Auto/Manual/Aperture Priority/Shutter Priority/Gain Priority
Exposure Comp		Support
WDR		Support
BLC		Support
HLC		Support
S/N Ratio		≥ 55dB (AGC Off, Weight ON)
AGC		Support
White Balance (WB)		Auto/Manual/Indoor/Outdoor/ATW/Sodium Lamp/Natural/Street Lamp/One Push
Day/Night		Auto (ICR)/Manual (Colour, B/W)
Digital Zoom		16×
Focus Model		Auto/Manual/Semi-Auto
Defog		Electronic-Defog / Optical-Defog
Image Stabilisation		Electronic Image Stabilisation (EIS)
External Control		2× TTL3.3V, Compatible with VISCA and PELCO protocols
Video Output		Network & LVDS
Baud Rate		9600 (Default)
Operating Conditions		-30℃ ～ +60℃; 20﹪ to 80﹪RH
Storage Conditions		-40℃ ～ +70℃; 20﹪ to 95﹪RH
Weight		3100g
Power Supply		+9 ～ +12V DC
Power Consumption		Static:4W; Max:9.5W

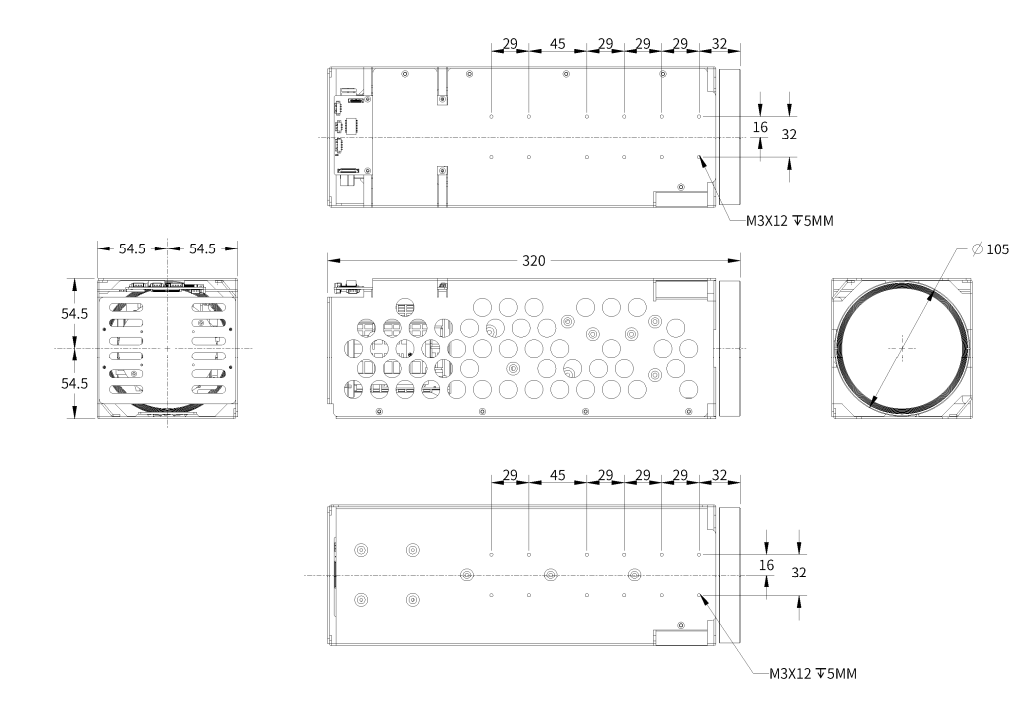

Dimensions (mm)		Length * Width * Height：320109109
Install the positive direction		The main board of the camera is facing down
