68X 6~408mm 2MP Network Long Range Zoom Camera Module
VS-SCZ2068NM-86~408mm 68x Fusion Zoom for long range surveillance
IP & LVDS dual output
>Powerful 68X zoom, 6~408mm
>Using SONY 1/1.8 inch starlight level low illumination sensor, good imaging effect
>Optical defog
>Abundant interface, convenient for PTZ control
>Good support for ONVIF
>Fast and accurate focusing
| Compared with the 1/2.8 inch 300mm camera, the picture of this 1/2 inch 300mm block camera is more delicate, and the low illumination is better. |
 |
 |
The 68x starlight zoom camera module is a high performance long range zoom block camera. Powerful 68x zoom ,6~408mm. It can provide customers with more choices between 300 mm and 500 mm for more scenes. Starlight level low illumination. |
|
Specification |
Description |
|
|
Sensor |
Image Sensor |
1/1.8" Sony CMOS |
|
Lens |
Focal Length |
6mm~408mm, 68× Optical Zoom |
|
Aperture |
F1.4~F4.6 |
|
|
Working Distance |
1m~5m (Wide-Tele) |
|
|
Field of View |
58°~1.4° |
|
|
Video & Network |
Compression |
H.265/H.264/H.264H/MJPEG |
|
Audio Codec |
ACC, MPEG2-Layer2 |
|
|
Audio In Type |
Line-In, Mic |
|
|
Sampling Frequency |
16kHz, 8kHz |
|
|
Storage Capabilities |
TF card, up to 256G |
|
|
Network Protocols |
Onvif,, HTTP, RTSP, RTP, TCP, UDP |
|
|
IVS |
Tripwire, Intrusion, Loitering Detection, etc. |
|
|
General Event |
Motion Detection, Tamper Detection, Audio Detection, No SD Card, SD Card Error, Disconnection, IP Conflict, Illegal Access |
|
|
Resolution |
50Hz: 25fps@2Mp(1920×1080); 60Hz: 30fps@2Mp(1920×1080) |
|
|
S/N Ratio |
≥55dB (AGC Off, Weight ON) |
|
|
Minimum Illumination |
Color: 0.005Lux/F1.6; B/W: 0.0005Lux/F1.6 |
|
|
EIS |
(ON/OFF) |
|
|
Optical Defog |
ON/OFF |
|
|
Exposure Compensation |
ON/OFF |
|
|
HLC |
ON/OFF |
|
|
Day/Night |
Auto(ICR)/Manual(Color,B/W) |
|
|
Zoom Speed |
8S（Optics，Wide-Tele） |
|
|
White Balance |
Auto/Manual/ATW/Outdoor/Indoor/Outdoor Auto/ Sodium Lamp Auto/Sodium Lamp |
|
|
Electronic Shutter Speed |
Auto Shutter(1/3s～1/30000s) , Manual Shutter(1/3s～1/30000s) |
|
|
Exposure |
Auto/Manual |
|
|
Noise Reduction |
2D; 3D |
|
|
Flip |
Support |
|
|
Control Interface |
2×TTL |
|
|
Focus Mode |
Auto／Manual／Semi-Auto |
|
|
Digital Zoom |
4× |
|
Operating Conditions |
-30°C~+60°C/20% to 80%RH |
|
Storage Conditions |
-40°C~+70°C/20% to 95%RH |
|
Power Supply |
DC 12V±15% (Recommend: 12V) |
|
Power Consumption |
Static Power: 4.5W; Operating Power: 5.5W |
|

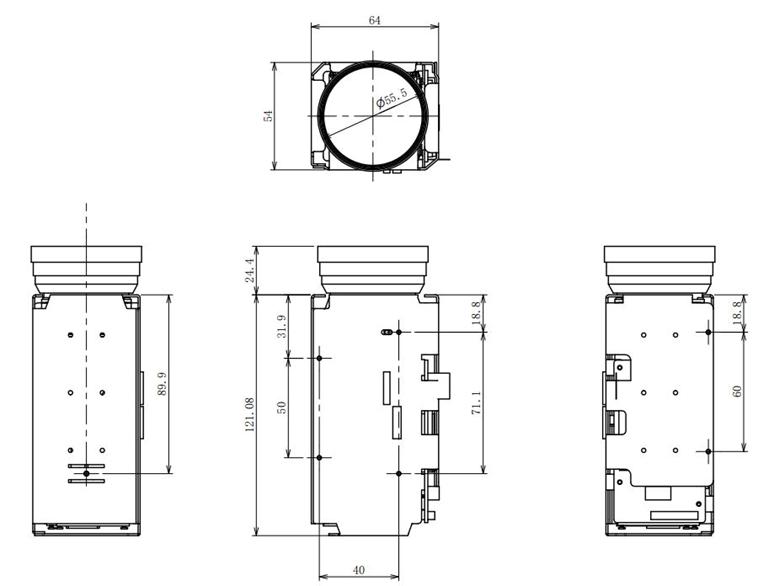

Dimensions(L*W*H) |
Approx. 175.3*72.2*77.3mm |
|
Weight |
Approx. 900g |
