4MP 52x 15~775mm Zoom Ultra Long Range OIS Full Color AI ISP IP Network Camera Module

VS-SCZ4052YIO-8

1/1.8″ 4MP Sensor

15~775mm 52x Zoom
Optical Image Stabilization
· AI ISP: AI-DNR/AI-HDR/AI-Detections
Optical Defog and Heat Haze Reduction
Lightweight and Compact Design

4MP 52x 15~775mm Zoom Ultra Long Range OIS Full Color AI ISP IP Network Camera Module

Overview Specifications Download

GET PRICING/INFO

4MP 52x 15~775mm Zoom Ultra Long Range OIS Full Color AI ISP IP Network Camera Module VS-SCZ4052YIO-8

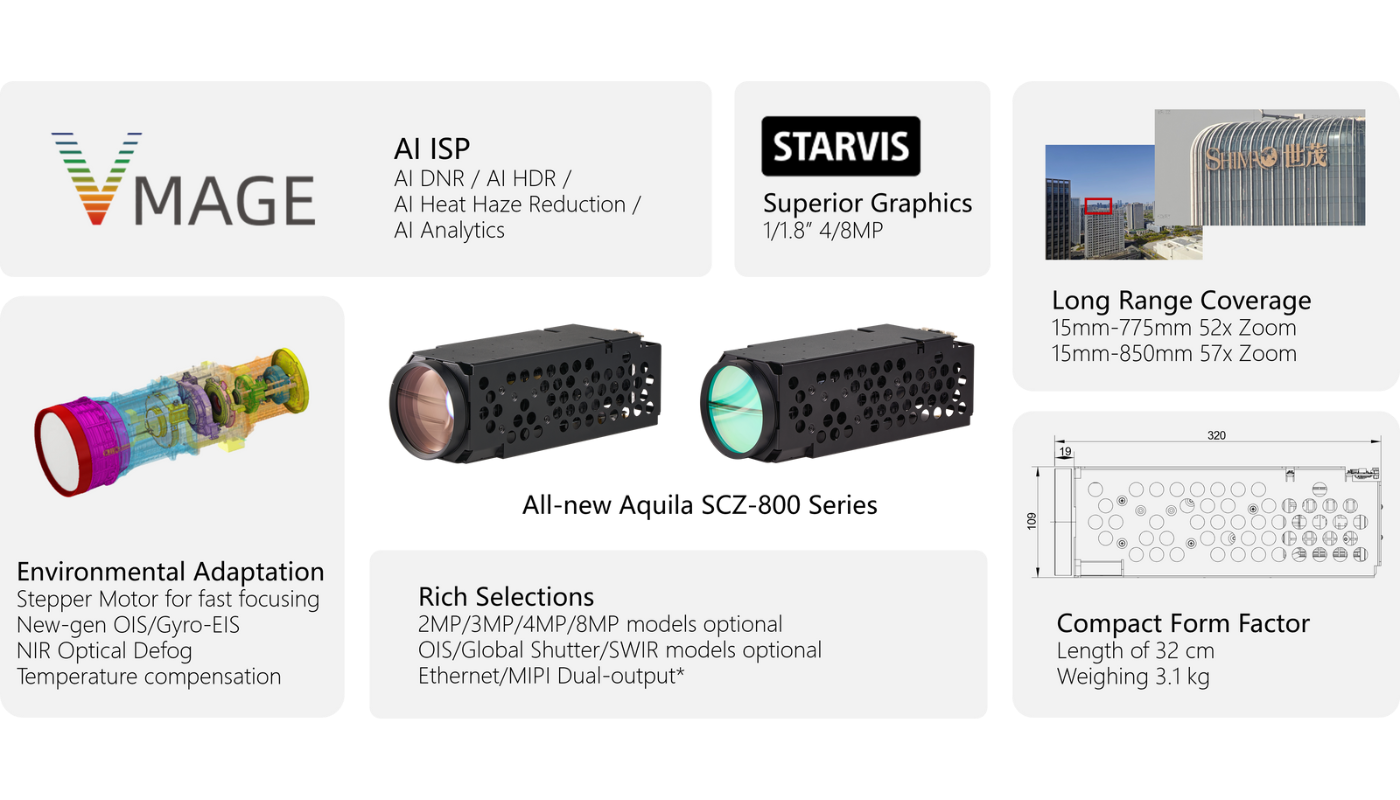

Features

Superior Graphics

Featuring a 1/1.8-inch 4/8 Megapixel Sony STARVIS sensor and the industry leading VMAGE AI ISP image processing, the all-new SCZ-800 series camera is capable of constantly delivering clear and crisp images with high dynamic range up close or at a distance, day or night.

Adaptation to Environment

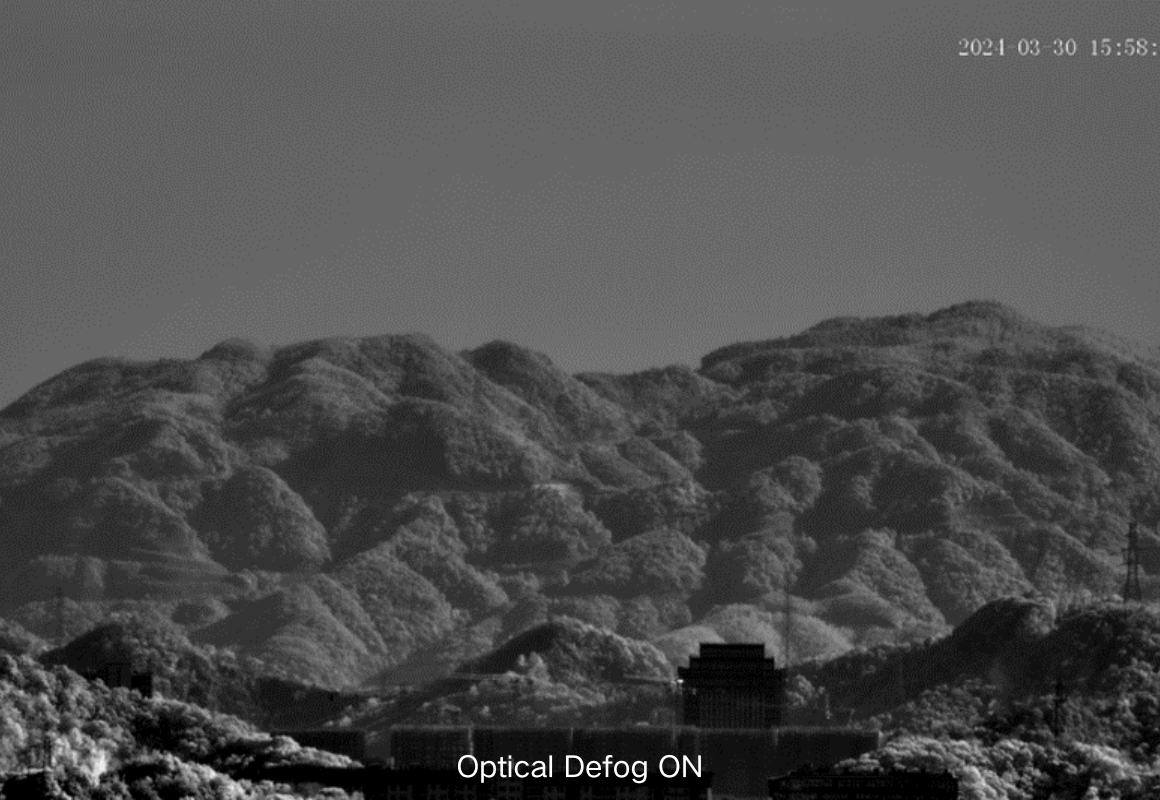

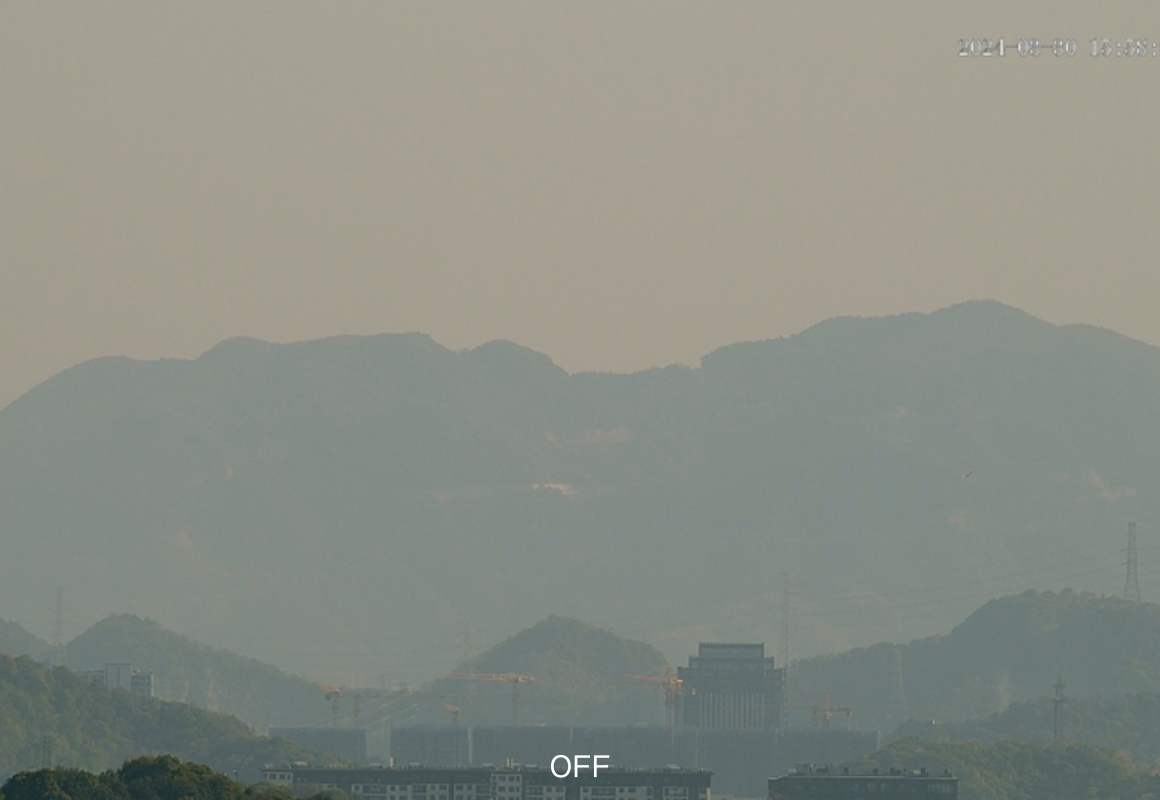

The customized elite zoom lens is designed with temperature compensation, optical defog, heat haze reduction and optional optical image stabilization, making the camera well suited for 24-hour continuous inspection, presenting excellent images even in extremely harsh environments.

Reliable Focus and Optical Stabilization

Adopting original designed stepper motor drive, the focus speed is fast and accurate. The newly developed optical image stabilization system can effectively reduce image shake, the angle at which stabilization can be performed has been increased by a factor of 1.5.

Compact but Solid

All top tier technical specs are packed in a compact but solid form factor, more than 30% lighter than competitors with similar specifications. Greatly reducing the volume and payload required, which contributes to a significant cost down of your PTZ Camera design while improving the ease of camera installation.

Long Range Coverage

The 52x optical zoom lens covers a wide range of focal lengths from the wide end of 15mm to the telephoto end of 775mm, complemented by another 16x digital zoom, easily achieving 10KM+ coverage.

AI Analytics

Adopting one of the most advanced AI ISP in industry with great computing power. This AI camera module is capable of running various machine learning trained detection algorithms with excellent accuracy, reducing most of the false alert and archiving smart multi-target tracking.

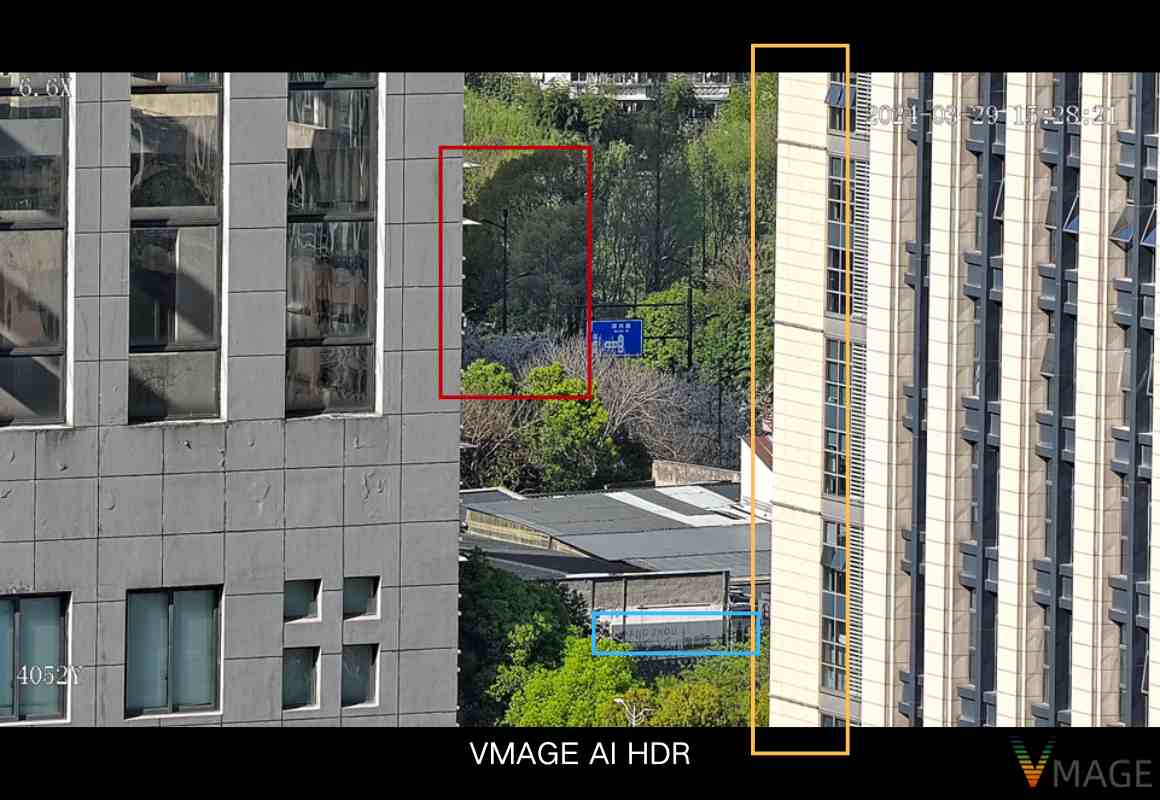

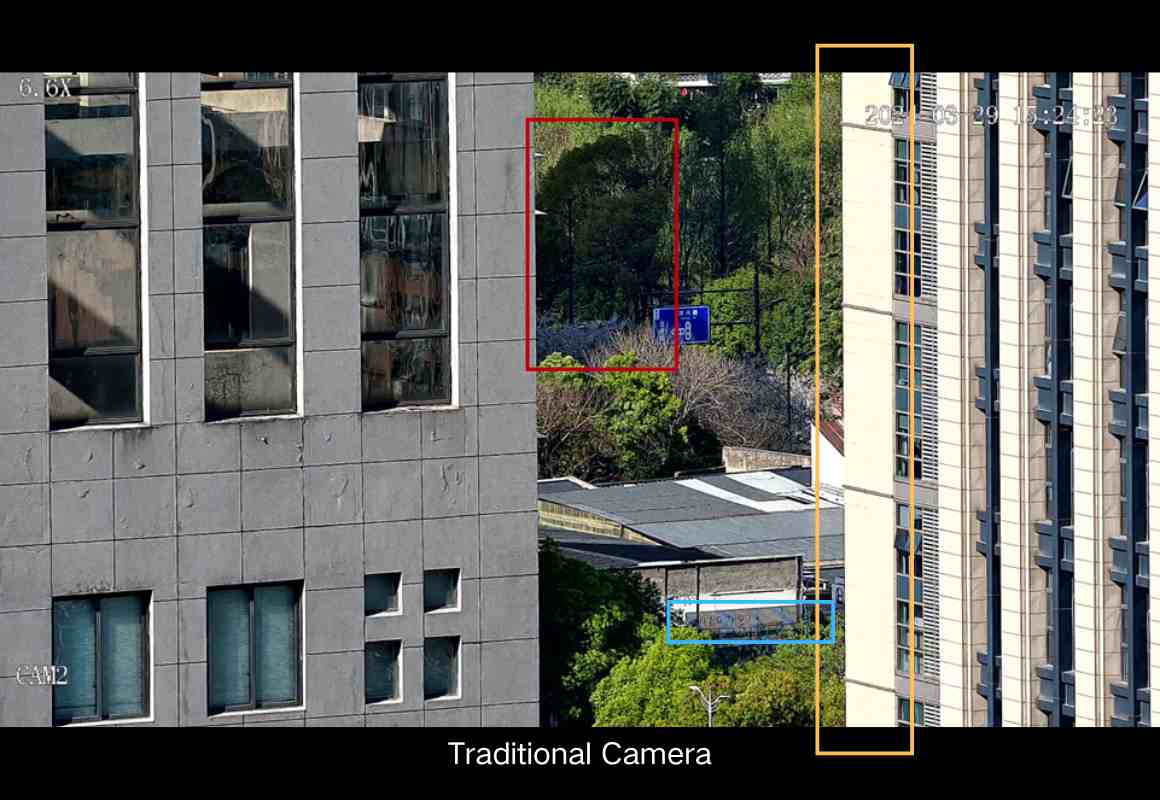

With the premium customized lens and VMAGE AI ISP, SCZ-800 series is able to deliver consistent crisp image all the way through wide end to tele end.

The newly developed optical image stabilization system can effectively reduce image shake, the angle at which stabilization can be performed has been increased by a factor of 1.5.

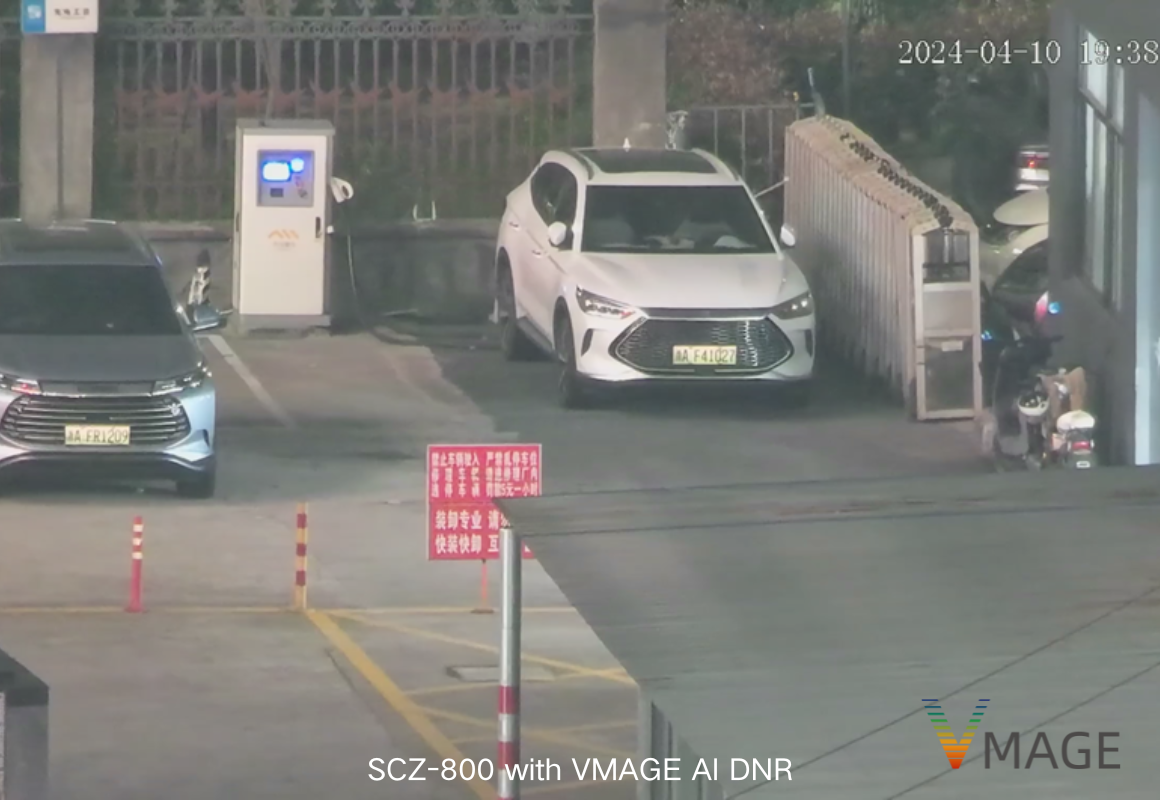

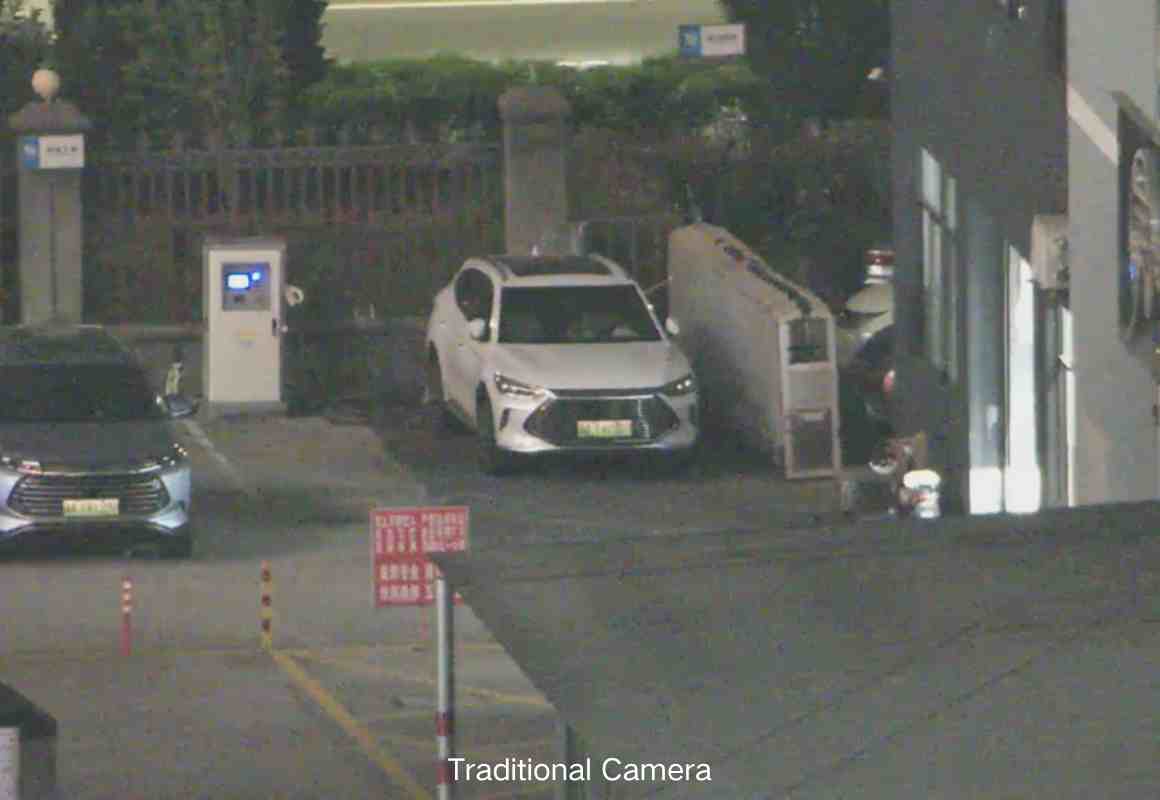

VMAGE AI DNR enhances the SNR performance by 4 times in low-light scenes, ensuring steady and clear image even in low light conditions, without affecting the performance of fast focusing.

Length of 32 cm

Weighing 3.1 kg

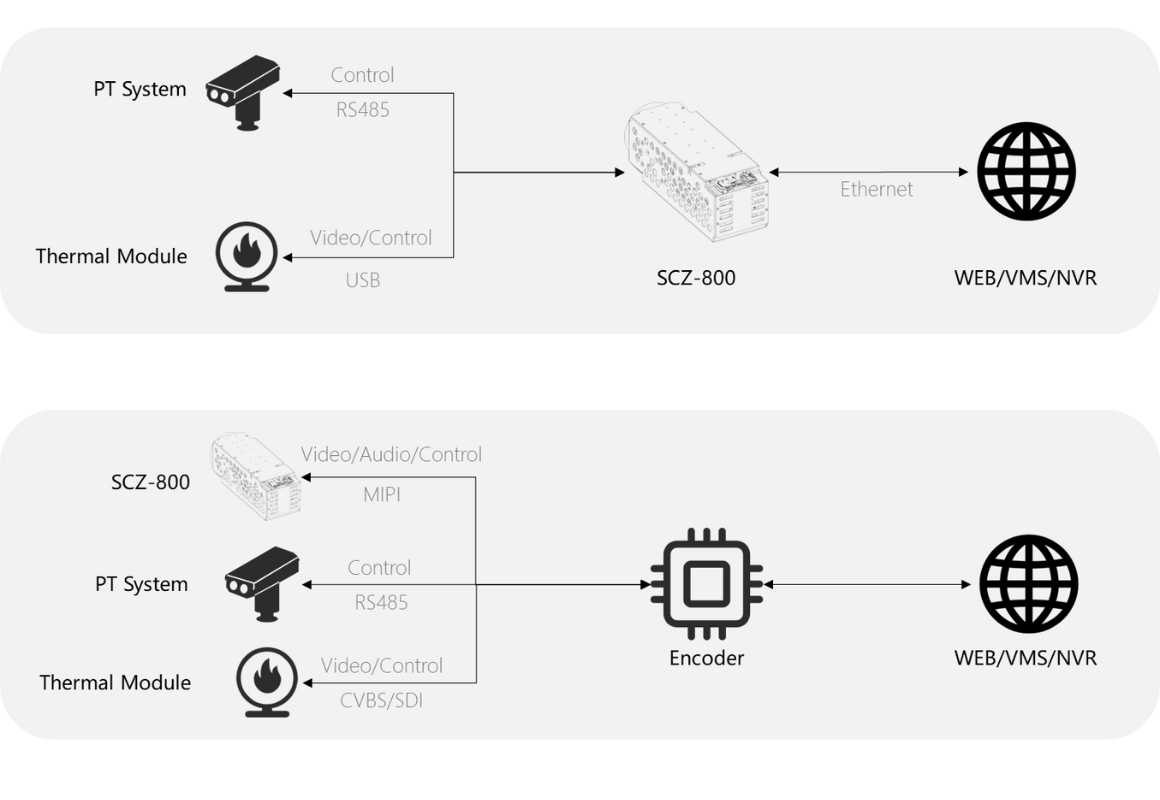

With Ethernet & MIPI dual outputs, all-new SCZ-800 series supports both network and digital integrations for different system design.

Specifications

Camera
Image Sensor	1/1.8" 4.53 M STARVIS progressive scan CMOS
Resolution	2688x1520, 4MP
S/N Ratio	≥55dB (AGC Off ,Weight ON)
Min. Illumination	Color: 0.002 lux (F2.8); Black and white: 0.002 lux (F2.8)
Shutter Speed	1/3~1/30000s
Day & Night	Automatic (ICR)/Manual
Focus Modes	Semi-automatic/Automatic/Manual/ One-time focusing
Lens
Type	Motorized zoom lens
Focal Length	15~775mm, 52x Optical, 16x Digital
Aperture	F: 2.8~8.2
Field of View(H, V, D)	Wide		29.13°(±5%)		16.72°(±5%)		33.24°(±5%)
	Tele		0.58°(±5%)		0.33°(±5%)		0.66°(±5%)
Near Focus Distance	1~10m
Zoom Speed	<7s(W~T)
DORI Ratings*	Detection	Observation		Recognition		Identification
Human (1.8 x 0.5m) \| CD: 0.95m	10155m	4030m		2031m		1016m
Vehicle (2.3 x 2.3m) \| CD: 2.3m	24586m	9756m		4917m		2459m
The DORI standard (based on the IEC EN62676-4:2015 international standard) defines different levels of detail for detection (25PPM), observation (62PPM), recognition (125PPM), and Identification (250PPM). This table is for reference only and performance may vary depending on the environment. CD: CRITICAL DIMENSION*
Video
Video Compression	H.265/H.264/H.264H/ H.264B/MJPEG
Main Stream	Network: 2880 × 1620 @ 25/30fps; MIPI : 2880 × 1620 @ 50/60fps
Sub Stream	Network: 1920 × 1080 @ 25/30fps
Bit Rate Control	CBR/VBR
Image Stabilization	OIS/EIS
Defog	Optical/Electric
Heat Haze Reduction	Support
Exposure	Auto/Manual/Aperture Priority/Shutter Priority
WDR	Support
BLC	Support
HLC	Support
White Balance	Auto/Manual/Indoor/Outdoor/ATW/Sodium Lamp/Natural/Street Lamp/One Push
AGC	Support
Noise Reduction	2D/3D/AI De-noise
Flip	Center
AF Tracking	Support
ROI Area	Support
Image Compression	JPEG, 1~7fps (2688 x 1520)
Audio
Two-way Talk	1Audio-in & 1Audio-out
Audio compression	AAC (8/16kHz), MP2L2(16kHz)
Network
Network Protocols	IPv4, IPv6, HTTP, HTTPS, TCP, UDP, RTSP, RTCP, RTP, ARP, NTP, FTP, DHCP, PPPoE, DNS, DDNS, UPnP, IGMP, ICMP, SNMP, SMTP, QoS, 802.1x, Bonjour
API	ONVIF(Profile S, Profile G, Profile T), HTTP API, SDK
Cyber Security	User authentication (ID and password), IP/MAC address filtering, HTTPS encryption, IEEE 802.1x network access control
Web Browser	IE，Edge，Firefox，Chrome
Web Languages	English/Chinese (modifiable)
OSD Overlay	Channel Title, Time Title, Preset, Temperature, Coordinates, Zoom, Test overlay, Picture overlay, Crosshair, OSD warning
User	Up to 20 users, 2 level: Administrator, User
Firmware Upgrade	Support
Storage	MicroSD/SDHC/SDXC card (Up to 1TB) edge storage, FTP, NAS
Analytics
Perimeter Protection	Line crossing, Fence crossing, Intrusion
Target Distinction	Human/Vehicle/Vessel Classification
Behavioral Detection	Object left in area, Object removal, Fast moving, Gathering, Loitering, Parking
Events Detection	Motion, Masking, Scene change, Audio detection, SD card error, Network disconnection, IP conflict, Illegal network access
Interface
Ethernet	1-ch RJ45 10M/100M
Audio Input	1-ch
Audio Output	1-ch
External Control	1 -ch TTL(3.3V) VISCA 1 -ch TTL(3.3V) PELCO
Video Output	Network & MIPI Dual output
General
Power	DC:9V~12V, typical 4.5W, max 10W
Operating Conditions	Temperature：-30℃ ~ +60℃/-22℉~140℉, Humidity：20%~80%RH
Storage Conditions	Temperature：-40℃ ~ +70℃/-40℉~158℉, Humidity：20%~95%RH
Weight	3200g
Dimensions	320×109×109mm (L×W×H)
