3MP Global Shutter IP Network 50X Long Range Zoom Camera Module
VS-SCZ3050NM-8Global Shutter
6~300mm 50x Zoom for long range surveillance
IP & LVDS dual output
> 1/1.8″ global shutter high sensitivity image sensor, Min. Illumination: 0.005 Lux (Colour).
> 50× optical zoom, Fast and accurate autofocus.
> Max. Resolution: 2048*1536@55fps.
> Supports Optical-Defog, HLC, BLC, WDR, Suitable for a wide range of applications.
> Supports ICR switching for true day/night surveillance.
> Supports independent configuration of two sets of Day/Night Profiles.
> Supports triple streams, meet the varying demands of stream bandwidth and frame rate for live preview and storage.
> Supports H.265, Higher encoding compression rate.
> Supports IVS: Tripwire, Intrusion, Loitering, etc.
> Supports ONVIF, Compatible with VMS and network devices from leading manufacturers.
> Full functions: PTZ control, Alarm, Audio, OSD.
| 1/1.8" Global Shutter, f: 6~300mm, 2048*1536@55fps, Optical-Defog, Heat Haze Reduction, Advance EIS, IP&LVDS Zoom in (50X), Enable Electronic Fogging, Optical Fogging (The building is 5-6km from the camera and the ridge behind it is about 8km from the camera)......Without optical fogging, we could not see the ridge behind the building at all. |
| Compact form factor designed to fit in various housing options. |
 |
| Camera | |||||
| Sensor | Type | 1/1.8" Sony Progressive Scan CMOS, Global Shutter | |||
| Effective Pixels | 3.19 M pixels | ||||
| Lens | Focal Length | 6～300mm | |||
| Optical Zoom | 50 × | ||||
| Aperture | FNo: 1.4 ～ 4.5 | ||||
| HFOV (°) | 60.9° ～ 1.1° | ||||
| VFOV (°) | 36.6° ～ 0.3° | ||||
| DFOV (°) | 68.0° ～ 0.6° | ||||
| Close Focus Distance | 1m ～ 5m（Wide ～ Tele） | ||||
| Zoom Speed | 6.5 Sec（Optics, Wide ～ Tele） | ||||
| DORI（M）(It is calculated based on the camera sensor specification and the criteria given by EN 62676-4:2015) | Detect | Observe | Recognize | Identify | |
| 4266 | 1693 | 853 | 426 | ||
| Video & Audio Network | Compression | H.265/H.264/H.264H/MJPEG | |||
| Resolution | Main Stream: 2048*1536@25/30fps; 1920*1080@25/30fps
Sub Stream1: D1@25/30fps; CIF@25/30fps Sub Stream2: 1920*1080@25/30fps; 1280*720@25/30fps; D1@25/30fps LVDS: 1920*1080@25/30fps |
||||
| Video Bit Rate | 32kbps ～ 16Mbps | ||||
| Audio Compression | AAC/MP2L2 | ||||
| Storage Capabilities | TF card, up to 256GB | ||||
| Network Protocols | ONVIF, HTTP, RTSP, RTP, TCP, UDP | ||||
| General Events | Motion Detection, Tamper Detection, Scene Changing, Audio Detection, SD Card, Network, Illegal Access | ||||
| IVS | Tripwire, Intrusion, Loitering, etc. | ||||
| Upgrade | Only through the network interface， | ||||
| Min Illumination | Colour: 0.005Lux/F1.4; B/W: 0.001Lux/F1.4 | ||||
| Shutter Speed | 1/1 ～ 1/30000 Sec | ||||
| Noise Reduction | 2D / 3D | ||||
| Image Settings | Saturation, Brightness, Contrast, Sharpness, Gamma, etc. | ||||
| Flip | Support | ||||
| Exposure Model | Auto/Manual/Aperture Priority/Shutter Priority/Gain Priority | ||||
| Exposure Comp | Support | ||||
| WDR | Support | ||||
| BLC | Support | ||||
| HLC | Support | ||||
| S/N Ratio | ≥ 55dB（AGC Off, Weight ON） | ||||
| AGC | Support | ||||
| White Balance (WB) | Auto/Manual/Indoor/Outdoor/ATW/Sodium Lamp/Natural/Street Lamp/One Push | ||||
| Day/Night | Auto (ICR)/Manual (Colour, B/W) | ||||
| Digital Zoom | 16× | ||||
| Focus Model | Auto/Manual/Semi-Auto | ||||
| Defog | Optical-Defog | ||||
| Image Stabilisation | Electronic Image Stabilisation (EIS) | ||||
| External Control | 2× TTL3.3V, Compatible with VISCA protocols | ||||
| Video Output | Network& LVDS | ||||
| Baud Rate | 9600 (Default) | ||||
| Operating Conditions | -30℃ ～ +60℃; 20﹪ to 80﹪RH | ||||
| Storage Conditions | -40℃ ～ +70℃; 20﹪ to 95﹪RH | ||||
| Weight | 900g | ||||
| Power Supply | +9 ～ +12V DC (Recommend: 12V) | ||||
| Power Consumption | Static: 5W; Max: 6W | ||||

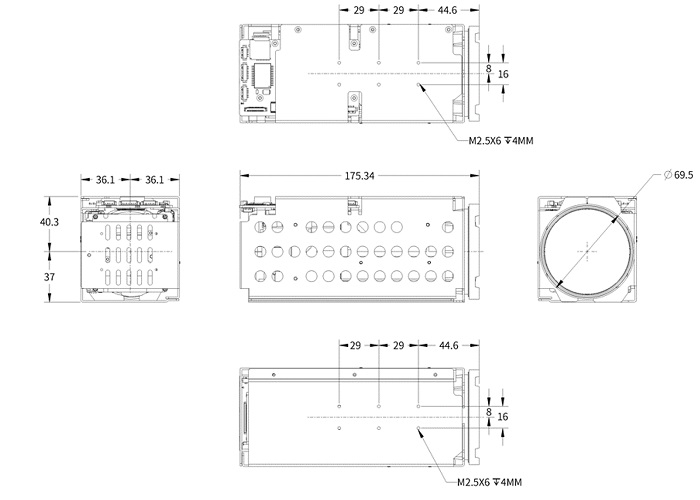

| Dimensions (mm) | Length * Width * Height：175.34*72.2*77.3 | ||||
