50X 6~300mm 4K 8MP UHD Network Long Range Zoom Block Camera Module NDAA Compliant
VS-SCZ8050M-8
1/1.8″ 8MP 4K UHD Sensor
6~300mm 50x Zoom for long range surveillance
6~300mm 50x Zoom for long range surveillance
50X 6~300mm 4K 8MP UHD Network Long Range Zoom Block Camera Module NDAA Compliant
VS-SCZ8050M-8
> 1/1.8″ high sensitivity image sensor, Min. Illumination: 0.05Lux (Colour).
>50× optical zoom, Fast and accurate autofocus.
>Max. Resolution: 3840*2160@25/30fps.
>Equipped with Sigma Star SSC339G main control chip.
>Supports Optical-Defog, HLC, BLC, WDR, Suitable for a wide range of applications.
>Supports ICR switching for true day/night surveillance.
>Supports independent configuration of two sets of Day/Night Profiles.
>Supports Triple streams, meet the varying demands of stream bandwidth and frame rate for live preview and storage.
>Supports H.265, Higher encoding compression rate.
>Supports IVS: Tripwire, Intrusion, Loitering, etc.
>Supports ONVIF, Compatible with VMS and network devices from leading manufacturers.
>Full functions: PTZ control, Alarm, Audio, OSD, etc.
Features
Long Range Coverage
With the telephoto focal length range of 300mm, the camera module is a well fit for middle to long range (over 5KM*) security applications.
4K UHD
Adopting 4K Ultra HD high performance 1/1.8" Sony Starvis CMOS, the camera module presents vivid and crisp image with high dynamic range in both tele and wide end under any lighting conditions.
Instant Focusing
Focusing speed is crucial in a fast transition (zoom operation) from wide area coverage to detailed close ups, especially for fast moving targets. With in-house Synchronized Instant Focusing algorithm, VISHEEN camera modules are able to achieve smooth and rapid zooming, avoiding missing any key moments.
NDAA Compliant
The camera module is fully compliant with the National Defense Authorization Act (NDAA), making them ideal for government and defense applications.
NDAA compliance ensures that our products are free from components and technologies that pose a security risk to the United States government. By choosing NDAA compliant camera modules, you can be confident that your systems are secure and meet the highest standards of government and defense requirements.
|
The 50x 4K starlight zoom camera module is a 6-300mm 4K block camera which equipped with 50x optical zoom lens and SONY STARVIS starlight low illumination sensor IMX334. IMX334 is the latest 8 megapixel starlight level sensor, providing high resolution and excellent illumination which is useful for industries that need intelligent analysis. |
 |
With Ultra HD (4K) video resolution,the 8050HM serial zoom camera modules deliver critical situation awareness. Exceptional field of view gives opterators the ability to seamlessly monitor key details throuhout large areas. The combination of high-performance optics and sensors, exceptional low light visible imaging, abundant hardware interfaces,fast and accurate autofocus algorithms, and effortless integration with all of major third-party VMS mankes the 8050HM serial zoom camera modules an ideal component for CCTV PTZ Cameras, Maritime Systems, Land Systems, Airborne Systemsm and so on. |
Specifications
| Camera | ||
| Sensor | Type | 1/1.8" Sony Progressive Scan CMOS |
| Effective Pixels | 8.42 M pixels | |
| Lens | Focal Length | 6 ～ 300mm |
| Optical Zoom | 50× | |
| Aperture | FNo: 1.5 ～ 4.5 | |
| HFOV (°) | 65.2° ～ 0.8° | |
| VFOV (°) | 39.5° ～ 0.4° | |
| DFOV (°) | 72.5° ～ 0.9° | |
| Close Focus Distance | 1m ～ 5m (Wide ～ Tele) | |
| Zoom Speed | 7 Sec (Optics, Wide ～ Tele) | |
| Video & Audio Network | Compression | H.265/H.264/H.264H/MJPEG |
| Video Compression | Main Stream: 3840*2160@25/30fps; 1080P@25/30fps; 720P@25/30fpsSub Stream1: D1@25/30fps; VGA@25/30fps; CIF@25/30fps
Sub Stream2: 1080P@25/30fps; 720P@25/30fps; D1@25/30fps |
|
| Video Bit Rate | 32kbps ～ 16Mbps | |
| Audio Compression | AAC/MP2L2 | |
| Storage Capabilities | TF card, up to 256GB | |
| Network Protocols | ONVIF, HTTP, RTSP, RTP, TCP, UDP | |
| General Events | Motion Detection, Tamper Detection, Scene Changing, Audio Detection, SD Card, Network, Illegal Access | |
| IVS | Tripwire, Intrusion, Loitering, etc. | |
| Upgrade | Support | |
| Min Illumination | Colour: 0.05 Lux/F1.5 | |
| Shutter Speed | 1/3 ～ 1/30000 Sec | |
| Noise Reduction | 2D / 3D | |
| Image Settings | Saturation, Brightness, Contrast, Sharpness, Gamma, etc. | |
| Flip | Support | |
| Exposure Model | Auto/Manual/Aperture Priority/Shutter Priority/Gain Priority | |
| Exposure Comp | Support | |
| WDR | Support | |
| BLC | Support | |
| HLC | Support | |
| S/N Ratio | ≥ 55dB（AGC Off, Weight ON） | |
| AGC | Support | |
| White Balance (WB) | Auto/Manual/Indoor/Outdoor/ATW/Sodium Lamp/Natural/Street Lamp/One Push | |
| Day/Night | Auto (ICR)/Manual (Colour, B/W) | |
| Digital Zoom | 16× | |
| Focus Model | Auto/Manual/Semi-Auto | |
| Defog | Optical-Defog | |
| Image Stabilisation | Electronical Image Stabilisation (EIS) | |
| External Control | 2× TTL3.3V, Compatible with VISCA and PELCO protocols | |
| Video Output | Network | |
| Baud Rate | 9600 (Default) | |
| Operating Conditions | -30℃ ～ +60℃; 20﹪ to 80﹪RH | |
| Storage Conditions | -40℃ ～ +70℃; 20﹪ to 95﹪RH | |
| Weight | 900g | |
| Power Supply | +9 ～ +12V DC (Recommend: 12V) | |
| Power Consumption | Static: 5.0W; Max: 6.0W | |

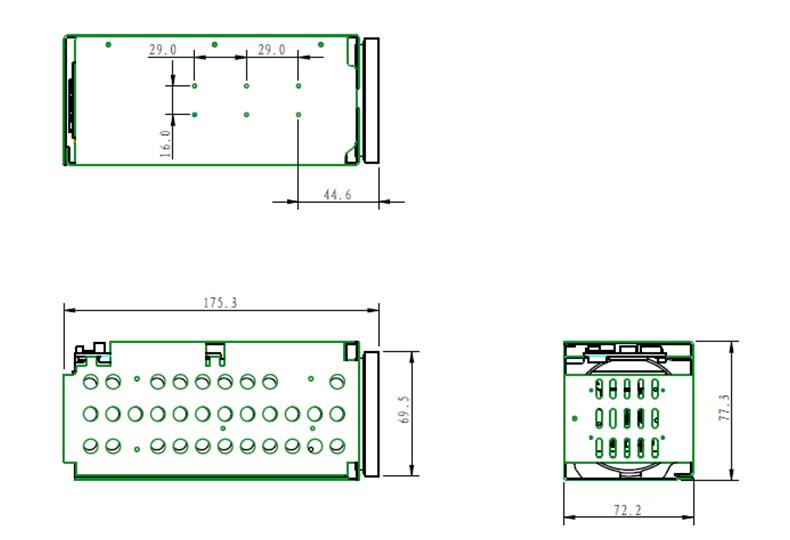

| Dimensions (mm) | Length * Width * Height：175.84*72.2*77.3 | |
