88× 3MP Global Shutter Ultra LONG-RANGE Network Zoom Camera Module
VS-SCZ3088NM-8- 1/1.8″ 3MP Sensor
2048*1536@55fps
11.3~1000mm 57x Zoom for ultra long range surveillance - Global Shutter
- H.265 Compression and IVS Support
88× 3MP Global Shutter Ultra LONG-RANGE Network Zoom Camera Module
VS-SCZ3088NM-8
-
1/1.8″ Global Shutter Sensor, Min. Illumination: 0.1Lux (Colour).
-
88x optical zoom, Focal Length:11.3 ～ 1000mm, Fast and accurate autofocus.
-
Max. Resolution: 2048*1536 @ 55fps
-
The lens adopts multiple pieces of aspherical optical glass, with good picture clarity.
-
Fast and accurate focus with stepper motors drive, longer life and high reliability.
-
Supports Optical-Defog (NIR), EIS (Electronic image stabilisation), Heat Haze Reduction, Suitable for a wide range of applications.
-
Supports ICR switching for true day/night surveillance.
-
Supports independent configuration of two sets of Day/Night Profiles.
-
Supports Triple streams, meet the varying demands of stream bandwidth and frame rate for live preview and storage.
-
Supports H.265, Higher encoding compression rate.
-
Supports IVS: Tripwire, Intrusion, Loitering, etc.
Features
Ultra Long Range Coverage
The high quality multi-aspheric customized lens offers 1000mm, 88x optical zoom and a bright F2.1 maximum aperture, makes this module the perfect choice for camera systems require more than 15KM vast area coverage
Global Shutter for Clear, Distortion-Free Images
The camera module features global shutter technology, which captures all pixels of an image at the same instant in time.
This eliminates motion blur and distortion, resulting in clear, crisp images of fast-moving objects, helps you identify and track objects of interest even in challenging conditions. Global shutter camera module is ideal for security applications such as traffic monitoring, UAV, anti-UAV, license plate recognition, access control etc.
Optical Defog
The camera module supports optical defog feature which utilises the outstanding seeing thourgh capability of NIR band, and combine it with NIR dedicated filter, significantly increase the visibility in foggy or misty scenes.
Network and LVDS Dual Outputs for Enhanced Connectivity and Flexibility
The camera module offers both network (Ethernet) and LVDS outputs, providing you with enhanced connectivity and flexibility.With network output, you can easily stream video and data over your existing network infrastructure.While the LVDS output provides a reliable and high-speed connection for local monitoring and control.
 |
 |
Specifications
| Camera | ||
| Sensor | Type | 1 / 1.8" Global Shutter CMOS Sensor |
| Effective Pixels | 3.2 Megapixels | |
| Lens | Focal Length | 11.3 ～ 1000mm |
| Optical Zoom | 88× | |
| Aperture | FNo：2.1 ～ 7.5 | |
| HFOV (°) | 34.7° ～ 0.4° | |
| VFOV (°) | 26.3° ～ 0.3° | |
| DFOV (°) | 42.6° ～ 0.5° | |
| Close Focus Distance | 5m ～ 10m (Wide ～ Tele) | |
| Zoom Speed | 8 Sec (Optics, Wide ～ Tele) | |
| Video & Audio Network | Compression | H.265/H.264/H.264H/MJPEG |
| Max. Resolution | H264/H265: 2048*1536@55fpsLVDS: 1920*1080@25fps/30fps | |
| Video Bit Rate | 32kbps ～ 16Mbps | |
| Audio Compression | AAC / MP2L2 | |
| Storage Capabilities | TF card, up to 256GB | |
| Network Protocols | ONVIF, GB28181, HTTP, RTSP, RTP, TCP, UDP | |
| General Events | Motion Detection, Tamper Detection, Scene Changing, Audio Detection, SD Card, Network, Illegal Access | |
| IVS | Tripwire, Intrusion, Loitering, etc. | |
| Upgrade | Support | |
| Min Illumination | 0.1Lux/F2.1 (Colour)； | |
| Shutter Speed | 1/3 ～ 1/30000 Sec | |
| Noise Reduction | 2D / 3D | |
| Image Settings | Saturation, Brightness, Contrast, Sharpness, Gamma, etc. | |
| Flip | Support | |
| Exposure Model | Auto/Manual/Aperture Priority/Shutter Priority/Gain Priority | |
| Exposure Comp | Support | |
| WDR | Support | |
| BLC | Support | |
| HLC | Support | |
| S/N Ratio | ≥ 55dB（AGC Off, Weight ON） | |
| AGC | Support | |
| White Balance (WB) | Auto/Manual/Indoor/Outdoor/ATW/Sodium Lamp/Natural/Street Lamp/One Push | |
| Day/Night | Auto (ICR)/Manual (Colour, B/W) | |
| Digital Zoom | 16× | |
| Focus Model | Auto/Manual/Semi-Auto | |
| Defog | Electronic-Defog / Optical-Defog | |
| Heat Haze Reduction | Support | |
| Image Stabilisation | Electronic Image Stabilisation (EIS) | |

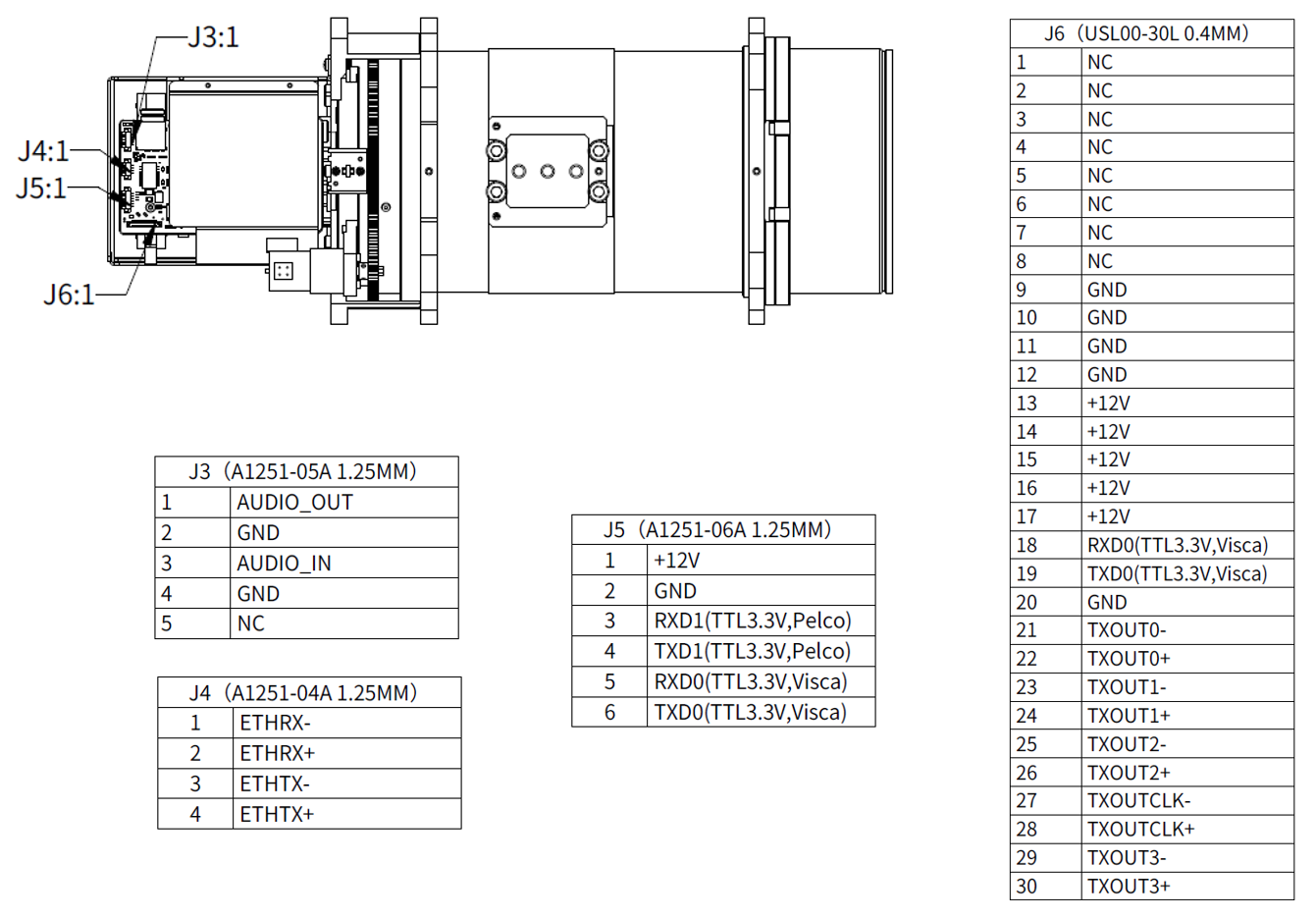

| External Control | 2× TTL3.3V, Compatible with VISCA and PELCO protocols | |
| Video Output | Network & LVDS | |
|
Baud Rate |
9600 (Default) | |
| Operating Conditions | -30℃ ～ +60℃; 20﹪ to 80﹪RH | |
| Storage Conditions | -40℃ ～ +70℃; 20﹪ to 95﹪RH | |
| Weight | 5600g | |
| Power Supply | 12V DC | |
| Power Consumption | Avg: 6.5W; Max: 8.4W | |

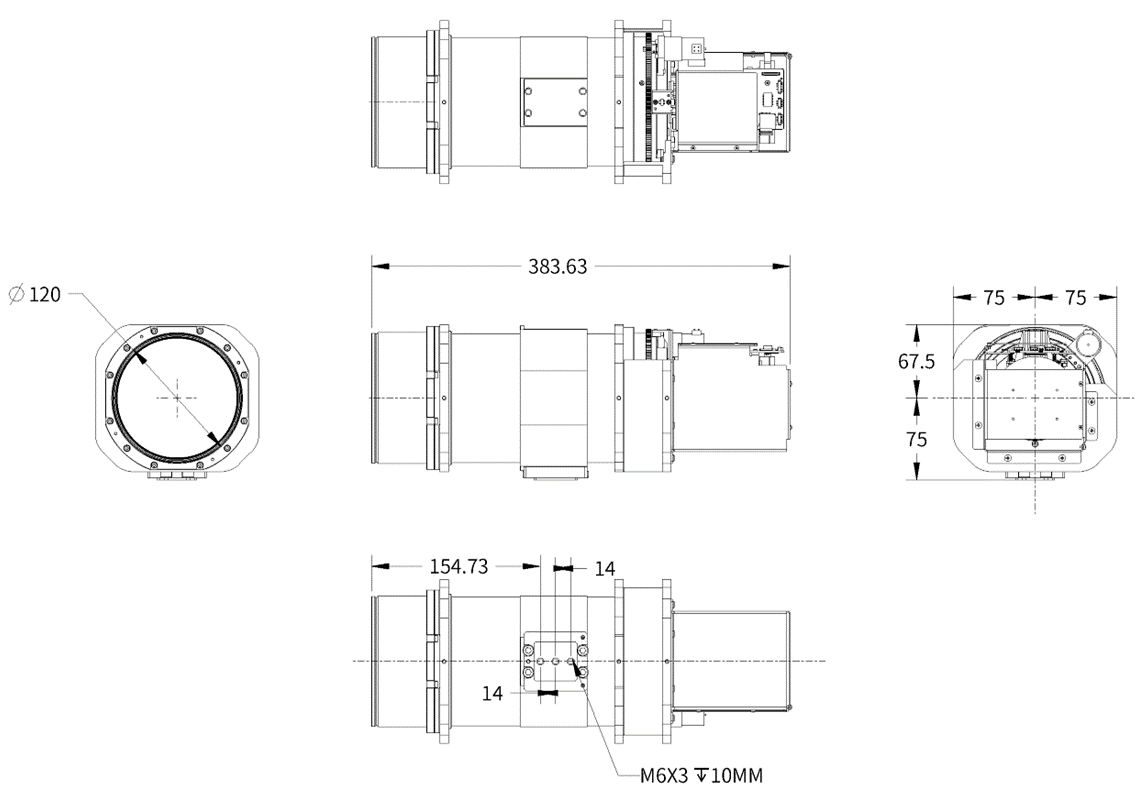

| Dimensions (mm) | 395*145*150 | |
