3.5X 4K and 640*512 Thermal Dual Sensor Drone Camera Module 

Short Description:

Visible Module:

> 1/2.3” high sensitivity Back-illuminated image sensor, Ultra HD quality.

> 3.5 × optical zoom, 3.85mm-13.4mm, Fast and accurate autofocus.

> Max. Resolution: 3840x 2160@ 25fps.

> Supports IC switching for true day/night surveillance.

> Supports Electronic-Defog, HLC, BLC, WDR, Suitable for a wide range of applications.

LWIR Module:

> Vox Image sensor, Pixel Pitch 12um, 640(H) × 512(V).

> Supports a wide range of temperature measurement rules with an accuracy of ‡3°C / ‡3%.

> Support Various pseudo-colour adjustments, image detail enhancement system functions.

Integrated Features:

> Network output, the thermal and visible camera have the same web interface and have analytics.

> Supports ONVIF, Compatible with VMS and network devices from leading manufacturers.

Module Name: VS-UAZ8003K-RT6-25

CONTACT NOW

Overview

Product Detail

Product Tags

Feedback (2)

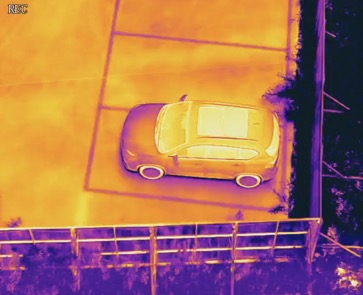

This scheme provides a lightweight dual sensor module scheme specially designed for UAV and robot . Equipped with 3.5x 4K zoom camera module and 640*480 thermal camera module, operators are no longer constrained by daylight. 3.5x 4k can provide a ultra HD image and the thermal camera can used in complete darkness, smoke and light fog.

This module support network interface. Through the network port, two RTSP video streams can be obtained.

Support – 20 ~ 800 ℃ temperature measurement. It can be used for forest fire prevention, emergency rescue, substation inspection, transmission line inspection etc

256G micro SD card supported. Two channel video can be recording as MP4 separately. We can fix incomplete video files due to power failure

Under the same bit stream, the information recorded in H265/hevc format is about 50% higher than that in H264/avc format, which can restore highly dynamic and detailed images.

Previous: 30X 6~180mm 4K Drone Zoom Camera Module

Next: 35X 6~210mm 2MP HD Digital LVDS Output Zoom Camera Module

Visible Module
Sensor	Type	1 / 2.3" Sony Starvis Progressive scan CMOS sensor
	Effective Pixels	1271 M pixels
Lens	Focal Length	f: 3.85 ～ 13.4 mm
	Optical Zoom	3.5x
	Aperture	FNo：2.4
	FOV	82° ～ 25°
	Close Focus Distance	0.1m ～ 1.5m（Wide ～ Tele）
	Zoom Speed	2.5 Sec（Optics, Wide ～ Tele）
Shutter Speed		1 / 3 ～ 1 / 30000 Sec
Noise Reduction		2D / 3D
Image Settings		Saturation, Brightness, Contrast, Sharpness, Gamma, etc.
Flip		Support
Exposure Model		Auto/Manual/Aperture/Priority/Shutter Priority/Gain Priority
Exposure Comp		Support
WDR		Support
BLC		Support
HLC		Support
S/N Ratio		≥ 55dB（AGC Off, Weight ON）
AGC		Support
White Balance		Auto/Manual/Indoor/Outdoor/ATW/Sodium Lamp/Natural/Street Lamp/One Push
Day/Night		Auto (ICR)/Manual (Color, B/W)
Digital Zoom		16×
Focus Model		Auto/Manual/Semi-Auto
Electronic-Defog		Support
Electronic Image Stabilization		Support
LWIR Module
Detector		Uncooled VOx Microbolometer
Pixel Pitch		12μm
Array Size		640*512
Spectral Response		8~14μm
NETD		≤50mK
Lens		25mm
Temperature measurement range		-20~150℃，0~550℃
Temperature measurement accuracy		±3℃ / ±3%
Temperature measurement		Support
Pseudo-colour		Support white heat, black heat, fusion, rainbow, ect. 11kinds of pseudo-colour adjustable
Video & Audio Network
Video Compression		H.265/H.264/H.264H/MJPEG
Resolution		Channel1：Visible Main Stream: H264/H265 38402160@25fps Channel 2：LWIR Main Stream：12801024@25fps
Video Bit Rate		32kbps ～ 16Mbps
Audio Compression		AAC / MP2L2
Storage Capabilities		TF card, up to 256GB
Network Protocols		ONVIF, HTTP, RTSP, RTP, TCP, UDP
General
Video output		Network
Audio IN/OUT		1-Ch In, 1 -Ch Out
Memory card		256GB Micro SD
External Control		2x TTL3.3V, Compatible with VISICA and PELCO protocol
Power		DC +9 ～ +12V
Power Consumption		Static：4.5W，Max：8W
Operating Conditions		-30°C～+60°C、20﹪ to 80﹪RH
Storage Conditions		-40°C～+70°C、20﹪to 95﹪RH
Dimensions (Length* Width*Height: mm)		Visible：553030mm Thermal：51.937.137.1mm
Weight		Visible: 55g thermal：67g
