30X 2MP and 640 Thermal Dual Sensor Drone Camera Module

>Dual sensor module

>30X zoom block camera, 4.7~141mm,fast auto focusing

>640*480 infrared imaging core, temperature measurement function

>Support HDMI and ethernet interface

>Single SOC, The architecture is simple and reliable

>Support H265 encoding.

>Supporting flight log such as longitude, latitude, height




  • Module Name: VS-UAZ2030TAM-ST6
  • Overview

    Product Detail

    Product Tags

    Dual sensor camera module specially designed for UAV.

    As the highest cost-effective dual thermal and visible sensor drone camera bi spectrum module , Equipped with 1/2.8 inch 30x 1080P HD block zoom camera and 640 thermal camera core, operators are no longer constrained by daylight. This module provides the power to see objects which is long distance away in complete darkness, smoke and light fog.

    uav drone gimbal

    This module support both network and HDMI interface . Through the network port, two RTSP video streams can be obtained. Through HDMI port, visible light, thermal imaging and picture-in-picture can be switched to each other.so no flight time is lost swapping out cameras.

    drone camera pip

    Support – 20 ~ 800 ℃ temperature measurement. It can be used for forest fire prevention, emergency rescue, etc

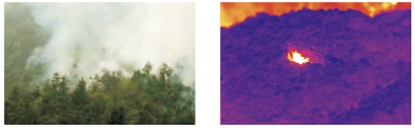

    forest fire detection thermal

    256G micro SD card supported. Two channel video can be recording as MP4 separately. We can repair the file that the camera is not fully stored when it is powered off suddenly.

    mp4 rescure method

    Support H265/HEVC encoding format which can greatly save transmission bandwidth and storage space.

    hevc



    212  Features

    > 1 Channel Thermal and Visible Video complex stream.

    > Only one Main Control Chip, more stable than double IP version modules.

    > Smart tracking on both Thermal camera (Night) and Visible camera (Day)

    > Support double video output: Network and HDMI port (Optional).

    > Support various OSD information overlay.

    > Accurate focus, high speed, great image effects, precise color reproduction, excellent night vision with low light effects.

    Visible Camera

    > 1/2.8” Sony Exmor CMOS Sensor.

    > Powerful 30× optical zoom (4.7~141mm).

    > Max. 2Mp(1920×1080) Resolution

    > Support Electronic Defog

    Thermal Camera

    > 640×480 Resolution, high sensitivity sensor

    > 17um Pixel pitch.

    > 25mm Fixed Thermal Lens (19mm Optional)

    > Supported Temperature Measurement

    212  Specification

    Model

    VS-UATZ2030TSV6

    Thermal Camera

    Sensor

    Image Sensor Uncooled Microbolometer FPA
    Resolution 640 × 480
    Pixel Size 17μm
    Spectral Range 8 ~ 14μm

    Lens

    Focal Length 25mm
    F Value 1.0
    Focus Athermalized, Focus-free
    Angle of View 24.5°×18.5° (32.0°×24.2°)

    Video Network

    Compression H.265/H.264/H.264H
    Storage Capabilities TF card, up to 256G
    Network Protocol Onvif, HTTP, RTSP, RTP, TCP, UDP
    Smart Alarm Motion Detection, Cover Alarm, Storage Full Alarm
    Resolution 50Hz: 25fps (640×480)
    Range of measurement -20~800°C,Model A: - 20~150°C,Model B: 0~800°C, Automatic Switch (default)
    Operating Conditions (-20°C~+60°C / 20% to 80%RH)
    Storage Conditions (-40°C~+65°C / 20% to 95%RH)
    Dimensions(L*W*H) Approx. 61.8mm*38mm*42mm (Included 25mm Lens)
    Weight Approx. 143g (Included 25mm Lens)
    Visible Camera

    Sensor

    Image Sensor 1/2.8" Sony Exmor CMOS
    Effective Pixels Approx. 2.16 Megapixel
    Max. Resolution 1920(H) × 1080(V)

    Lens

    Focal Length 4.7mm~141mm
    Aperture F1.5 ~ F4.0
    Close Focus Distance 1m~1.5m (Wide ~ Tale)
    Angle of View 60°~2.3°

    Video Network

    Compression H.265/H.264/H.264H
    Storage Capabilities TF card, up to 256G
    Network Protocol Onvif, HTTP, RTSP, RTP, TCP, UDP
    Resolution 50Hz: 25fps(1920×1080), 25fps(1280×720)60Hz: 30fps(1920×1080), 30fps(1280×720)
    S/N Ratio ≥55dB (AGC Off, Weight ON)
    Minimum Illumination Colors: 0.05Lux/F1.5; B/W: 0.005Lux/F1.6
    EIS ON/OFF
    E-Defog ON/OFF
    Exposure Compensation ON/OFF
    HLC ON/OFF
    Day/Night Auto/Manual
    Zoom Speed Approx. 3.0s(Optical Wide-Tele)
    White Balance Auto/Manual/ATW/Indoor/Outdoor/ Outdoor Auto/ Sodium lamp Auto / Sodium lamp
    Electronic Shutter Speed Auto Shutter (1/3s~1/30000s)Manual Shutter (1/3s~1/30000s)
    Exposure Auto/Manual
    2D Noise Reduction Support
    3D Noise Reduction Support
    Flip Support
    Communication Interface TTL × 1
    Focus Mode Auto/Manual/Semi-Auto
    Digital Zoom 4x
    Operating Conditions (-10°C~+60°C/20% to 80%RH)
    Storage Conditions (-20°C~+70°C/20% to 95%RH)
    Power Supply DC 12V±15% (Recommend: 12V)
    Power Consumption Static Power: 5W; Operating Power: 6W
    Dimensions(L*W*H) Approx. 94mm*55mm*48mm
    Weight Approx. 154g

    212  Dimension

    Thermal module (25mm lens)

    212

    Visible moduleThermal module (25mm lens)

    212
