35X 6~210mm 2MP HD Digital LVDS Output Zoom Camera Module

>35X optical zoom, 6~210mm, 4X digital zoom

>Using Sony latest 1/2 inch sensor, starlight level low illumination

>Sony LVDS interface ,VISCA protocol

>Fast and accurate focusing

Module Name: VS-SCZ2035D(-8)

Send email to us

Overview

Product Detail

Product Tags

Feedback (2)

The block camera module is based on 2MP Sony STARVIS IMX385 CMOS sensor with 3.85 µm pixel size.

SONY’s new 1/2 inch IMX385 sensor delivers high image quality even in low light conditions. Using their super high conversion gain technology, IMX385 has doubled the sensitivity compared to the IMX185. It boasts the best performance for industrial and safety applications. Its high dynamic range delivers ideal images even in varying outdoor lighting conditions.

The control is simple and compatible with VISCA protocol. If you are familiar with the control of SONY block camera, it is easy to integrate our camera.

35x optical zoom and 4x digital zoom provides the power to see objects which is long distance away. It can be widely used in video surveillance, video conference, robot and so on.

We rely upon strategic thinking, constant modernisation in all segments, technological advances and of course upon our employees that directly participate in our success for 30x zoom module, Thermal& Optical Bi Spectrum Network Camera, 50x, We welcome all of the purchasers and pals to contact us for mutual added benefits. Hope to do additional business enterprise along with you.

35X 6~210mm 2MP HD Digital LVDS Output Zoom Camera Module Detail:

Specification

Specification		Description
Camera	Image Sensor	1/2’’ Progressive Scan CMOS
	TVL	≥1100TVL
	Effective Pixels	1920×1080
	Minimum Illumination	Color：0.001Lux@F1.5; B/W：0.0001Lux@F1.5
	Gain control	Auto／Manual
	Noise Reduction	2D; 3D
	S/N Ratio	≥55dB（AGC Off，Weight ON）
	White Balance	Automatic / Manual / Tracking / Outdoor / Indoor / Outdoor automatic / Sodium Lamp Automatic / Sodium Lamp
	Electronic Shutter Speed	1/1～1/30000s
	EIS	Support
	Optical Defog	Support
	BLC	Support
	WDR	Support
	HLC	Support
	Digital Zoom	4x
	Day/Night	Auto(ICR)/Manual
	Focus Mode	Auto／Manual／Semi-Auto
	Operating Conditions	（-20°C～+60°C/20﹪ to 80﹪RH）
	Storage Conditions	（-30°C～+70°C/20﹪to 95﹪RH）
	Power Supply	+9 ~ +12V DC (Recommended: 12V)
	Power Consumption	Static Power consumption: 3.5W, Operation Power Consumption: 4.5W
	Dimensions	Length * Width * Height：126.25468
	Weight	410g
Lens	Focal Length	6mm～210mm,35x
	Aperture	F1.5～F4.8
	Angle of View	Horizontal:61.2°～2.0°
	Working Distance	0.1m～1.5m（Wide～Tele）
	Zoom Speed	3.8s（Wide-Tele）

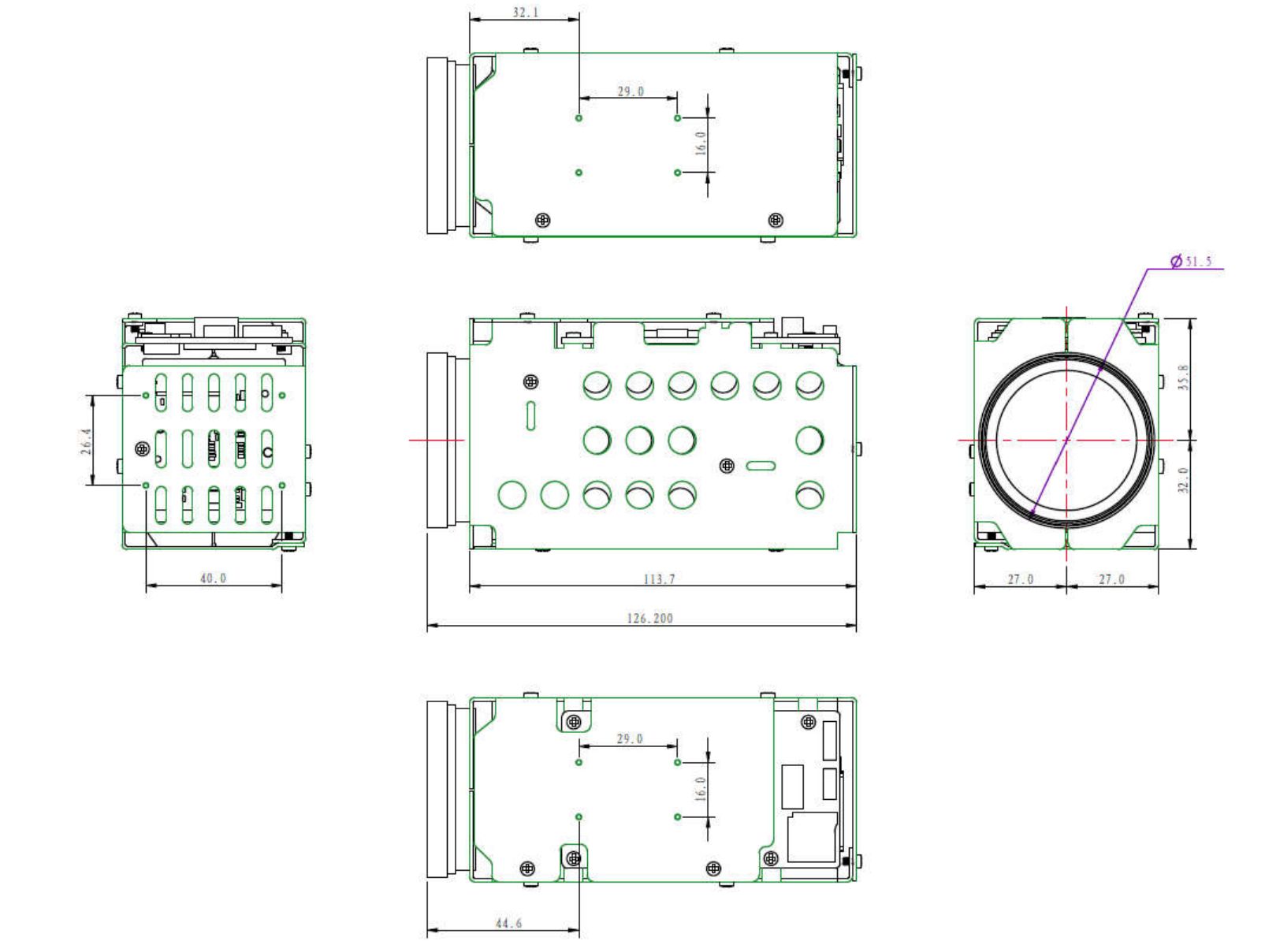

Dimensions

Product detail pictures:
