Bi-Spectrum Temperature Measurement Network Dome Camera

> Uncool Vox Image Detector, Pixel Pitch 12μm, 640(H) × 512(V).

> 25mm Athermalized lens.

> 1/2” 2.13MP Sony CMOS sensor

> 35× optical zoom (f: 6~210mm), fast and accurate autofocus.

> Movement Range: Pan: 360° (Continuous Rotate); Tilt: -5°~90°.

> Supports a wide range of temperature measurement rules with an accuracy of ±3°C / ±3%.

> Support Various pseudo-colour adjustments, image detail enhancement system functions.

> Network output, the thermal and visible camera have the same web interface and have analytics.

> Supports ONVIF, Compatible with VMS and network devices from leading manufacturers.


  • Module Name: VS-SDZ2035N-RT6
  • Product Detail

    Product Tags

    212  Overview

    Viewsheen Thermal Temperature Measurement Dome Cameras offer the monitoring and temperature measurement capabilities for 24*7 hours surveillance.



    24-hour Safety Protection

    Viewsheen's Bi Spectrum Thermal Dome Camera use thermal imaging, which allows users to detect objects and incidents 24 hours a day, seven days a week, from pitch dark areas to a sunlit parking lot. This makes it possible to acknowledge suspect activity already before intrusion, and to visually verify what is going on before taking relevant action.

    optical thermal
    dual sensor thermal camera

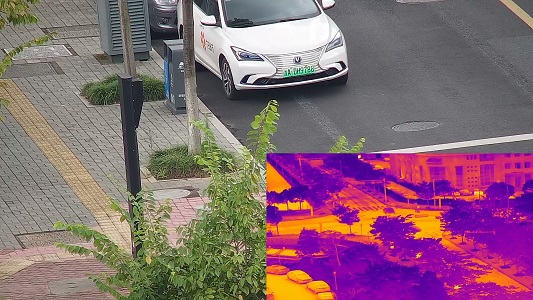

    Single IP Dual Channel

    Simultaneous output of 2-channel video with single IP address. Compared with dual IP devices, the scheme is simpler and more reliable



    Temperature Measurement

    The application of infrared thermal image camera can effectively detect the hidden dangers related to operating voltage and load current. More importantly, the specific parts of internal faults can be accurately judged through thermal image distribution, so as to eliminate the hidden danger of accidents in the bud, reduce repair costs and avoid major losses caused by accidents, which can not be replaced by any other detection means.

    Our network thermal imager supports four types of temperature measurement rules: point, line, area and global  and 2 temperature alarm: over temperature alarm, temperature difference alarm.

    emperature Measurement Thermal

    3D Positioning

    Using 3D positioning, you can locate the target conveniently and quickly. Drag the mouse to the lower right corner to zoom in; Drag the mouse to the box in the upper left corner to zoom out the lens. improve work efficiency.

    ai thermal  intelligent analysis ivs

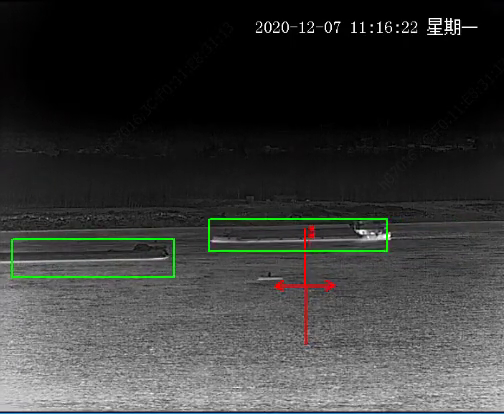

    Advanced Intelligent Analysis (IVS)

    Multiple detection modes provide advanced intelligent video analysis for thermal imaging network camera, realize comprehensive monitoring function and respond to different monitoring scenes faster.

    IP66 Waterproof Grade

    Supporting IP66-rated waterproof grade, the camera is well protected against adverse impact to ensure the performance.

    ip66-stand

    212  Specification

    Visible Module
    Sensor Type 1/2" Sony Progressive scan CMOS sensor
    Effective Pixels 2.13MP
    Max. Resolution 1920*1080 @ 25/30fps
    Min. Illumination Colour: 0.001Lux @ F1.5; Black & White: 0.0001Lux @ F1.5
    AGC Support
    S/N Ratio ≥ 55dB(AGC Off, Weight ON)
    White Balance (WB) Auto/Manual/Indoor/Outdoor/ATW/Sodium Lamp/
    Noise Reduction 2D / 3D
    Image Stabilisation Electronical Image Stabilisation (EIS)
    Defog Electronic-Defog
    WDR Support
    BLC Support
    HLC Support
    Shutter Speed 1/3 ~ 1/30000 Sec
    Digital Zoom
    Day/Night Auto (ICR)/Manual (Colour, B/W)
    Focal Length 6 ~ 210mm
    Optical Zoom 35×
    Aperture FNo: 1.5 ~ 4.8
    HFOV (°) 61.9° ~ 1.9°
    LWIR Module
    Detector Uncooled VOx microbolometer
    Pixel Pitch 12μm
    Array Size 640(H)×512(V)
    Spectral Response 8~14μm
    Lens 25mm, F1.0, Athermalized
    FOV (H×V) 25°*20°
    Pseudo-Colour Support white heat, black heat, fusion, rainbow, etc. 11 kinds of pseudo-colour adjustable
    Temperature Measurement Range Low temperature mode: -20℃ ~ 150℃ (-4℉ ~ 302℉)

    High temperature mode: 0℃ ~ 550℃ (32℉ ~ 1022 ℉)

    Temperature Measurement Accuracy ±3℃ / ±3%
    Temperature Measurement Methods 1. Support real-time point temperature measurement function.

    2. each pre-set point can be set: point temperature measurement: 12; area temperature measurement: 12; line temperature measurement: 12; support for each pre-set point (point + area + line) up to 12 simultaneous temperature measurement, area support for circular, square and irregular polygon (not less than 7 bending points).

    3. Support temperature alarm function.

    4. Support isothermal line, colour bar display function, support temperature correction function.

    5. The unit of temperature measurement Fahrenheit, Celsius can be set.

    6. Support real-time temperature analysis, historical temperature information query function.

    Network
    Storage Capabilities TF card, up to 256GB
    Network Protocols ONVIF, HTTP, RTSP, RTP, TCP, UDP
    Video Compression H.265/H.264/H.264H/MJPEG
    Pan-tilt Unit
    Movement Range Pan: 360° (Continuous Rotate) ;Tilt: -5° ~ 90°
    Pan Speed 0.1°-150°/Sec
    Tilt Speed 0.1°-80°/ Sec
    Presets 255
    Tour 8, Up to 32 Presets Per Tour
    Auto Scan 5
    Power Off Memory Support
    General
    Power Supply 24V AC / 3A
    Communication Interface RJ45; 10M/100M Ethernet interface.
    Audio In/Out 1 – Channel in / 1 – Channel out
    Alarm In/Out 1 – Channel in / 1 – Channel out
    RS485 PELCO-P / PELCO-D
    Power Consumption 20W
    Operating Temperature and Humidity -30℃ ~ 60℃; Humidity: ≤90%
    Protection Level IP66; TVS 6000
    Dimension (mm) Φ353*237
    Weight 8 kg
