NDAA 640×512 Thermal Network Hybrid Bullet Camera

> The latest generation of 12μm uncooled VOx detectors and advanced infrared image signal processing algorithms for clearer imaging.

> Dual spectral acquisition of visible and infrared, 2-channel video from 1 IP output and presented in the same WEB interface.

> Support IVS: Tripwire, Intrusion, Loitering, etc.

> Support for professional temperature analysis functions and fire point detection algorithms.

> Support multiple event linkage alarms and sound & light alarm.

> IP67 for all-weather, all-day video surveillance.

> Support ONVIF, Compatible with VMS and network devices from leading manufacturers.




  • Module Name: VS-IPC5012M-M6025
  • Product Detail

    Product Tags

    Related Video

    Feedback (2)

    With our leading technology at the same time as our spirit of innovation,mutual cooperation, benefits and growth, we're going to build a prosperous future together with your esteemed firm for Drones With Optical Zoom, Zoom Module, 68x Zoom Camera Module, Besides, our company sticks to high quality and reasonable price, and we also offer good OEM services to many famous brands.
    NDAA 640×512 Thermal Network Hybrid Bullet Camera Detail:

    212  Overview

    Viewsheen Thermal Imaging Cameras offer the monitoring and temperature measurement capabilities and reliable algorithms for detecting people and objects in 24/7 surveillance.



    7*24 Hours Detecion

    From the dark night to the sunny afternoon, using thermal imaging technology and network intelligent rules, network thermal imaging camera. It can provide users with high-performance video monitoring, intrusion alarm and event upload 24 hours a day, 7 days a week.

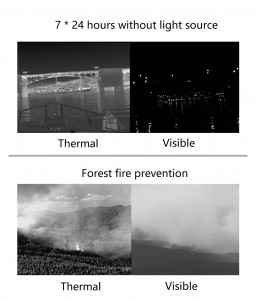

    optical thermal

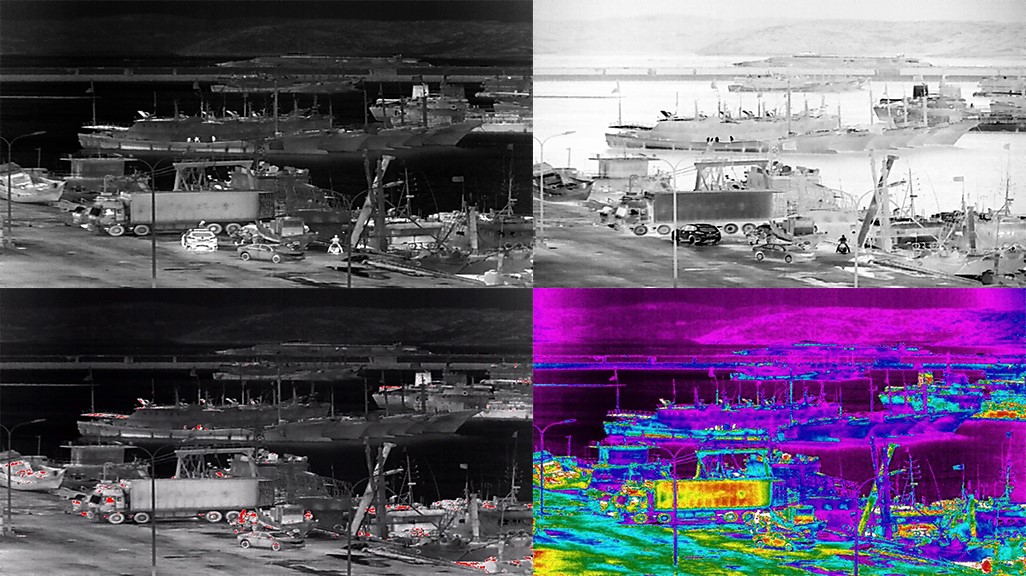

    thermal pseudo color

    Pseudo-color Modes

    As the basic image enhancement processing technology, pseudo color enhancement technology is to convert gray image into pseudo color image, or convert the original natural color image into image with given color distribution. There are 17 modes of pseudo color available: black heat, white heat, rainbow, iron red, etc.

    Temperature Measurement

    The application of infrared thermal image camera can effectively detect the hidden dangers related to operating voltage and load current. More importantly, the specific parts of internal faults can be accurately judged through thermal image distribution, so as to eliminate the hidden danger of accidents in the bud, reduce repair costs and avoid major losses caused by accidents, which can not be replaced by any other detection means.

    Our network thermal imager supports four types of temperature measurement rules: point, line, area and global.
    Temperature detection range: (1st : - 20 ℃ ~ + 150 ℃) (2nd : 0 ℃ ~ + 550 ℃)

    emperature Measurement Thermal

    212  Specification

    Visible
    Sensor Type 1/2.8" Progressive Scan CMOS
    Pixel 5MP pixels
    Max. Resolution 2560×1920
    Lens Focal length 4mm 6mm 6mm 12mm
    Type Fixed
    FOV 65°×50° 46°×35° 46°×35° 24°×18°
    Min. Illumination 0.005Lux @(F1.2,AGC ON) ,0 Lux with IR
    Noise Reduction 2D / 3D
    Image Settings Brightness, Contrast, Sharpness, Gamma, etc.
    Image Flip Support
    Exposure Model Auto/Manual/Aperture Priority/Shutter Priority
    Exposure Comp Support
    WDR Support
    BLC Support
    HLC Support
    S/N Ratio ≥ 55dB(AGC Off, Weight ON)
    AGC Support
    White Balance (WB) Auto/Manual/Indoor/Outdoor
    Day/Night Auto (ICR)/Manual (Colour, B/W)
    Smart Supplement Light Infra-red light, up to 40m
    Thermal
    Detector Type Uncooled Vox Focal Plane Arrays
    Pixel Interval 12μm
    Resolution 640*512
    Response band 8~14μm
    NETD ≤40mK
    Focal Length 9.1mm 13mm 19mm 25mm
    Lens Type Athermalization
    Aperture F1.0
    FOV (H×V) 48°×38° 33°×26° 22°×18° 17°×14°
    IFOV 1.32mrad 0.92mrad 0.63mrad 0.48mrad
    Temperature Measurement accuracy -20~550℃ (-4~1022℉)
    Temperature Measurement Range ±2℃ or ±2% (Take the larger value)
    Temperature Measurement Rules Supports global, point, line and area temperature measurement rules and linked alarms
    Global Temperature Measurement Support Heat Map
    Temperature Alarm Support
    Pseudo-colour Black heat/white heat/rainbow and other pseudo-colours available
    Network coding and alarms
    Compression H.265/H.264/H.264H/MJPEG
    Resolution Channel 1:Visible Main Stream: 2560×1920, 2560×1440, 1920×1080, 1280×720@25/30fps

    Channel 2:Thermal Main Stream: 1280×1024, 1024×768@25fps

    Video Bit Rate 32kbps ~ 16Mbps
    Audio Compression AAC / MP2L2
    Storage Capabilities TF card, up to 256GB
    Network Protocols Onvif, HTTP, RTSP, RTP, TCP, UDP
    Voice Intercom Support
    General Events Motion Detection, Tamper Detection, Scene Changing, Audio Detection, SD Card, Network, Illegal Access
    Alarm Actions Recording / Snapshot / Email / Alarm-out/ Sound & light alarm
    IVS Tripwire, Intrusion, Loitering, etc.
    General
    Video Output IP
    Audio In/Out 1-Ch in, 1-Ch out
    Alarm In 2-Ch, DC 0~5V Alarm In
    Alarm Out 2-Ch, Normal Open relay output
    Reset Support
    Communication Interface RS485
    Power +9 ~ +12V DC & POE(802.3at)
    Power Consumption ≤8W
    Operating Temperature and Humidity -40°C~+70°C; ≤95﹪RH
    Dimension(L*W*H) 319.5×121.5×103.6mm
    Weight(g) ≤1800
