35X 2MP Starlight 800M Laser IR PTZ Dome Camera

> 1/2 ” progressive scan CMOS.

> 35×Optical Zoom (f:6 ~210mm), Accurate and fast autofocus.

> Max. Resolution: 1920×1080 @ 25/30fps.

> Excellent low-light performance, Min. Illumination: 0.001 Lux / F1.5 (Colour).

> Supports H.265, Higher encoding compression rate.

> Expansive night view with up to 800 m laser distance.

> Supports laser synchronization with zoom.

> Supports IVS: Tripwire, Intrusion, Loitering, etc.

> Movement Range: Pan: 360° (Continuous Rotate); Tilt: -10° ~ 90°.

> Highly wear resistant, high rotational life conductive slip ring and rotating mechanism.

> Supports ONVIF, Compatible with VMS and network devices from leading manufacturers.

> IP 66, TVS 6000V.


  • Module Name: VS-SDZ2035N-L8
  • Product Detail

    Product Tags

    212  Overview

    Featuring a True Day/Night, 2-megapixel resolution, Dome PTZ camera with a 35x optical zoom lens, this series provides an allin-one solution for capturing long distance video surveillance for outdoor applications.

    Together with its infrared illumination and Starlight Technology, the camera is the perfect solution for dark,lowlight applications.

    The series combines a day/night mechanical IRcut filter for the highest image quality for variable lighting conditions during the day and True WDR for applications with direct sunlight or glare.

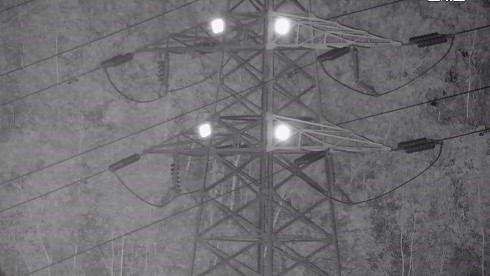

    Laser Following Technology

    With the zoom of the visible lens, the laser synchronously follows the zoom, so that the image can obtain uniform brightness at any magnification.

    laser ptz camera
    starlight camera

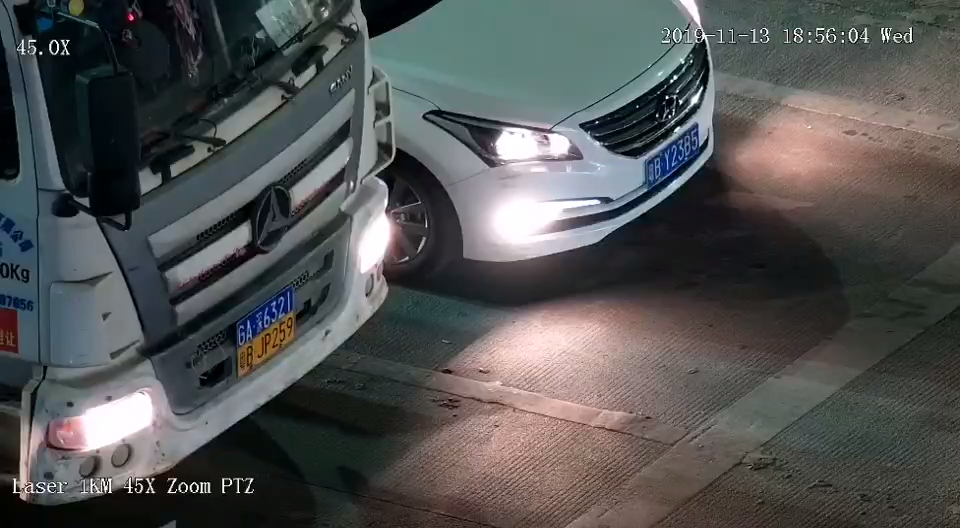

    Starlight Technology

    Featuring ViewSheen's Starlight Technology, this camera is ideal for applications with challenging lighting conditions. Its low-light performance delivers usable video with minimal ambient light. Even in extreme low-light conditions, Starlight Technology is capable of delivering color images in near complete darkness .

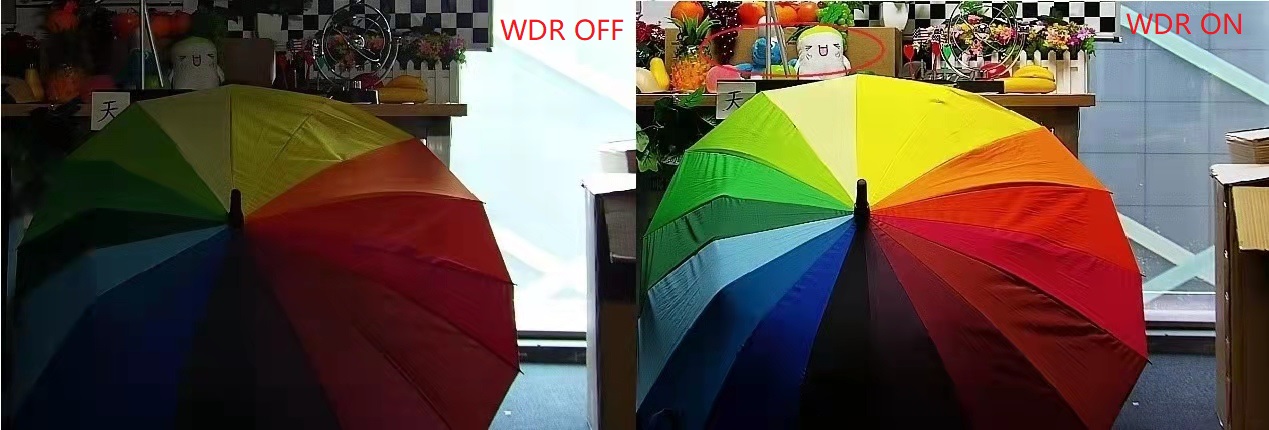

    WDR

    The use of wide dynamic technology makes the equipment have excellent image performance in both forward and backward scenes.

    WDR Camera

    3D Positioning

    Using 3D positioning, you can locate the target conveniently and quickly. Drag the mouse to the lower right corner to zoom in; Drag the mouse to the box in the upper left corner to zoom out the lens. improve work efficiency.

    ivs camera

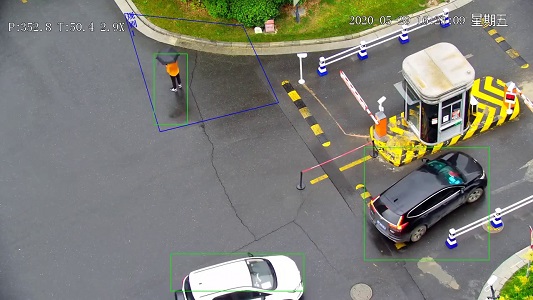

    Advanced Intelligent Analysis (IVS)

    Multiple detection modes provide advanced intelligent video analysis for thermal imaging network camera, realize comprehensive monitoring function and respond to different monitoring scenes faster.

    IP66 Waterproof

    IP66 waterproof, which can make the equipment work in harsh outdoor environment.

    ip66-stand

    212  Specification

    Camera
    Sensor Type 1/2 " progressive scan CMOS
    Effective Pixels 2.13MP
    Max. Resolution 1920*1080 @ 25/30fps
    Min. Illumination Colour: 0.001Lux @ F1.5; Black & White: 0.0001Lux @ F1.5
    AGC Support
    S/N Ratio ≥ 55dB(AGC Off, Weight ON)
    White Balance (WB) Auto/Manual/Indoor/Outdoor/ATW/Sodium Lamp/
    Noise Reduction 2D / 3D
    Image Stabilisation Electronical Image Stabilisation (EIS)
    Defog Electronic-Defog
    WDR Support
    BLC Support
    HLC Support
    Shutter Speed 1/3 ~ 1/30000 Sec
    Digital Zoom
    Day/Night Auto (ICR)/Manual (Colour, B/W)
    Focal Length 6 ~ 210mm
    Optical Zoom 35×
    Aperture FNo: 1.5 ~ 4.8
    HFOV (°) 61.9° ~ 1.9°
    Laser Illuminator
    Effective Distance Up to 800m
    Laser Synchronization with Zoom Support
    Illumination Angle Tele: 2.0°; Effective Distance>800m
    Wide: 70°; Effective Distance>80m
    Network
    Storage Capabilities MicroSD,Max. 256G (Recommended class10)
    Network Protocols ONVIF, HTTP, RTSP, RTP, TCP, UDP
    Compression H.265/H.264/H.264H/MJPEG
    Pan-tilt Unit
    Movement Range Pan: 360° (Continuous Rotate) ;Tilt: -10° ~ 90°
    Pan Speed 0.1°-150°/Sec
    Tilt Speed 0.1°-80°/ Sec
    Presets 255
    Tour 8, Up to 32 Presets Per Tour
    Auto Scan 5
    Power Off Memory Support
    General
    Power Supply 24V AC / 3A
    Communication Interface RJ45; 10M/100M Ethernet interface.
    Audio In/Out 1 – Channel in / 1 – Channel out
    Alarm In/Out 1 – Channel in / 1 – Channel out
    RS485 PELCO-P / PELCO-D
    Power Consumption 20W / 30W (Laser on)
    Operating Temperature and Humidity -30℃ ~ 60℃; Humidity: ≤90%
    Protection Level IP66; TVS 6000
    Dimension (mm) Φ353*237
    Weight 8 kg
