3.5X 3.85~13.4mm Mini 12MP Zoom NDAA Camera Module

Short Description:

> 1/2.3”high sensitivity Back-illuminated image sensor, Ultra HD quality.

> 3.5 × optical zoom, 3.85mm-13.4mm, No distortion, auto focus, fast and accurate focusing.

> Max. Resolution: 4000 x 3000 @ 10fps.

> Support Smart Tracking.

> Supports Electronic-Defog, HLC, BLC, WDR, Suitable for a wide range of applications.

> Supports ICR switching for true day/night surveillance.

> Supports H.265, Higher encoding compression rate.

> Supports triple streams, meet the varying demands of stream bandwidth and frame rate for live preview and storage.

> Supports H.265, Higher encoding compression rate.

> Supports ONVIF, Compatible with VMS and network devices from leading manufacturers.

> Full functions:Snapshot, Flight log, GPS information logging, etc.


  • Module Name: VS-UAZ8003K

    Overview

    Product Detail

    Product Tags

    Related Video

    Feedback (2)

    212  Video

    212  Overview

    This 3.5x 3.85~13.4mm zoom camera module adopts an 12 megapixel 1/ 2.3 '' sensor and a 3.5x optical zoom lens.

    Its ultra-high pixels and small volume provide an integrated solution for short-range ultra-high definition video monitoring.

    The camera adopts excellent image processing technology to obtain ultra-high image quality.

    Compact Dimenstions

    Thanks to the excellent structural design, the size of the whole camera module is limited to 64.1 * 41.6 * 50.6 (mm), and the weight is limited to 55g.

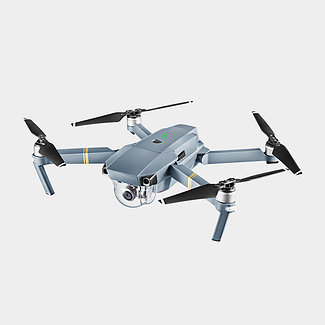

    It is specially designed for UAV, robot, Handheld devices, wearable devices.

    drone camera
    No distortion zoom lens

    Excellent Optical Design

    The focal length of the camera lens: 3.85 ~ 13.4mm, the horizontal field of view angle is 82 ° ~ 25 °, no distortion, super large wide angle.



    12MP Ultra HD Snapshot

    Ultra high definition resolution, maximum support for 4000x3000 snapshot.

    It is suitable for low altitude UAV reconnaissance, short-range ultra-high definition surveillance, aerial photographing and mapping and other scene requirements.



    4k camera aerial imaging
    traking drone gimbal camera

    Intelligent Tracking

    Intelligent tracking based on optical flow algorithm, which can track frame selected targets.

    212  Technical Specification

    Camera
    SensorType1/2.3” Sony Exmor CMOS Sensor.
    Effective Pixels12M pixels
    LensFocal Length3.85 ~ 13.4mm
    Optical Zoom3.5×
    FOV82° ~ 25°
    Close Focus Distance1m ~ 2m(Wide ~ Tele)
    Zoom Speed2.5 Sec(Optics, Wide ~ Tele)
    DORI(M)(It is calculated based on the camera sensor specification and the criteria given by EN 62676-4:2015)DetectObserveRecognizeIdentify
    3461376934
    Video & Audio NetworkCompressionH.265/H.264/H.264H/MJPEG
    Video CompressionMain Stream: 3840*2160@25/30fpsMax Capture Resolution: 4000x3000@10fps
    Video Bit Rate32kbps ~ 16Mbps
    Audio CompressionAAC/MPEG2-Layer2
    Storage CapabilitiesTF card, up to 256GB
    Network ProtocolsOnvif ,HTTP, HTTPs, RTSP, RTP, TCP, UDP
    UpgradeSupport
    Min Illumination0.5Lux/F2.4
    Shutter Speed1/3 ~ 1/30000 Sec
    Noise Reduction2D / 3D
    Image Settings Saturation, Brightness, Contrast, Sharpness, Gamma, etc.
    FlipSupport
    Exposure ModelAuto/Manual/Aperture Priority/Shutter Priority
    Exposure CompSupport
    WDRSupport
    BLCSupport
    HLCSupport
    S/N Ratio≥ 55dB(AGC Off, Weight ON)
    AGC Support
    White Balance (WB) Auto/Manual/Indoor/Outdoor/ATW/Sodium Lamp/Natural/Street Lamp/One Push
    Day/NightAuto (ICR)/Manual (Colour, B/W)
    Digital Zoom16×
    Focus ModelAuto/Manual/Semi-Auto
    Electronic-DefogSupport
    EISSupport
    Smart Trackingsuoport
    GPS information recordsupport
    Flight logsupport
    Snapshotsupport
    Recordsupport
    External Control1× TTL3.3V, Compatible with VISCA protocols
    Video OutputNetwork
    Baud Rate9600 (Default)
    Operating Conditions -30℃ ~ +60℃; 20﹪ to 80﹪RH
    Storage Conditions-40℃ ~ +70℃; 20﹪ to 95﹪RH
    Weight55g
    Power Supply+9 ~ +12V DC
    Power Consumption Static: 3.5W; Max: 4.5W
    Dimensions (mm)Length * Width * Height:55*30*40

    212  Dimensions

    12mp zoom module
