3.5X 12MP Mini 3-Axis Stabilization Drone Gimbal Camera
Video
Overview
Professional mini 4k gimbal camera specially designed for aerial imaging. It’s very light, just 275g.
3.5x optical zoom camera, low distortion, suitable for aerial photography.
It supports recording GPS information when taking photos, which can be used for Pix4D to create maps and 3D models.

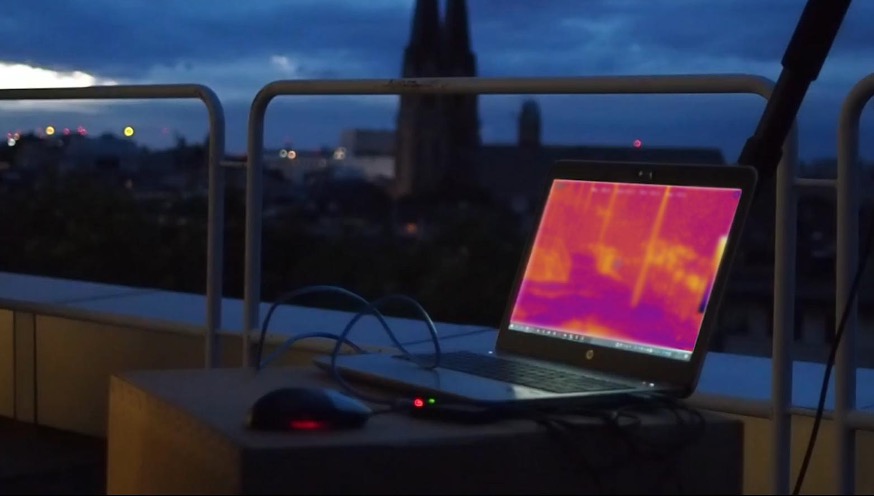

We provide ground control software and control protocols which is easy to operate.
Specification
| GENERAL | |
| Operating Voltage | 12V~25V DC |
| Power | 6W |
| Weight | Camera 275g , IDU 100g |
| Memory Card | Micro SD |
| Dimension(L*W*H) | 99*79*140mm |
| Video Output | Ethernet (RTSP) |
| Interface | Ethernet |
| ENVIRONMENTAL | |
| Work Temperature Range | -10 ~ 60°C |
| Storage Temperature Range | -20 ~ 70°C |
| GIMBAL | |
| Angular Vibration Range | ±0.01° |
| Mount | Detachable |
| Controllable Range | Tilt: +70° ~ -100°; Pan: ±300° |
| Mechanical Range | Tilt: +75° ~ -110°; Pan: ±310°; Roll: +90° ~﹣50° |
| Max Controllable Speed | Tilt: 120º/s; Pan180º/s； |
| Auto-Tracking | Support |
| Cameras | |
| Sensor | CMOS: 1/2.3″; 12MP |
| Lens | 3.5× Optical Zoom, F: 3.85~13.4mm, FOV(Horizontal): 82~25° |
| Photo Formats | JPEG |
| Video Formats | MP4 |
| Operation Modes | Snapshot, Record |
| Defog | E-Defog |
| Exposure Mode | Auto |
| Resolution | (3840×2160)/30fps, 4000×3000(10fps) |
| Noise Reduction | 2D; 3D |
| Electronic Shutter Speed | 1/3~1/30000s |
| OSD | Support |
| TapZoom | Support |

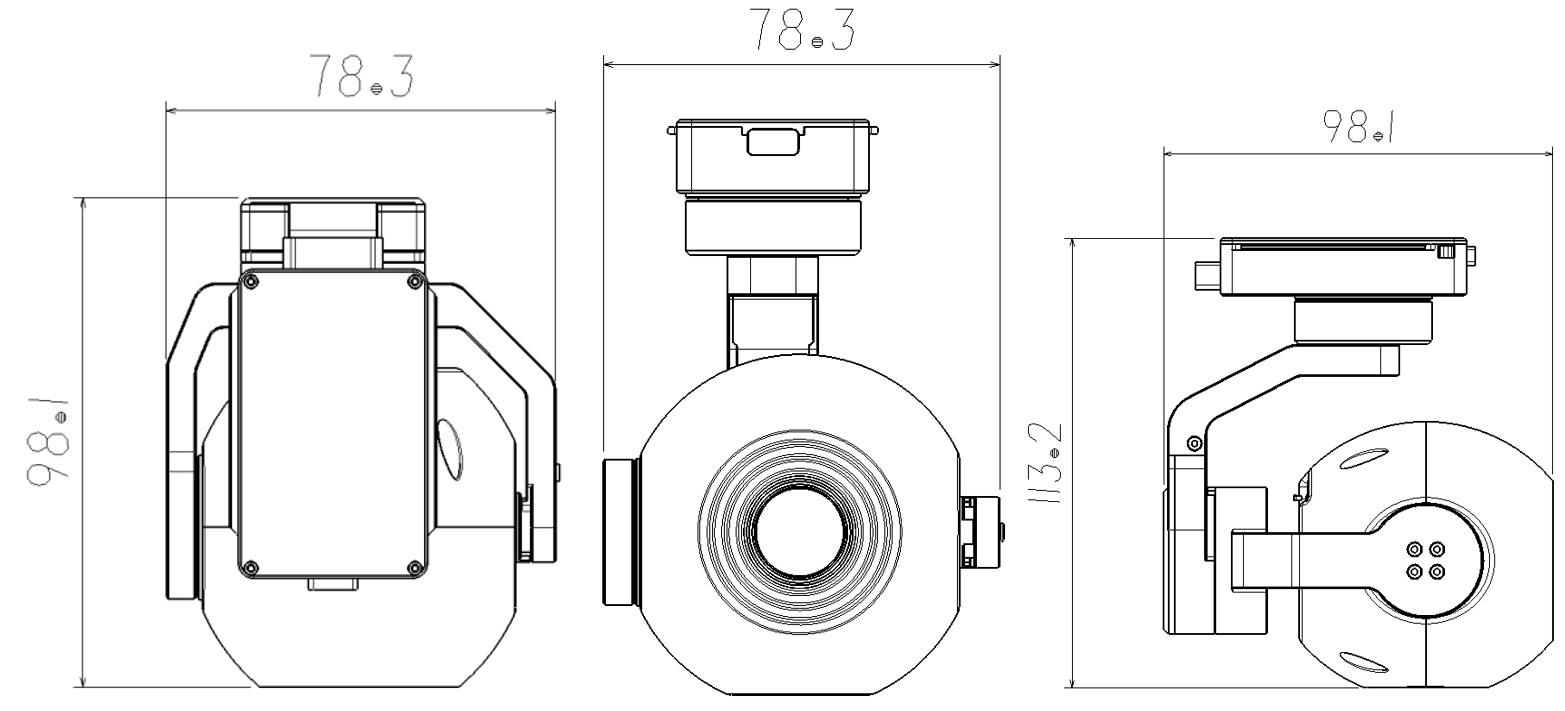

Dimensions
.png)
