86X 10~860mm 2MP Network Ultra Long Range Zoom Block Camera Module

>Powerful 86X  zoom, 10~860mm long range zoom, 4X digital zoom

>Using SONY 1/2 inch STARVIS starlight level low illumination sensor, good imaging effect

>Optical defog

>Good support for ONVIF

>Rich interface, two TTL serial port, convenient for PTZ control

>Fast and accurate focusing


  • Module Name: VS-SCZ2086HM-8
  • Overview

    Product Detail

    Product Tags

    The 86x starlight camera module is an innovative high performance ultra long range zoom block camera over 775mm.

    86x optical zoom ,optical defog, self-contained systematic temperature compensation scheme can ensure stronger environmental adaptability. The focal length 860mm provides the ability of long distance monitoring, it can be widely used in coastal defense, forest fire prevention and other industries.

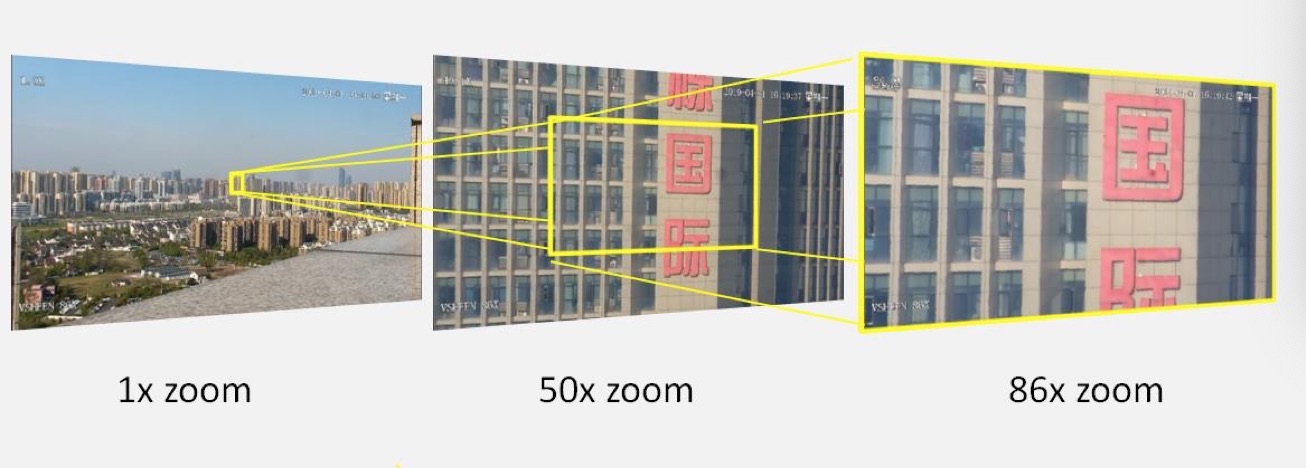

    86x zoom

     Multi-aspheric optical glass with good clarity. Large aperture design, low illumination performance. Horizontal field of view angle of 38 degrees, far more than similar products.

    Support H265 encoding format which can greatly save transmission bandwidth and storage space. hevc











    212  Technical Specification

    Specification

    Explain

    Sensor

    Image Sensor

    1/2 "progressive scan CMOS

    Lens

    Focal Length

    f:10~860mm

    Field of View

    42~0.44(°)

    Aperture

    FNo:2.0~6.8

    Working Distance

    5m~10m(Wide~Tele)

    Video  & Audio Network

    Compression

    H.265/H.264/H.264H/MJPEG

    Audio Codec

    ACC, MPEG2-Layer2

    Audio In Type

    Line-In, Mic

    Sampling Frequency

    16kHz, 8kHz

    Storage Capabilities

    TF card, up to 256G

    Network Protocol

    Onvif, HTTP, RTSP, RTP, TCP, UDP

    IVS

    Tripwire, Intrusion, Loitering Detection, etc.

    General Event

    Motion Detection, Tamper Detection, Audio Detection, No SD Card, SD Card Error, Disconnection, IP Conflict, Illegal Access

    Resolution

    50Hz , 25/50fps(1920 × 1080); 60Hz, 30/60fps(1920 × 1080)

    S/N Ratio

    ≥55dB(AGC Off , Weight ON)

    EIS

    Support

    Minimum Illumination

    Color:0.02Lux/F2.0;

    Defog

    Optical Defog + Electronic Defog

    HLC

    Support

    BLC

    Support

    WDR

    Support

    Day/Night

    Auto(ICR) / Color / B/W

    Zoom Speed

    8 S(Wide-Tele)

    White Balance

    Auto/Manual/ATW/Outdoor/Indoor/Outdoor Auto/ Sodium Lamp Auto/Sodium Lamp

    Electronic Shutter Speed

    Auto Shutter/Manual Shutter(1/3s~1/30000s)

    Exposure

    Auto/Manual/ Shutter Priority/Gain priority

    Noise Reduction

    2D/3D

    Image flip

    Support

    External Control

    2×TTL

    Focus Mode

    Auto/Manual/Semi-Auto

    Digital Zoom

    4x

    Operating Conditions

    -20°C~+60°C/20﹪ to 80﹪RH

    Storage Conditions

    -30°C~+70°C/20﹪ to 95﹪RH

    Power Supply

    DC 12V±15% (Recommended: 12V)

    Power Consumption

    Static Power Consumption:6.5W,

    Operating Power Consumption:8.4W

    Dimensions

    Length * Width * Height:395*145*150(mm);Lens Diameter: 120mm.

    Weight

    5600g

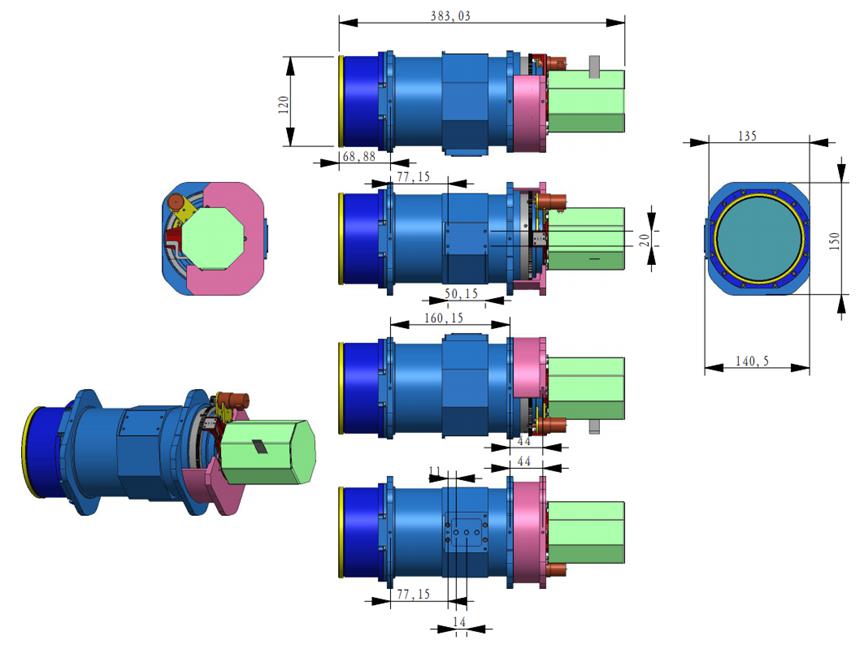

    212  Dimensions

    2121
