50X 6~300mm 4K Network Long Range Zoom Block Camera Module NDAA Compliant

> 1/1.8″ high sensitivity image sensor, Min. Illumination: 0.05Lux (Colour).

>50× optical zoom, Fast and accurate autofocus.

>Max. Resolution: 3840*2160@25/30fps.

>Equipped with Sigma Star SSC339G main control chip.

>Supports Optical-Defog, HLC, BLC, WDR, Suitable for a wide range of applications.

>Supports ICR switching for true day/night surveillance.

>Supports independent configuration of two sets of Day/Night Profiles.

>Supports Triple streams, meet the varying demands of stream bandwidth and frame rate for live preview and storage.

>Supports H.265, Higher encoding compression rate.

>Supports IVS: Tripwire, Intrusion, Loitering, etc.

>Supports ONVIF, Compatible with VMS and network devices from leading manufacturers.

>Full functions: PTZ control, Alarm, Audio, OSD, etc.


  • Module Name: VS-SCZ8050M-8
  • Overview

    Product Detail

    Product Tags

    The 50x 4K starlight zoom camera module is a 6-300mm 4K block camera which equipped with 50x optical zoom lens and SONY STARVIS starlight low illumination sensor IMX334.

    50x optical zoom ,optical defog, stronger environmental adaptability. It can be used for long-distance inspection or some environment with mist such as seaside.

    IMX334 is the latest 8 megapixel starlight level sensor, providing high resolution and excellent illumination which is useful for industries that need intelligent analysis.

    With Ultra HD (4K) video resolution,the 8050HM serial zoom camera modules deliver critical situation awareness. Exceptional field of view gives opterators the ability to seamlessly monitor key details throuhout large areas. The combination of high-performance optics and sensors, exceptional low light visible imaging, abundant hardware interfaces,fast and accurate autofocus algorithms, and effortless integration with all of major third-party VMS mankes the 8050HM serial zoom camera modules an ideal component for CCTV PTZ Cameras, Maritime Systems, Land Systems,  Airborne Systemsm and so on.

    212  Technical Specification

    Camera
    Sensor Type 1/1.8" Sony Progressive Scan CMOS
    Effective Pixels 8.42 M pixels
    Lens Focal Length 6 ~ 300mm
    Optical Zoom 50×
    Aperture FNo: 1.5 ~ 4.5
    HFOV (°) 65.2° ~ 0.8°
    VFOV (°) 39.5° ~ 0.4°
    DFOV (°) 72.5° ~ 0.9°
    Close Focus Distance 1m ~ 5m (Wide ~ Tele)
    Zoom Speed 7 Sec (Optics, Wide ~ Tele)
    Video & Audio Network Compression H.265/H.264/H.264H/MJPEG
    Video Compression Main Stream: 3840*2160@25/30fps; 1080P@25/30fps; 720P@25/30fpsSub Stream1: D1@25/30fps; VGA@25/30fps; CIF@25/30fps

    Sub Stream2: 1080P@25/30fps; 720P@25/30fps; D1@25/30fps

    Video Bit Rate 32kbps ~ 16Mbps
    Audio Compression AAC/MP2L2
    Storage Capabilities TF card, up to 256GB
    Network Protocols ONVIF, HTTP, RTSP, RTP, TCP, UDP
    General Events Motion Detection, Tamper Detection, Scene Changing, Audio Detection, SD Card, Network, Illegal Access
    IVS Tripwire, Intrusion, Loitering, etc.
    Upgrade Support
    Min Illumination Colour: 0.05 Lux/F1.5
    Shutter Speed 1/3 ~ 1/30000 Sec
    Noise Reduction 2D / 3D
    Image Settings Saturation, Brightness, Contrast, Sharpness, Gamma, etc.
    Flip Support
    Exposure Model Auto/Manual/Aperture Priority/Shutter Priority/Gain Priority
    Exposure Comp Support
    WDR Support
    BLC Support
    HLC Support
    S/N Ratio ≥ 55dB(AGC Off, Weight ON)
    AGC Support
    White Balance (WB) Auto/Manual/Indoor/Outdoor/ATW/Sodium Lamp/Natural/Street Lamp/One Push
    Day/Night Auto (ICR)/Manual (Colour, B/W)
    Digital Zoom 16×
    Focus Model Auto/Manual/Semi-Auto
    Defog Optical-Defog
    Image Stabilisation Electronical Image Stabilisation (EIS)
    External Control 2× TTL3.3V, Compatible with VISCA and PELCO protocols
    Video Output Network
    Baud Rate 9600 (Default)
    Operating Conditions -30℃ ~ +60℃; 20﹪ to 80﹪RH
    Storage Conditions -40℃ ~ +70℃; 20﹪ to 95﹪RH
    Weight 900g
    Power Supply +9 ~ +12V DC (Recommend: 12V)
    Power Consumption Static: 5.0W; Max: 6.0W
    Dimensions (mm) Length * Width * Height:175.84*72.2*77.3

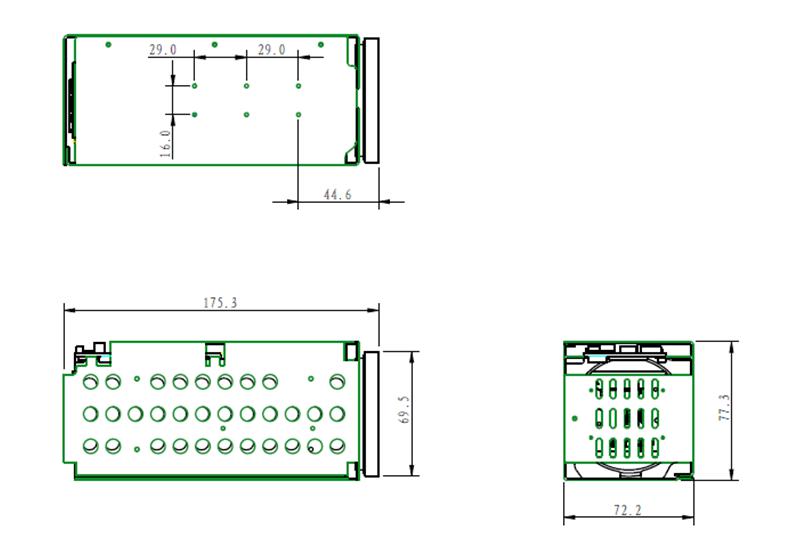

    212  Dimensions

    3
