23X 5~117mm 2MP Starlight Network Zoom Block Camera Module

>23X optical zoom, 5~117mm, 4X digital zoom

>Using SONY latest 1/2.8 inch sensor, the effect of low illumination is good

>Rich interface, two TTL serial port, convenient for PTZ control

>Good support for ONVIF

>Fast and accurate focusing




  • Module Name: VS-SCZ2023HA
  • Overview

    Product Detail

    Product Tags

    The 23x starlight zoom camera module is a cost-effective 1/2.8 inch block camera which equipped with 23x optical zoom lens which provides the power to see objects which is long distance away .

    The 23x camera module is based on 2MP Sony STARVIS IMX327 CMOS sensor with 2.9 µm pixel size. The camera utilizes ultra-low light sensitivity, high signal to noise (SNR) ratio, and uncompressed Full HD streaming at 30 fps.

    city_car_starlight





    212  Technical Specification

    Specification

    Explain

    Sensor

    Size

    1/2.8’ Progressive Scan CMOS

    Lens

    Focal Length

    f:5~117mm

    Aperture

    FNo:1.5~3.5

    Close Focus Distance

    1m~1.5m(Wide~Tale)

    Angle of View

    Horizontal: 58°~2.8°

    Video Net

    Compression

    H.265/H.264/H.264H/MJPEG

    Audio Codec

    ACC, MPEG2-Layer2

    Audio In Type

    Line-In, Mic

    Sampling Frequency

    16kHz, 8kHz

    Storage

    Micro SD card, up to 256G

    Protocol

    Onvif, HTTP, RTSP, RTP, TCP, UDP,

    IVS

    Tripwire, Intrusion, Loitering Detection, etc.

    General Event

    Motion Detection, Tamper Detection, Audio Detection, No SD Card, SD Card Error, Disconnection, IP Conflict, Illegal Access

    Resolution

    50Hz: 1920 x 1080@25fps; 60Hz: 1920 x 1080@30fps

    S/N Ratio

    ≥55dB(AGC Off,Weight ON)

    Minimum Illumination

    Color 0.005Lux/F1.5, B/W 0.0005Lux/ F1.5

    EIS

    Electronic Image Stabilization (ON/OFF)

    E-Defog

    ON/OFF

    Exposure Compensation

    ON/OFF

    HLC

    ON/OFF

    Day/Night

    Auto(ICR)/Manual(Color,B/W)

    Zoom Speed

    3.0S(Wide-Tele)

    White Balance

    Auto/Manual/ATW/Outdoor/Indoor

    Electronic Shutter Speed

    Auto Shutter(1/3s~1/30000s), Manual Shutter(1/3s~1/30000s)

    Exposure

    Auto/Manual

    DNR

    3D; 2D

    Flip

    Support

    Control Interface

    2* TTL

    Focus Mode

    Auto/Manual/Semi-Auto

    Digital Zoom

    4x

    Operating Conditions

    (-30°C~+60°C / 20﹪ to 80﹪RH)

    Storage Conditions

    (-40°C~+70°C / 20﹪to 95﹪RH)

    Power Supply

    DC 12V±15%

    Power Consumption

    Less than 4.5W

    Dimensions

    96*52*58.6mm

    Weight

    285g

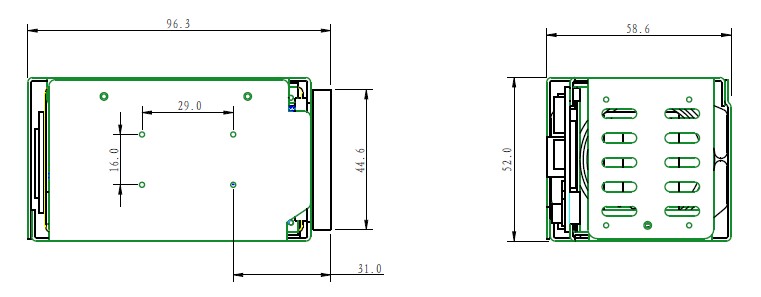

    212  Dimensions

    3
    Type Pin  No. Pin Name Description

    (1) 4PIN Internet Interface

    1

    ETHRX- Internet  RX-

    2

    ETHRX+ Internet  RX+

    3

    ETHTX- Internet  TX-

    4

    ETHTX+ Internet  TX+

    (2) 6PIN Power&UART Interface

    1

    DC_IN DC12V±10%

    2

    GND GND

    3

    RXD1 RS232-RXD(TTL3.3V),Pelco Protocol

    4

    TXD1 RS232-TXD(TTL3.3V),Pelco Protocol

    5

    RXD0 RS232-RXD(TTL3.3V),Visca Protocol

    6

    TXD0 RS232-TXD(TTL3.3V),Visca Protocol

    (3) Audio&Video Interface

    1

    AUDIO_OUT Audio Out(Line Out)

    2

    GND GND

    3

    AUDIO_IN Audio In(Line In)

    4

    GND GND

    5

    VIDEO_OUT Video Out(CVBS)
