30X 2MP and 704*576 Thermal Dual Sensor 3-Axis Stabilization Drone Gimbal Camera

>Visible:30X optical  zoom block camera, 2.13Megapixels.

>Thermal : 19mm lens, max video resolution 704* 576

>3-Axis gimbal stabilizer,± 0.008 degree control precision

>Supporting the overlay of GPS information into videos, subtitle files, snapshots

>Support intelligent tracking

>Open protocol to facilitate third-party client integration




  • Module Name: VS-UAP2030HA-RT3-19
  • Overview

    Product Detail

    Product Tags

    The 30X 2MP and 704*576 thermal bi spectrum 3-axis stabilization drone gimbal camera is equipped with 1/2.8 inch 30x 1080P zoom camera module and 384*288 19mm thermal camera module, operators are no longer constrained by daylight.

    uav drone gimbal

    The payload offers 3-axis stabilization to capture detailed video and still photos, even under extreme environmental conditions. A high-powered zoom means that any movement in the system is magnified, so stability is of utmost importance. The gimbal incorporates leading gimbal technology for stabilization within ±0.008° and the same precision for controls. This enables long-range inspection that is always high in fidelity.

    Practical and convenient ground control software which support pointing zoom, one key return to middle, mouse or touch screen control

    uav drone ground control station

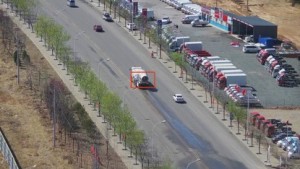

    Full function, support high temperature detection, intelligent tracking.

    uav drone camera track

    Using network port to control gimbal, abandoning the traditional HDMI way, has good reliability, strong compatibility and powerful function



    212  Specification

    Specification

    Model

    UAP2030HA-RT3-19

    Operating Voltage

    12V-25V

    Power

    8.4W

    Weight

    860g(Without IDU)

    Memory Card

    Micro SD

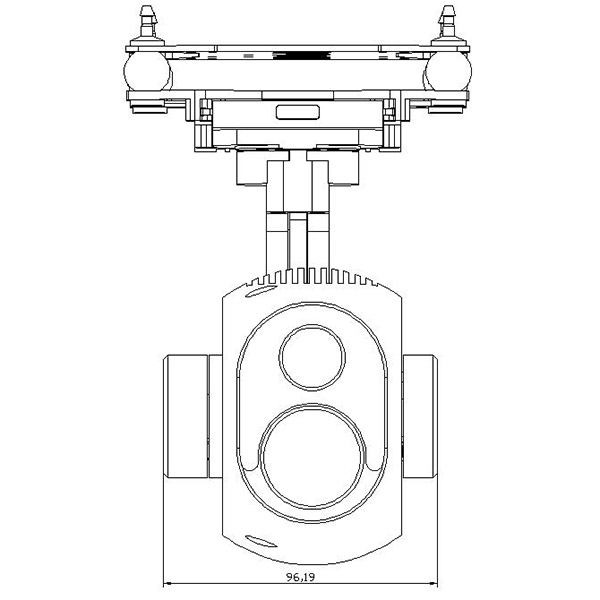

    Dimension(L*W*H)

    140×140×190mm

    Interface

    Ethernet(RTSP)

    Live transmission resolution

    Thermal:640×512  Visible:720P、1080P

    ENVIRONMENTAL

    Work Temperature Range

    -20~60°C

    Storage Temperature Range

    -40~80°C

    GIMBAL

    Angular Vibration Range

    ±0.008°

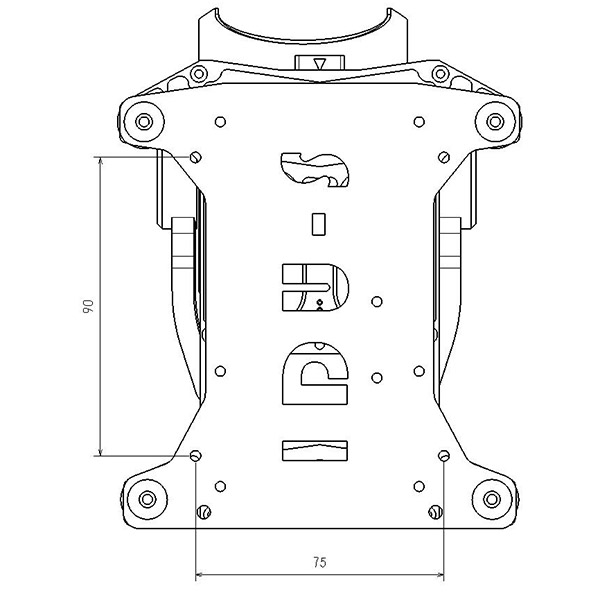

    Mount

    Detachable

    Controllable Range

    Tilt:+70° ~ -90°;Yaw:360°Endless

    Mechanical Range

    Tilt:+75° ~ -100°;Yaw: 360°Endless

    Max Controllable Speed

    Tilt:120º/s; Pan180º/s;

    Auto-Tracking

    Support

    Cameras

    Visible

    Sensor

    CMOS:1/2.8″; 2.16Megapixel

    Lens

    30X Optical Zoom, F: 4.7~141mmmm, FOV(Horizontal): 60~2.3°

    Photo Formats

    JPEG

    Video Formats

    MP4

    Operation Modes

    Capture, Record

    Defog

    E-Defog

    Exposure Mode

    Auto

    Max.Resolution

    1920×1080@25/30fps

    Noise Reduction

    2D/3D

    Electronic Shutter Speed

    1/3~1/30000s

    OSD

    Support

    TapZoom

    Support

    TapZoom Range

    1× ~ 30× Optical Zoom

    One Key to 1x Image

    Support

    Thermal

    Thermal Imager

    Vox Uncooled Microbolometer

    Max.Resolution

    704x576@25fps

    Sensitivity (NETD)

    ≤50mk@25°C,F#1.0

    Full Frame Rates

    50Hz

    Lens

    19mm,Athermalized
