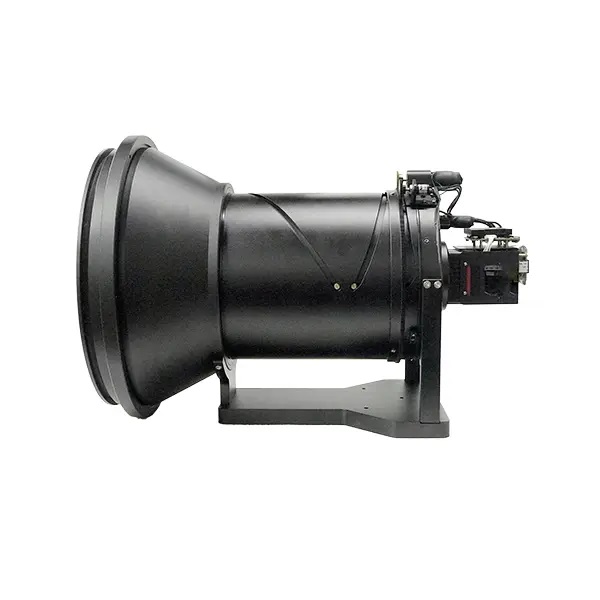

Uncooled VOx 1280*1024 High Definition Network Thermal Camera Module
VS-SCM3008HR-D
>Uncooled VOx 12um 1280*1024microbolometer
>NETD is less than 50mk (@25° C, F#=1.0)
>Various lenses: a series of lenses with standard or customized optical interface
>Support automatic focusing, fast and accurate.
>Powerful IDE image detail enhancement algorithm
>Advanced HDR wide dynamic processing technology
>Support PTZ control ,modular design for easy integration
>Support ONVIF
>Support regional intrusion detection
|
The network VOx high definition thermal camera module use 12um 1280*1024 microbolometer which is more sensitive and intelligent.The image definition is twice that of 640 * 512. With the continuous long range zoom infrared lens, this series modules can detect the target several kilometers away, monitor the temperature change of the object in the field of view in real-time, and provide alarm information according to the user-defined gray threshold which can be set in WEB. This series is widely used in forest fire prevention, border and coastal defense. |
|
Enabling the comprehensive surveillance function and quicker response to different monitoring scenes.When the object breaks into the alert area, alarm can be triggered. Four rules are supported:cross fence detection, intrusion, tripwire, loitering detection. |
 |
|
Model
|
VS-SCM3008HR-D
|
|
|
Sensor
|
Detector
|
Uncooled VOx Microbolometer
|
|
Pixel Pitch
|
12μm
|
|
|
Resolution
|
1280(H)×1024(V)
|
|
|
Spectral Band
|
8~14μm
|
|
|
NETD
|
≤50mK@25℃,F#1.0
|
|
|
Lens
|
Focal Length
|
37.5~300mm
|
|
F-number
|
F1.2
|
|
|
Lens Type
|
Continuous Zoom; Flange
|
|
|
Field of view (FOV)
|
Tele: 2.9(H) × 2.3˚ (V); Wide: 23.1˚(H) ×18.6˚ (V)
|
|
|
Video
& Network |
Video Compression
|
H.265/H.264/MJPEG
|
|
Memory Card
|
TF Card，Max.256G
|
|
|
Protocols & APIs
|
Onvif, HTTP, RTSP, RTP, TCP, UDP
|
|
|
Resolution
|
50Hz:25fps@1280×1024
|
|
|
IVS
|
Tripwire/Intrusion/ Loitering
|
|
|
AGC
|
Support
|
|
|
DDE
|
Support
|
|
|
General
|
Power Supply
|
12V DC ±10%
|
|
Operating Conditions
|
-20˚C～+60˚C (-4˚F ～ 140˚F) / 20﹪ to 80﹪RH
|
|
|
Storage Conditions
|
-40˚C～+65˚C (-40˚F ～ 149˚F) / 20﹪ to 95﹪RH
|
|
|

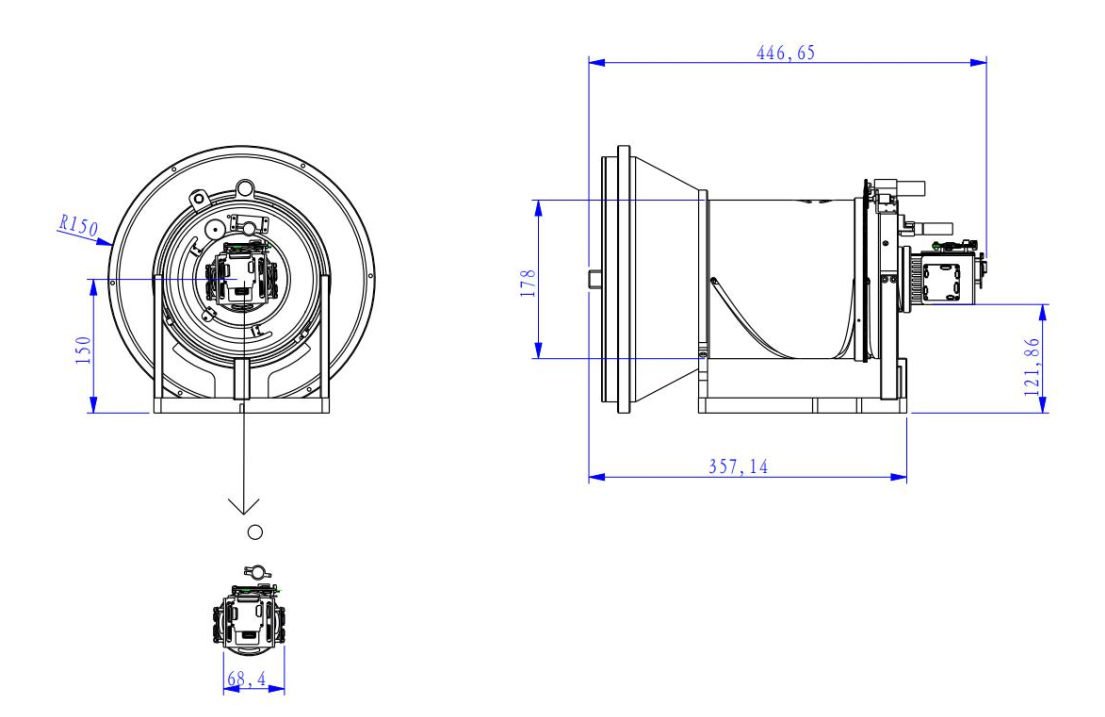

Dimension
|
300mm*300mm*447mm
|
|
|
Weight
|
16kg
|
|
