Bi-spectrum & LRF Three-Axis Drone Gimbal Camera

> Visible: 30╳ Optical Zoom, 2.13M pixels.

> LWIR: 384*288 12μm Uncooled Vox, 19mm Athermalized lens.

> LRF: Up to 1800m.

> Supports a wide range of temperature measurement rules with an accuracy of ±3°C / ±3%.

> Support Various pseudo-colour adjustments, image detail enhancement system functions.

> Network output, the thermal and visible camera have the same web interface and have analytics.

> High-precision & stability-enhanced design, image performance is stable in extreme situation.

> Convenient Ground control station operation.

> Modular design, strong scalability, open SDK.

> Intelligent target tracking, making it easier to track moving targets.

Module Name: VS-UAP2030NA-RT3-19-L15

Send email to us

Product Detail

Product Tags

Specification

GENERAL
Model	VS-UAP2030HA-RT3-19-L15
Operating Voltage	12V~25V
Power	8.4W
Weight	850g
Memory Card	128G Micro SD

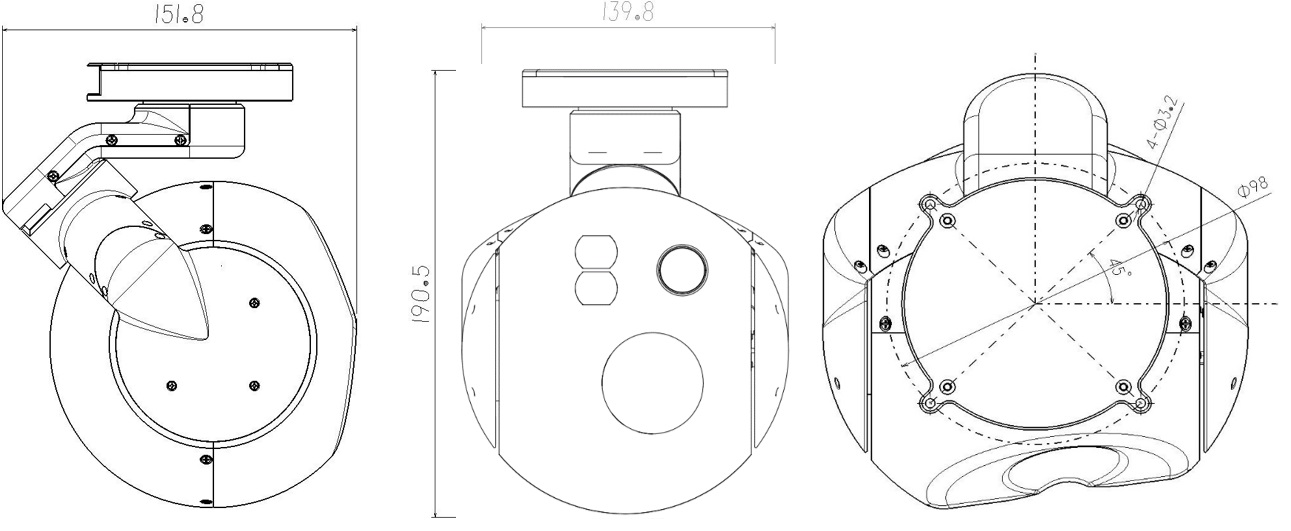

Dimension(LWH)	151.8139.8190.5mm
Video Output	Ethernet (RTSP)
Interface	Ethernet; Serial (CAN)
ENVIRONMENTAL
Work Temperature Range	-20℃ ～ +60℃
Storage Temperature Range	-40℃ ～ +80℃
GIMBAL
Angular Vibration Range	±0.008°
Mount	Detachable
Controllable Range	Pitch: +70°～-90°; Yaw:360°Endless
Mechanical Range	Pitch: +75°～-100°; Yaw:360°Endless
Auto-Tracking	Support
Visible
Sensor	1/2.8” Sony Exmor CMOS, 2.16 M pixels
Lens	30╳ Optical Zoom, F: 4.7 ～ 141mm, HFOV: 60~2.3°
Media Formats	Capture: JPEG; Footage: MP4
Operation Modes	Capture, Record
Defog	E-Defog
Max. Resolution	1920*1080 @25/30fps;
Exposure Model	Auto
Min Illumination	Colour: 0.005Lux/F1.5
Shutter Speed	1/3 ～ 1/30000 Sec
Noise Reduction	2D / 3D
OSD	Support
Tap Zoom	Support
Tap Zoom Range	1╳ ~30╳ Optical Zoom
One Key to1x Image	Support
LWIR
Thermal Image	Vox Uncooled Microbolometer, 384*288
Pixel Pitch	12 μm
Spectral Response	8~14 μm
Sensitivity (NETD)	≤50mK@25℃, F#1.0
Max. Resolution	704*576@25/30fps
Lens	19mm, Athermalized
Temperature Measurement Range	Low Mode: -20°C ~ +150°C; High Mode: 0°C ~ +550°C
Temperature Measurement Accuracy	±3°C or ±3% of the reading (whichever is greater) @ambient temperature-20°C ~ 60°C
Temperature Measurement Rules	Point, Line and Area analysis
Laser Rangefinder
Range	5 ~ 1800m
Resolution	±0.1m
Operating Electric Current	80mA ~ 150mA
Work Temperature Range	-20° ~ +55°
Emit beam	905nm Pulsed Laser
Divergence	2.5 Milliradian
Laser pulse frequency	1HZ
Power	≤1 milliwatt Eye safety
Ranging method	Pulse mode
