2.3X 4K 8MP Zoom Mini Network Camera Module

Short Description:

>Sony 1/1.8’ CMOS sensor, Superb low-light performance and excellent quality imaging performance

>Mini 4K camera lens,super wide angle lens

>Supports H265 & H264 Compression

>Focus quickly and accurately

>Abundant interfaces for easy integration of PTZ

>Supports TF card

CONTACT NOW

Overview

Product Detail

Product Tags

Feedback (2)

The 8002H serial zoom camera modules with an ultra-wide FOV(109°~42°) continuous zoom lens(4.4~10.2mm) and a 8.42 megapixel sensor, delivering vivid images and wide field of view, enhancing the overall viewing experience, ready for the diverse motion and lighting conditions found in critical infrastructure and industrition locations.

Previous: 88X 10.5~920mm 4MP Network Ultra Long Range Zoom Camera Module

Next: 50X 6~300mm 4K Network Long Range Zoom Block Camera Module NDAA Compliant

Specification		Explain
Sensor	Image Sensor	1/1.8" Sony Exmor CMOS
	Effective Pixels	Approx. 8.42 Megapixel
	Max. Resolution	3840(H) x 2160(V)
Lens	Focal Length	4.4mm～10.2mm, 2.3x Optical Zoom
	Aperture	F1.4~F2.2
	Close Focus Distance	1m~3m (Wide～Tale)
	Angle of View	Horizontal FOV : 109°~42°
Video & Audio Network	Compression	H.265/ H.264/ H.264H/ MJPG
	Audio Codec	ACC, MPEG2-Layer2
	Audio In Type	Line-In, Mic
	Sampling Frequency	16kHz, 8kHz
	Storage Capabilities	TF card, up to 256G
	Network Protocol	Onvif, HTTP, RTSP, RTP, TCP, UDP
	IVS	Tripwire, Intrusion, Loitering Detection, etc.
	General Event	Motion Detection, Tamper Detection, Audio Detection, No SD Card, SD Card Error, Disconnection, IP Conflict, Illegal Access
Resolution		50Hz: 25fps@8Mp(3840×2160); 60Hz: 30fps@8Mp(3840×2160)
S/N Ratio		≥55dB (AGC Off, Weight ON)
Minimum Illumination		Color: 0.1Lux/F1.4, Black & White: 0.01/F2.9
EIS		Electronic Image Stabilization (ON/OFF)
Defog		ON/OFF
Exposure Compensation		ON/OFF
HLC		ON/OFF
Day/Night		Auto/Manual
Zoom Speed		Approx 2.5s(Optical Wide-Tele)
White Balance		Auto/Manual/ATW/Indoor/Outdoor/ Outdoor Auto/ Sodium Lamp Auto / Sodium Lamp
Electronic Shutter Speed		Auto Shutter (1/3s~1/30000s)Manual Shutter (1/3s~1/30000s)
Exposure		Auto/Manual
DNR		2D; 3D
Flip		Support

External Control	TTL, Compatible with SONY VISCA Protocol
Focus Mode	Auto/Manual/Semi-automatic
Digital Zoom	4x
Operating Conditions	(-10°C~+60°C/20% to 80%RH)
Storage Conditions	(-20°C~+70°C/20% to 95%RH）
Power Supply	DC 12V±15% (Recommend: 12V)
Power Consumption	Static power: 3.5W, Sports power: 4.5W

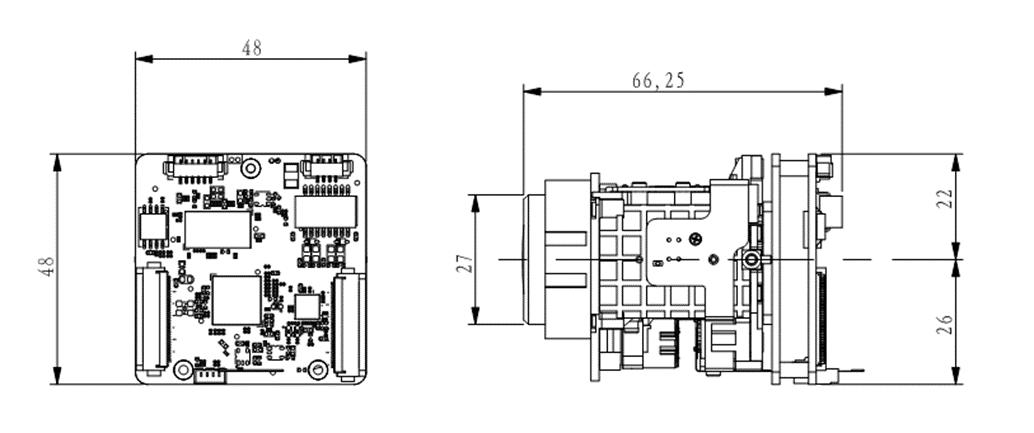

Dimensions(LWH)	Approx. 66.3mm48mm48mm
Weight	Approx. 95g
