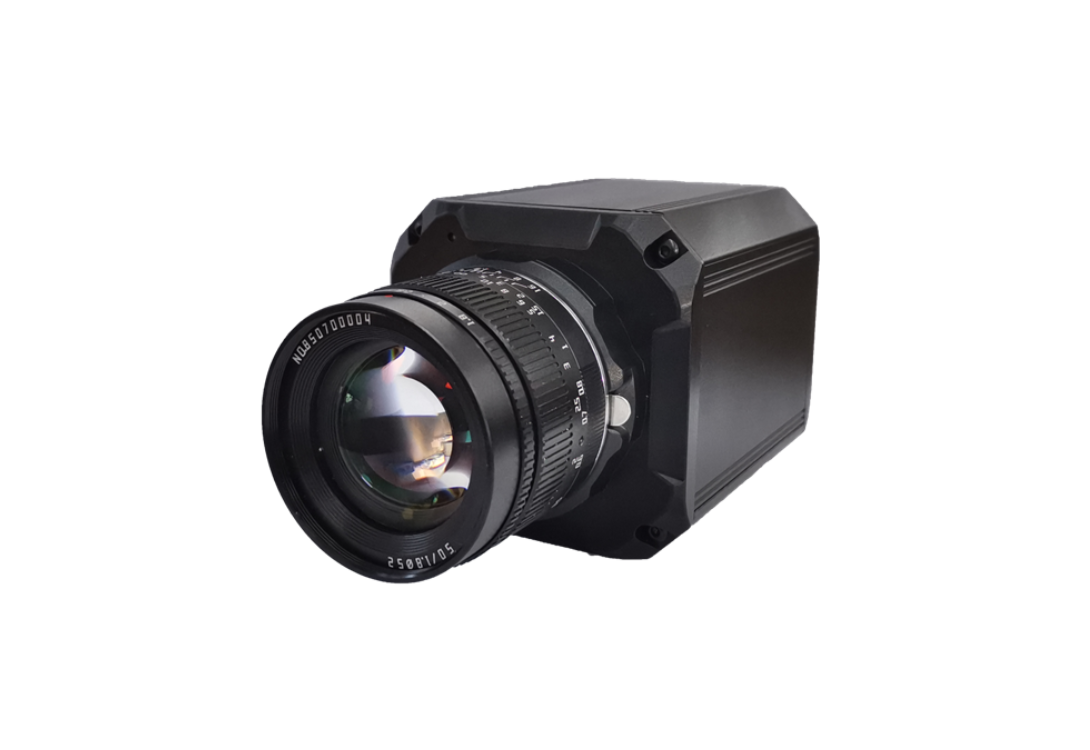

4/3" 4K UHD Live Streaming Camera

VS-LCY800VI-50

· 4/3" Large format
· 50mm F1.2 M43 lens
· 7*24H continuous streaming
· Continuous power supply
· UVC/HDMI/Ethernet Out

Overview Specifications Download

GET PRICING/INFO

4/3" 4K UHD Live Streaming Camera VS-LCY800VI-50

Features

SLR-level Image Quality

4/3" large format 4K UHD sensor, M43 50mm F1.2 premium portrait lens, bring sharp and professional looking close-up image to your live studio as secondary camera.

Dedicated Designed for Live Streaming

Industrial-grade heat dissipation and continuous power supply design, ensuring 7*24 hours of continuous and stable streaming with no need for 3rd party dummy batteries.

Simplified Setup

Support UVC connection via type-c port for easy live-streaming setup, no capture card (encoder) hardware required, lower the kick-off barrier while improving reliability.

Flexible Configuration

Support multiple output options including HDMI/UVC/Ethernet, fit the requirement of different studios.

4/3" Large format 4K UHD sensor, extreme image performance

Full metal camera body with industrial grade heat dissipation design, ensuring 7*24h continuous and stable streaming

25mm/50mm large aperture lens optional
Covering sweet point focal length of prime view and close-up view of your live studio

Multiple outputs including:
UVC(USB Type-C)/HDMI/Ethernet

Specifications

Camera	Sensor Type	4 / 3" CMOS Sensor
	Effective Pixels	10M pixels 16：9
	Focal Length	50mm
	Lens Type	M43 Fixed Lens
	Aperture	F1.2 ～ 16
	FOV-H	20.12°
	FOV-V	11.4°
	Minimum Focus Distance	0.2m ～ inf
	White Balance	Auto/Manual/Color temperature sensor calibration
	Color Correction	Auto/Manual/Color temperature sensor calibration
	Image Settings	Brightness/Contrast/Saturation/Sharpness/GAMA/2D&3D-NR
	Exposure	Auto/Manual
	Shutter Speed	1/1 ～ 1/30000秒
	AGC	Support
	Image Flip	Support
	BLC	Support
	HLC	Support
	WDR	Support
	Latency	<200ms(@1080P)
LAN Out	Video Compression	H.265/H.264/H.264H/MJPEG
	Bitrate	32kbps ～ 16Mbps
	Bitrate Control	CBR/VBR
	Video Stream	H.264、H.265:38402160@30fps、38402160@25fps、19201080@30fps、19201080@25fps MJPEG:38402160@13fps、19201080@25fps
	Protocol	TCP/IP、RTSP
HDMI2.0 Out	Video Stream	38402160@30fps、38402160@25fps、19201080@30fps、19201080@25fps
USB3.0 Out	Compatible OS	Windows 10+, Mac OS 10+, Andriod5.1+, Linux
	Video Stream	MJPEG、H.264、H.265:38402160@30fps、38402160@25fps、19201080@30fps、19201080@25fps NV12:19201080@30fps、19201080@25fps
	USB Protocol	UVC1.1
Settings		Image settings via UVC protocol
Interface		1Ethernet 1HDMI2.0 1USB TYPE-C(3.0) 1USB TYPE-C Power in
Accessories		USB cable * 1, HDMI cable * 1, User manual * 1
Operating Conditions		-30℃ ～ +60℃、20﹪ to 80﹪RH
Storage Conditions		-40℃ ～ +70℃、20﹪ to 95﹪RH
Weight		763.5g
Power		DC +9 ～ +12V, Max 5W
Dimension		1408080mm
