3.5X 4K Ultra HD Macro Imaging Microscope Zoom Camera Module

>3840×2160 30fps 4K ultra-hd real-time video, with a snapshot resolution of up to 4000×3000

> 3.5 × optical zoom, 3.85mm-13.4mm, No distortion, auto focus, fast and accurate focusing. Macro imaging, the closest focusing distance is 10cm.

>1/2.3”high sensitivity Back-illuminated image sensor, Ultra HD quality.

> Supports H.265, Higher encoding compression rate.

> Supports ONVIF, Compatible with VMS and network devices from leading manufacturers.




  • Module Name: VS-SCZ8003K
  • Product Detail

    Product Tags

    212  Overview

    As we all know, macro imaging is still difficult for zoom cameras at high magnifications.
    The 3.5x camera has an excellent optical design, which can ensure that the image is still clearly imaged even at an object distance of 10cm throughout the entire zoom range.
    The system uses a 4K high-definition sensor with clear picture quality, suitable for microscopy and other fields.

    No distortion zoom lens

    Excellent Optical Design

    The focal length of the camera lens: 3.85 ~ 13.4mm, the horizontal field of view angle is 82 ° ~ 25 °, no distortion, super large wide angle.



    4K Ultra HD Image Quality

    4K 3840*2160 Ultra high definition resolution.Clear and delicate picture quality

    4k camera aerial imaging

    212  Technical Specification

    Camera
    Sensor Type 1/2.3” Sony Exmor CMOS Sensor.
    Effective Pixels 12M pixels
    Lens Focal Length 3.85 ~ 13.4mm
    Optical Zoom 3.5×
    FOV 82° ~ 25°
    Close Focus Distance 1m ~ 2m(Wide ~ Tele)
    Zoom Speed 2.5 Sec(Optics, Wide ~ Tele)
    DORI(M)(It is calculated based on the camera sensor specification and the criteria given by EN 62676-4:2015) Detect Observe Recognize Identify
    346 137 69 34
    Video & Audio Network Compression H.265/H.264/H.264H/MJPEG
    Video Compression Main Stream: 3840*2160@25/30fpsMax Capture Resolution: 4000x3000@10fps
    Video Bit Rate 32kbps ~ 16Mbps
    Audio Compression AAC/MPEG2-Layer2
    Storage Capabilities TF card, up to 256GB
    Network Protocols Onvif ,HTTP, HTTPs, RTSP, RTP, TCP, UDP
    Upgrade Support
    Min Illumination 0.5Lux/F2.4
    Shutter Speed 1/3 ~ 1/30000 Sec
    Noise Reduction 2D / 3D
    Image Settings Saturation, Brightness, Contrast, Sharpness, Gamma, etc.
    Flip Support
    Exposure Model Auto/Manual/Aperture Priority/Shutter Priority
    Exposure Comp Support
    WDR Support
    BLC Support
    HLC Support
    S/N Ratio ≥ 55dB(AGC Off, Weight ON)
    AGC Support
    White Balance (WB) Auto/Manual/Indoor/Outdoor/ATW/Sodium Lamp/Natural/Street Lamp/One Push
    Day/Night Auto (ICR)/Manual (Colour, B/W)
    Digital Zoom 16×
    Focus Model Auto/Manual/Semi-Auto
    Electronic-Defog Support
    EIS Support
    Smart Tracking suoport
    GPS information record support
    Flight log support
    Snapshot support
    Record support
    External Control 1× TTL3.3V, Compatible with VISCA protocols
    Video Output Network
    Baud Rate 9600 (Default)
    Operating Conditions -30℃ ~ +60℃; 20﹪ to 80﹪RH
    Storage Conditions -40℃ ~ +70℃; 20﹪ to 95﹪RH
    Weight 55g
    Power Supply +9 ~ +12V DC
    Power Consumption Static: 3.5W; Max: 4.5W
    Dimensions (mm) Length * Width * Height:55*30*40

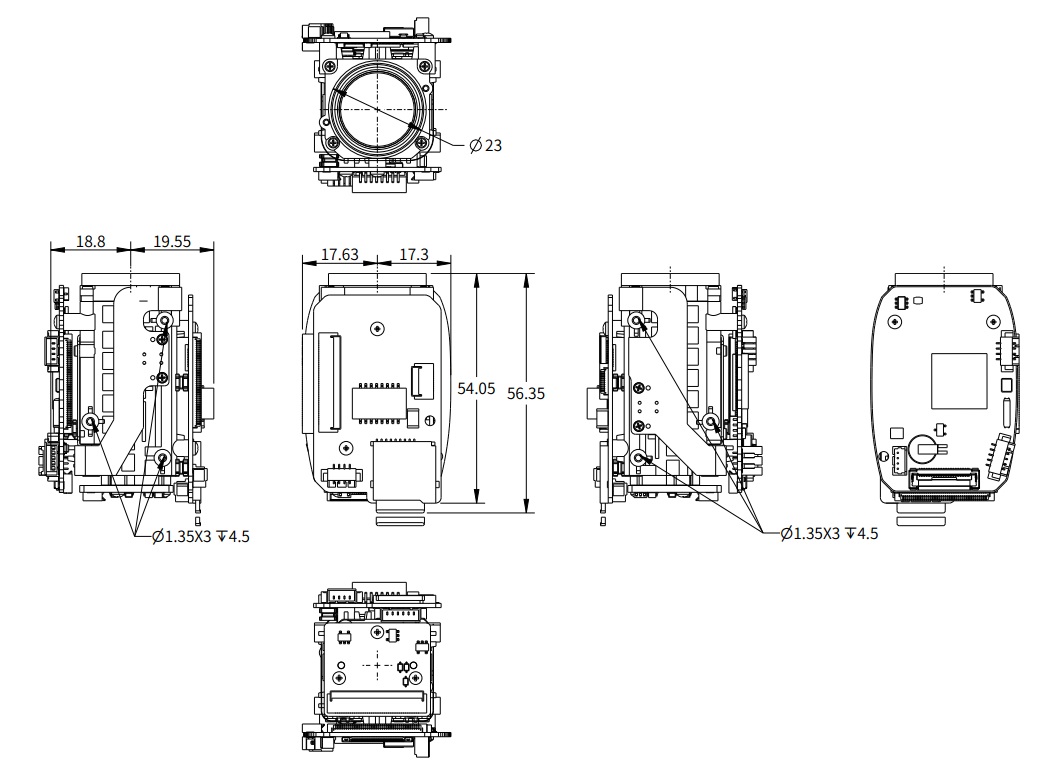

    212  Dimensions

    12mp zoom module
