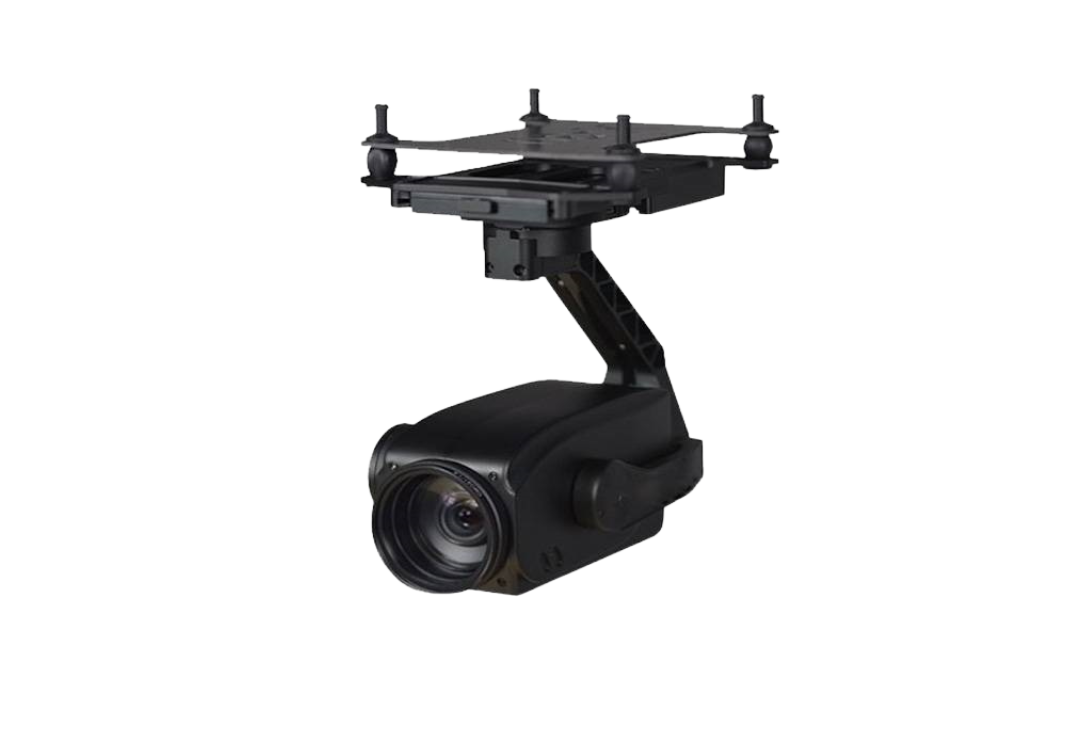

30X 4K 8MP 3-Axis Stabilization Drone Gimbal Camera
VS-UAP8030M· Powerful 30x 4K zoom gimbal camera
· Using SONY 1/1.8 inch sensor
· 3-Axis gimbal stabilizer, ± 0.008 degree control precision
· Supporting the overlay of GPS information into videos, subtitle files, snapshots
· Support intelligent tracking
The 30x payload is a fully-integrated, high performance electro-optical camera payload designed for demanding applications that require clear and precise images.
| The control precision is as high as ±0.008 degree which leading the industry. Even when the camera is in the maximum focal length and fast flight, it can still maintain the image stability. |
 |
 |
30x optical zoom ,the snap picture resolution can be up to 16MP |
|
It supports recording GPS information when taking photos, which can be used for Pix4D to create maps and 3D models. |
 |
 |
We provide ground control software and control protocols which is easy to operate. |
| Real footage shot by 30X 4K 8MP Drone Camera VS-UAP8030M |
| GENERAL | |
| Operating Voltage | 12V~25V DC |
| Power | 8.4W |
| Weight | 842g(Without IDU) |
| Memory Card | Micro SD |
| Dimension(L*W*H) | 96*79*120mm |
| Video Output | Ethernet (RTSP) |
| Interface | Ethernet, Serial (CAN) |
| ENVIRONMENTAL | |
| Work Temperature Range | -10 ~ 60°C |
| Storage Temperature Range | -20 ~ 70°C |
| GIMBAL | |
| Angular Vibration RangeAngular Vibration RangeAngular Vibration RangeAngular Vibration Range | ±0.008° |
| Mount | Detachable |
| Controllable Range | Tilt: +70° ~ -90°; Pan: ±160° |
| Mechanical Range | Tilt: +75° ~ -100°; Pan: ±175°; Roll: +90° ~﹣50° |
| Max Controllable Speed | Tilt: 120º/s; Pan180º/s； |
| Auto-Tracking | Support |
| Cameras | |
| Visible | |
| Sensor | CMOS: 1/1.7″; 12MP |
| Lens | 30× Optical Zoom, F: 6~180mm,FOV(Horizontal): 63~2.5° |
| Photo Formats | JPEG |
| Video Formats | MP4 |
| Operation Modes | Snapshot, Record |
| Defog | E-Defog |
| Exposure Mode | Auto |
| Resolution | (3840×2160)/30fps, 4000×3000(20fps) |
| Noise Reduction | 2D; 3D |
| Electronic Shutter Speed | 1/3~1/30000s |
| OSD | Support |
| TapZoom | Support |
|
Electronic Shutter Speed |
1/3~1/30000s |
|
OSD |
Support |
|
TapZoom |
Support |
|
TapZoom Range |
1× ~ 3.5× Optical Zoom |
|
One Key to 1x Image |
Support |
|
Thermal |
|
|
Thermal Imager |
Vox Uncooled Microbolometer |
|
Max.Resolution |
704x576@25fps |
|
Sensitivity (NETD) |
≤50mk@25°C,F#1.0 |
|
Full Frame Rates |
50Hz |
|
Lens |
19mm,Athermalized |
| Measuring Range | Two gears: - 20 ℃~+150 ℃, 0 ℃~+550 ℃, default - 20 ℃~+150 ℃ |
| Measuring Accuracy | ± 3 ℃ or ± 3% @ ambient temperature - 20 ℃～ 60 ℃ |
| Resolution | ±0.1m |
| Operating Electric Current | 80mA ~ 150mA |
| Work Temperature Range | -20° ~ +55° |
| Emit beam | 905nm Pulsed Laser |
| Divergence | 2.5 Milliradian |
| Laser pulse frequency | 1HZ |
| Power | ≤1 milliwatt Eye safety |
| Ranging method | Pulse mode |
