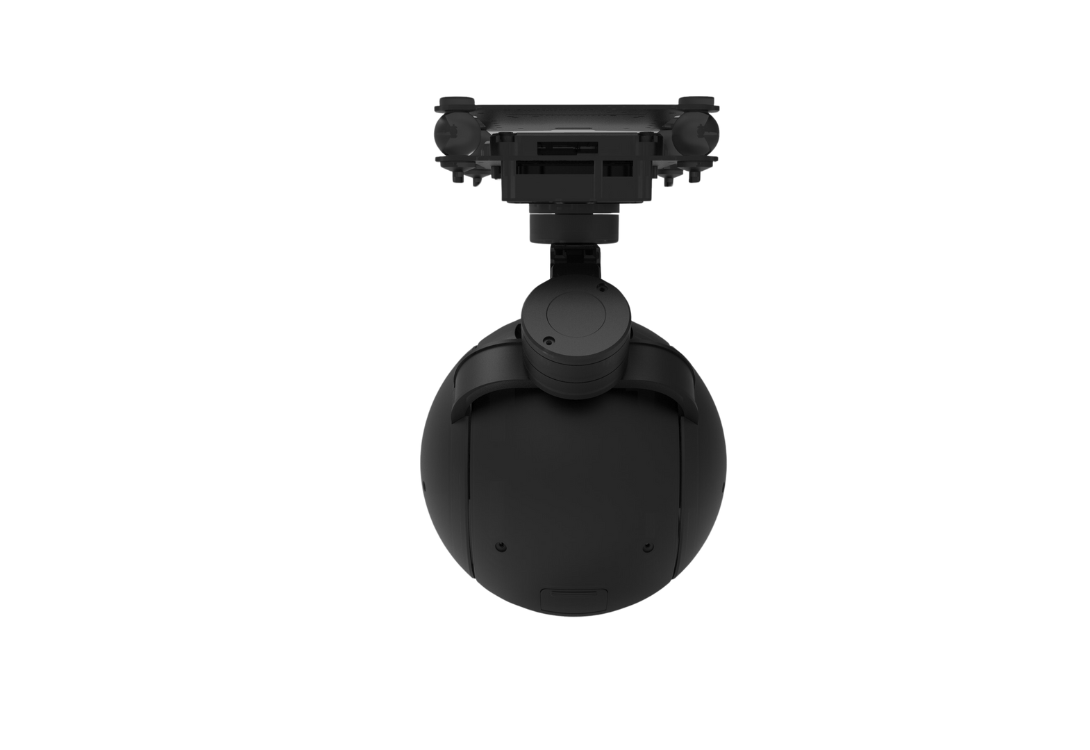

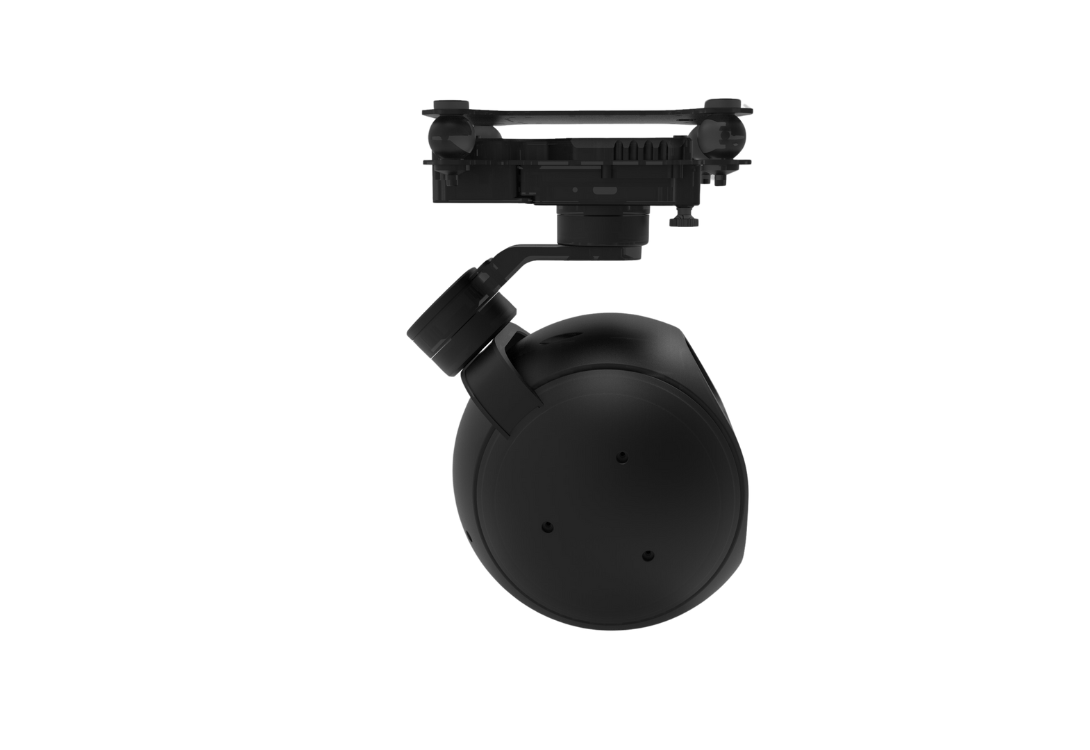

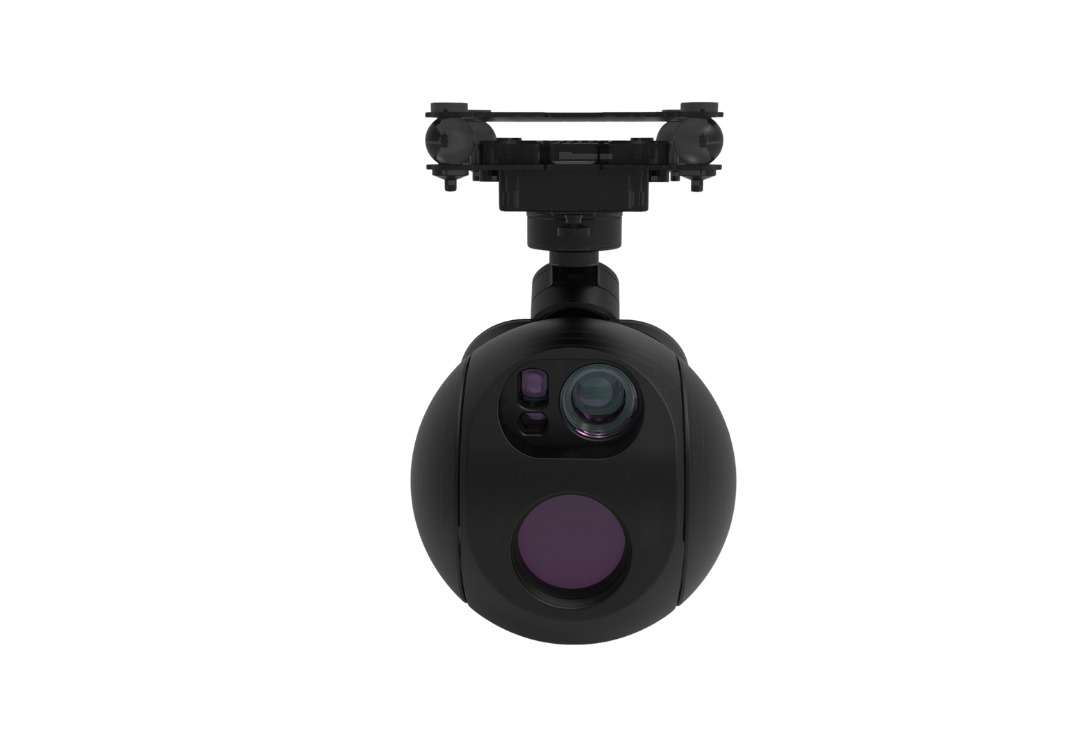

30x 2MP Visible 640x512 Thermal Imaging Laser Range Finder Trispectral Gimbal Camera

VS-UAP2030-GV6019-L15

· 2MP FHD visible sensor

· 30X optical zoom lens
· 640x512 Uncooled FPA Thermal detector
· 19mm athermalized lens
· 1500m Laser range finder

· 3-Axis gimbal stabilizer, ± 0.01 degree control precision
· AI target classification of human/vehicle
· Smart target tracking

30x 2MP Visible 640x512 Thermal Imaging Laser Range Finder Trispectral Gimbal Camera

Overview Specifications Download

GET PRICING/INFO

30x 2MP Visible 640x512 Thermal Imaging Laser Range Finder Trispectral Gimbal Camera VS-UAP2030-GV6019-L15

This drone gimbal, with its 30X optical zoom starlight camera and 141mm telephoto lens, delivers unparalleled clarity and focus, even at extreme distances. The 640x512 high-definition thermal imaging and intelligent recognition tracking are complemented by a high-precision three-axis stabilization gimbal, ensuring steady and comprehensive coverage. The dual-layer physical vibration reduction and 360° rotation capability, along with a 1500-meter laser detection range, make it an essential tool for advanced surveillance and security operations.

Features

Intelligent identification tracking

Based on deep learning, the gimbal camera support intelligent target classification of people and vehicles, and performing auto target tracking

Excellent stability

The advanced 3-axis stabilizing PTZ works closely with the mounting platform, with a high-speed processor controlling the precise operation of the motors, compensating for every subtle movement, so that the camera maintains a stable shooting angle at all times.

360° rotation

The superior mechanical design structure achieves 360° dead-angle-free rotation, allowing free access to an uninhibited all-round view.

Excellent Multi-spectrum Image

The 30x optical zoom camera with a maximum focal length of up to 141mm and VGA thermal detector, a strong combination ensures clear details from far away in any light conditions. With addition 1500m laser range finder to help providing all-round information of targets.

AI based multi-target Human/Vehicle classification and smart tracking

High Speed Truck Tracking with Bispectral Drone Gimbal Camera

Specifications

Overall Parameters
Dimensions	128(L)×122(W)×198(H) mm
Weight	Pod	780g
	Shock Absorption	130g
Working Temperature	-20℃～45℃
Storage	TF card (up to 128G, class 10, FAT32 or ex-FAT)
Input Voltage	4S～12S (15V～60V)
Control Signal	SBus, serial port, CAN, network port
The Output Voltage	5V (connected to SBus)
Dynamic Current	800～1200mA at 15V
Working Current	900mA at 15V
Video Output	IP (1080p/720p 30/60fps)
Video Storage	MP4 (1080P 30fps/s)
Photo Storage	JPG (1920*1080)
PTZ Parameters
Vibration Angle	Pitch/Roll	±0.01°
	Yaw	±0.01
Control Rotation Range	Pitch	-45°～90°
	Yaw	±360°*N
Mechanical Rotation Range	Pitch	360°continuous rotation
	Roll	-130°~60°
	Yaw	±360°*N
Output Interface	GH1.25 interface: 4-core (network port), 5-core (serial port, can), 2-core (SBus) XT30 (power) power supply
Operating Mode	Orientation lock, course following, one click down, one click to return to center
Visible Parameters
Image Sensor	Sony 1/2.8-inch "Exmor R" CMOS
Focal Length	4.7～141mm
Zoom Factor	30x optical zoom, 480x hybrid zoom
Focus Speed	<1s
Horizontal Viewing Angle	63.7°(W)～2.3°(T)
signal-to-noise ratio	≥55dB
minimum illumination	Color: 0.01lux@F1.6
exposure control	Auto, manual, priority mode (shutter priority and aperture priority), brightness, EV compensation, slow AE
White Balance	Automatic, ATW, indoor, outdoor, one-touch WB, manual WB, outdoor automatic, sodium vapor lamp (fixed/automatic/outdoor automatic)
Shutter Speed	1/1 to 1/30000 seconds
BLC	support
Aperture Control	support
Defog	support
System Data Operating	support
Thermal Parameters
Focal Length	19mm
Horizontal FOV	22.85°
Vertical FOV	18.37°
Diagonal FOV	29.02°
Operating Mode	Uncooled long wave (8μm～14μm) thermal imager
Detector Pixels	640*512
Pixel Size	12μm
False Color Type	White hot, rainbow, lava, iron red, etc.
Synchronized Time	support
Infrared Laser Range Finder
Scope	5～1500 meters
Working Current	80mA (max)
Beam	905nm pulsed laser
Divergence Angle	3mrad
Laser Pulse Frequency	1HZ
Power	<1mW (eye safety ensure)
Ranging Mode	pulse
Location Analysis	Latitude and longitude of target
EO/IR Target Tracking
Deviation Update Rate	30Hz
Deviation Output Delay	<30ms
Minimum Focus Supported Ratio	5%
Minimum Supported Focus Size	16*16 pixels
Maximum Supported Target Size	256*256 pixels
Tracking Speed	<32 pixels/fps
Support Memory Time	100 fps
EO AI Recognition Performance
Target Type	Human, vehicle
Simultaneous Detection Quantity	≥10 goals
Minimum Support Ratio
Minimum Target Size	5×5 pixels
Vehicle Detection Rate	≥85%
False Alarm Rate	≤10%
