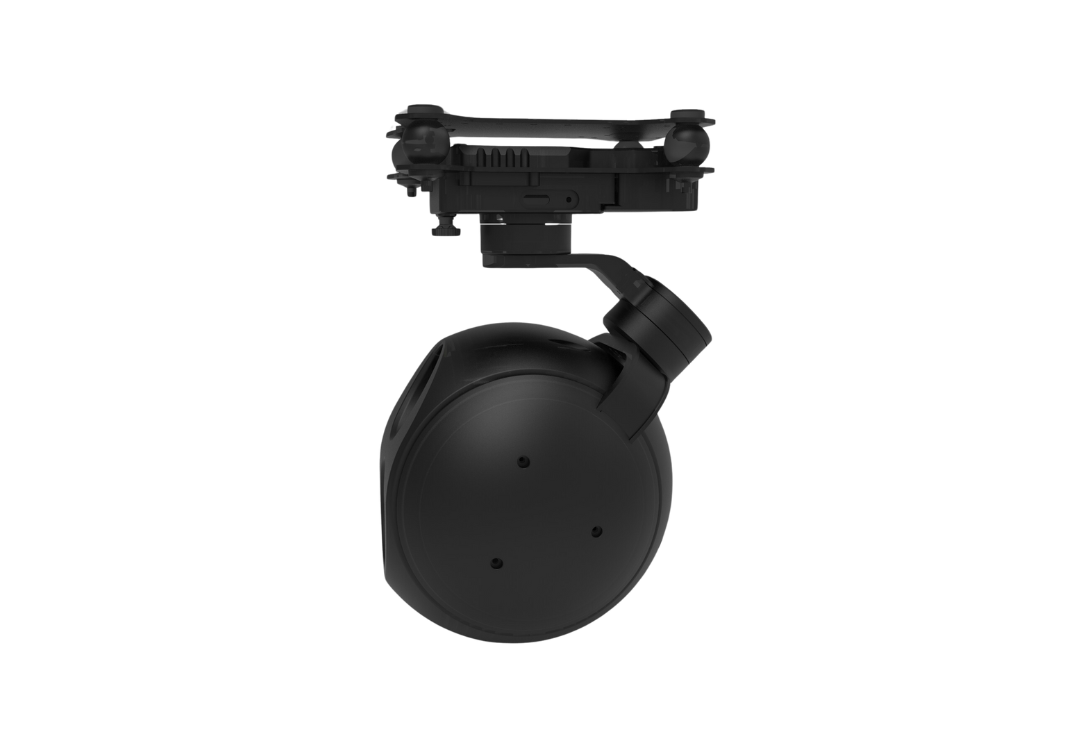

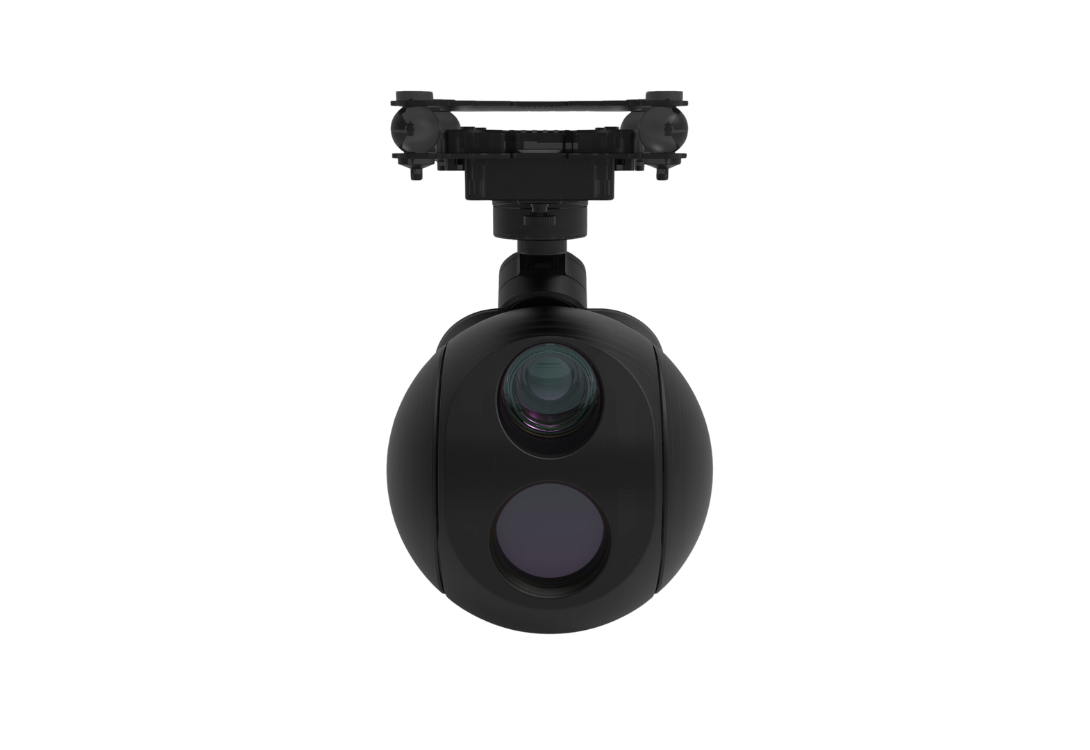

30x 2MP Visible 640x512 Thermal Imaging Bispectral Gimbal Camera

VS-UAP2030-GV6025

· 2MP FHD visible sensor

· 30X optical zoom lens
· 640x512 Uncooled FPA Thermal detector
· 25mm athermalized lens

· 3-Axis gimbal stabilizer, ± 0.01 degree control precision
· AI target classification of human/vehicle
· Smart target tracking

30x 2MP Visible 640x512 Thermal Imaging Bispectral Gimbal Camera

Overview Specifications Download

GET PRICING/INFO

30x 2MP Visible 640x512 Thermal Imaging Bispectral Gimbal Camera VS-UAP2030-GV6025

Featuring a 30X optical zoom starlight camera and a 141mm telephoto lens for superior image capture, this drone gimbal offers rapid focusing and high-definition thermal imaging at 640*512 resolution. The high-precision three-axis stabilization and dual-layer physical vibration reduction ensure smooth operation, while the 360° rotation and intelligent recognition tracking capabilities provide comprehensive surveillance solutions.

Features

Intelligent identification & tracking

Based on deep learning, the gimbal camera support intelligent target classification of people and vehicles, and performing auto target tracking

Excellent stability

The advanced 3-axis stabilizing PTZ works closely with the mounting platform, with a high-speed processor controlling the precise operation of the motors, compensating for every subtle movement, so that the camera maintains a stable shooting angle at all times.

360° rotation

The superior mechanical design structure achieves 360° dead-angle-free rotation, allowing free access to an uninhibited all-round view.

Excellent Multi-spectrum Image

The 30x optical zoom camera with a maximum focal length of up to 141mm and VGA thermal detector, a strong combination ensures clear details from far away in any light conditions.

AI based multi-target Human/Vehicle classification and smart tracking

High Speed Truck Tracking with Bispectral Drone Gimbal Camera

Specifications

Overall Parameters
Dimensions	128(L)×122(W)×198(H) mm
Weight	Pod	780g
	Shock Absorption	130g
Working Temperature	-20℃～45℃
Storage	TF card (up to 128G, class 10, FAT32 or ex-FAT)
Input Voltage	4S-12S (15V-60V)
Control Signal	SBus, serial port, CAN, network port
The Output Voltage	5V (connected to SBus)
Dynamic Current	800～1200mA at 15V
Working Current	900mA at 15V
Video Output	IP (1080p/720p 30/60fps)
Video Storage	MP4 (1080P 30fps/s)
Photo Storage	JPG (1920*1080)
PTZ Parameters
Vibration Angle	Pitch /Roll	±0.01°
	Yaw	±0.01
Control Rotation Range	Pitch	-45°～90°
	Yaw	±360°*N
Mechanical Rotation Range	Pitch	360°continuous rotation
	Roll	±70°
	Yaw	±360°*N
Output Interface	GH1.25 interface: 4-core (network port), 5-core (serial port, can), 2-core(SBus) XT30(power)
Operating Mode	Orientation lock, course following, one click down, one click to return to center
Visible Parameters
Image Sensor	Sony 1/2.8-inch "Exmor R" CMOS
Focal Length	4.7～141mm
Zoom Factor	30x optical zoom, 480x hybrid zoom
Focus Speed	<1s
Horizontal Viewing Angle	63.7°(W)～2.3°(T)
Signal-to-Noise Ratio	≥55Db
Minimum Illumination	Color: 0.01lux@F1.6
Exposure Control	Auto, manual, priority mode (shutter priority and aperture priority), brightness, EV compensation, slow AE
White Balance	Automatic, ATW, indoor, outdoor, one-touch WB, manual WB, outdoor automatic, sodium vapor lamp (fixed/automatic/outdoor automatic)
Shutter Speed	1/1 to 1/30000 seconds
BLC	support
Aperture Control	AUTO
Defog	support
Thermal Parameters
Focal Length	25mm
Horizontal FOV	17.46°
Vertical FOV	14.01°
Diagonal FOV	22.26°
Operating Mode	Uncooled long wave(8μm～14μm) thermal imager
Detector Pixels	640*512
Pixel Size	12μm
False Color Type	White hot, rainbow, lava, iron red, etc.
Focal Length	25mm
EO/IR Target Tracking
Deviation Update Rate	30Hz
Deviation Output Delay	<30ms
Minimum Support Focus Support Ratio	5%
Minimum Supported Focus Size	16*16 pixels
Maximum Supported Target Size	256*256 pixels
Tracking Speed	<32pixels/fps
Support Memory Time	100 fps
EO AI Recognition Performance
Target Type	Human, vehicle
Simultaneous Detection Quantity	≥10target
Minimum Support Ratio
Minimum Target Size	5×5pixels
Vehicle Detection Rate	≥85%
False Alarm Rate	≤10%
Maximum Supported Target Size	256*256 pixels
Tracking Speed	<32 pixels/fps
Support Memory Time	100 fps
EO AI Recognition Performance
Target Type	Human, vehicle
Simultaneous Detection Quantity	≥10 goals
Minimum Support Ratio
Minimum Target Size	5×5 pixels
Vehicle Detection Rate	≥85%
False Alarm Rate	≤10%
