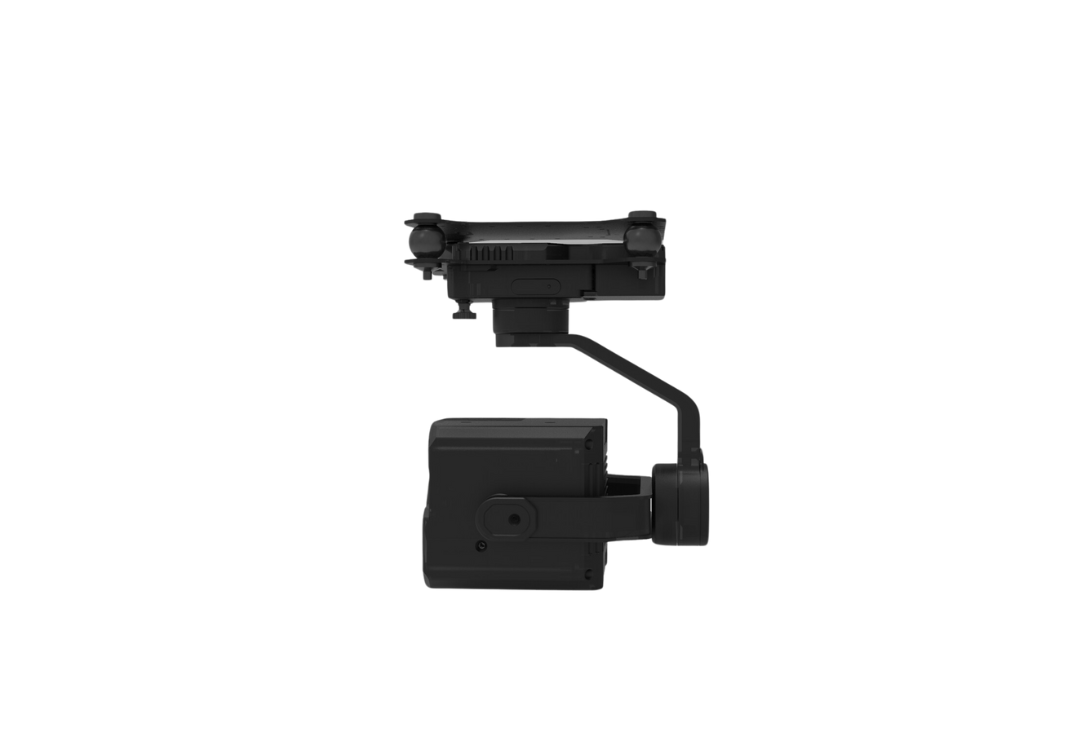

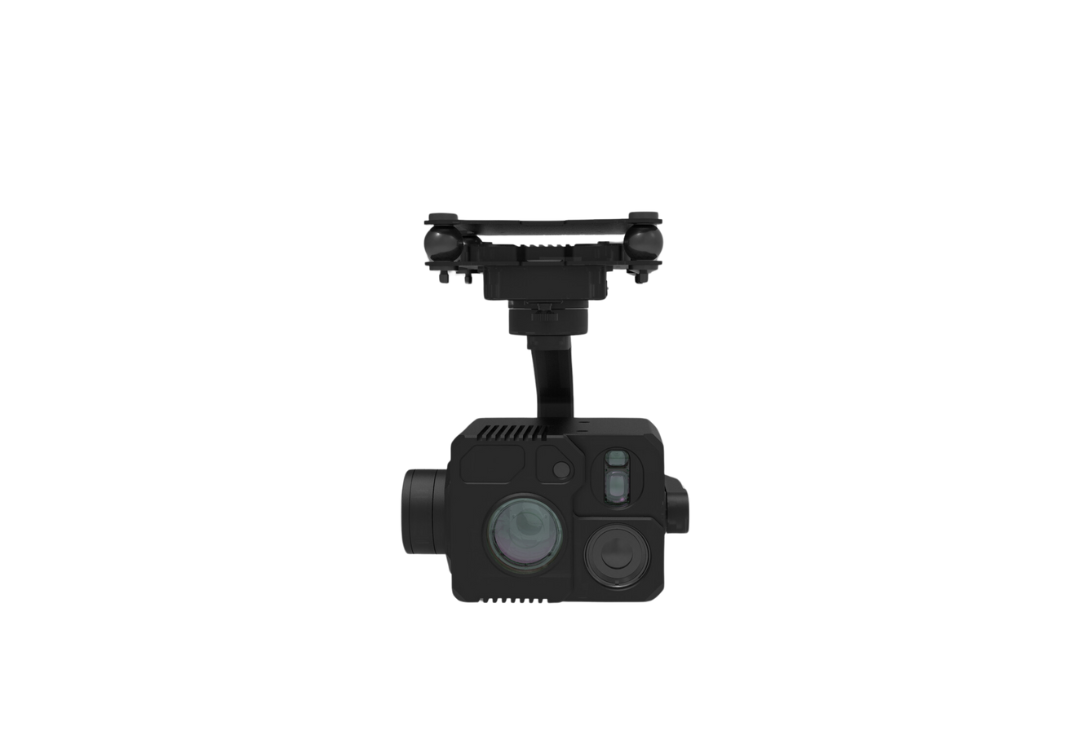

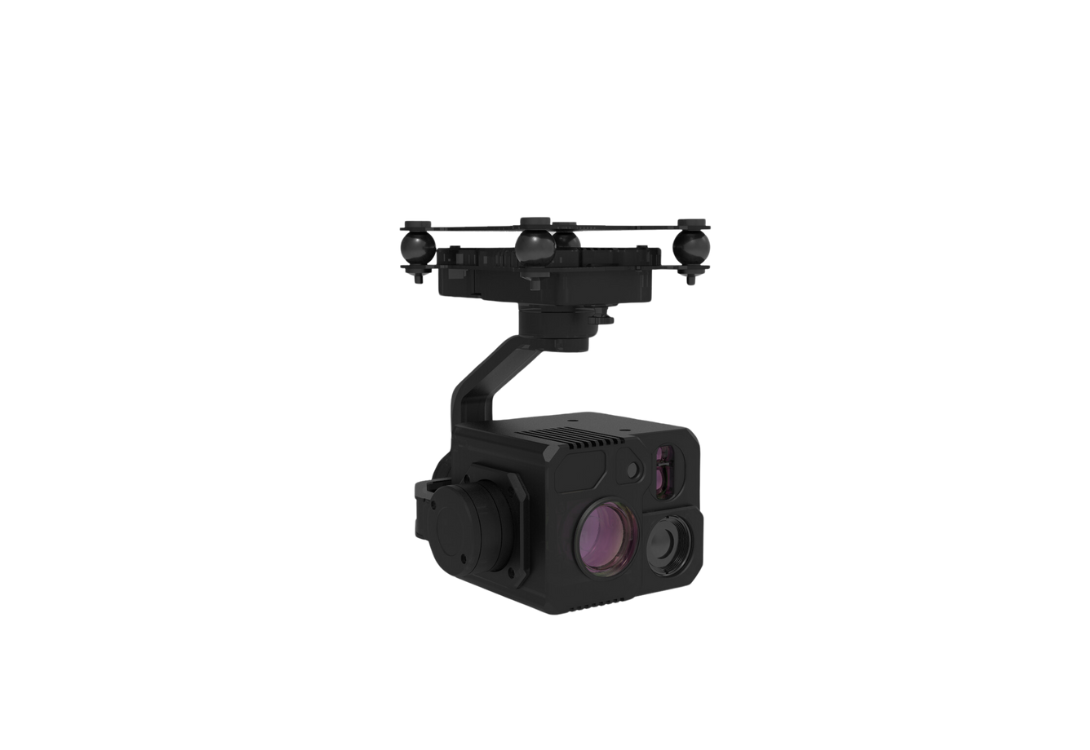

10x 2MP Visible 640x512 Thermal Imaging Laser Range Finder Laser Pointer Multi-spectral Gimbal Camera

VS-UAP2010-GV6019-L15-P

· 2MP QHD visible sensor

· 10X optical zoom lens
· 640x512 Uncooled FPA Thermal detector
· 19mm athermalized lens
· 1500m Laser range finder, 1000m Laser pointer

· 3-Axis gimbal stabilizer, ± 0.01 degree control precision
· AI target classification of human/vehicle
· Smart target tracking

10x 2MP Visible 640x512 Thermal Imaging Laser Range Finder Laser Pointer Multi-spectral Gimbal Camera

Overview Specifications Download

GET PRICING/INFO

10x 2MP Visible 640x512 Thermal Imaging Laser Range Finder Laser Pointer Multi-spectral Gimbal Camera VS-UAP2010-GV6019-L15-P

Outfitted with a 10X optical zoom starlight camera for detailed imaging, this drone gimbal ensures swift focusing and intelligent tracking. It boasts 640x512 high-definition thermal imaging, a 1200-meter laser rangefinder, and a 1000-meter laser illuminator. The high-precision three-axis stabilization gimbal, enhanced with dual-layer physical vibration reduction, offers seamless 360° rotation for comprehensive surveillance capabilities.

Features

Intelligent identification & tracking

Based on deep learning, the gimbal camera support intelligent target classification of people and vehicles, and performing auto target tracking

Excellent stability

The advanced 3-axis stabilizing PTZ works closely with the mounting platform, with a high-speed processor controlling the precise operation of the motors, compensating for every subtle movement, so that the camera maintains a stable shooting angle at all times.

360° rotation

The superior mechanical design structure achieves 360° dead-angle-free rotation, allowing free access to an uninhibited all-round view.

Excellent Multi-spectrum Image

The 10x 2MP FHD optical zoom camera and VGA thermal detector, a strong combination ensures clear details from far away in any light conditions. With addition 1500m laser range finder and 1000m laser pointer to help providing all-round information of targets.

AI based multi-target Human/Vehicle classification and smart tracking

High Speed Truck Tracking with Bispectral Drone Gimbal Camera

Specifications

Overall Parameters
Dimensions	125(L)×120(W)×157(H) mm
Weight	Pod	780g
	Shock Absorption	130g
Quick Release	support
Working Temperature	-20℃～60℃
Storage	TF card (up to 128G, class 10, FAT32 or ex-FAT)
Input Voltage	4S-12S (15V-60V)
Control Signal	SBus, serial port, CAN, network port
The Output Voltage	5V (connected to SBus)
Dynamic Current	800～1200mA at 15V
Working Current	900mA at 15V
Video Output	IP (1080p/720p 30/60fps)
Video Storage	MP4 (1080P 30fps/s)
Photo Storage	JPG (1920*1080)
PTZ Parameters
Vibration Angle	Pitch /Roll	±0.01°,
	Yaw	±0.01
Control Rotation Range	Pitch	-45°～90°,
	Yaw	±360°*N
Mechanical Rotation Range	Pitch	-60°～150°
	Roll	±70°
	Yaw	±360°*N
Output Interface	GH1.25 interface: 4-core (network port), 5-core (serial port, can), 2-core (SBus) XT30 (power)
Operating Mode	Orientation lock, course following, one click down, one click to return to center
Visible Parameters
Image Sensor	Sony 1/2.8" CMOS
Effective Pixels	2 million
Focal Length	4.7～47mm
Zoom Factor	10x optical zoom
Focus Speed	<1S
Horizontal viewing angle	1080p	69.9°(W)~8.7°(T)
Signal-to-Noise Ratio	≥55 dB
Minimum Illumination	Color: 0.01lux@F1.6
Exposure Control	Auto, manual, priority mode (shutter priority and aperture priority), brightness, EV compensation, slow AE
White Balance	Automatic, ATW, indoor, outdoor, one-touch WB, manual WB, outdoor automatic, sodium vapor lamp (fixed/automatic/outdoor automatic)
Shutter Speed	1/1 to 1/30000 seconds
BLC	support
Aperture Control	automatic
Defog	support
Thermal Parameters
Focal Length	19mm
Horizontal FOV	22.85°
Vertical FOV	18.37°
Diagonal FOV	29.02°
Operating Mode	Uncooled long wave (8μm～14μm) thermal imager
Detector Pixels	640*512
Pixel Size	12μm
False Color Type	White hot, rainbow, lava, iron red, etc.
Infrared Laser Range Finder
Scope	5～1500 meters
Working Current	80mA (max)
Beam	905nm pulsed laser
Divergence Angle	3mrad
Laser Pulse Frequency	1Hz
Power	<1mW (eye safety ensure)
Ranging Mode	pulse
Location Analysis	Latitude and longitude of target
Laser Pointer
Power	50mW
Color	green
Indicate Distance	1000m (non-scorching sun, direct sunlight environment)
Trigger on	support
EO/IR Camera Target Tracking
Deviation Update Rate	30Hz
Deviation Output Delay	<30ms
Minimum Support Focus Support Ratio	5%
Minimum Supported focus size	16*16 pixels
Maximum Supported Target size	256*256 pixels
Tracking Speed	<32 pixels/fps
Support Memory Time	100 fps
EO Camera AI Recognition Performance
Target Type	cars and people
Simultaneous Detection Quantity	≥10 goals
Minimum Support Ratio
Minimum Target Size	5×5 pixels
Vehicle Detection Rate	≥85%
False Alarm Rate	≤10%
