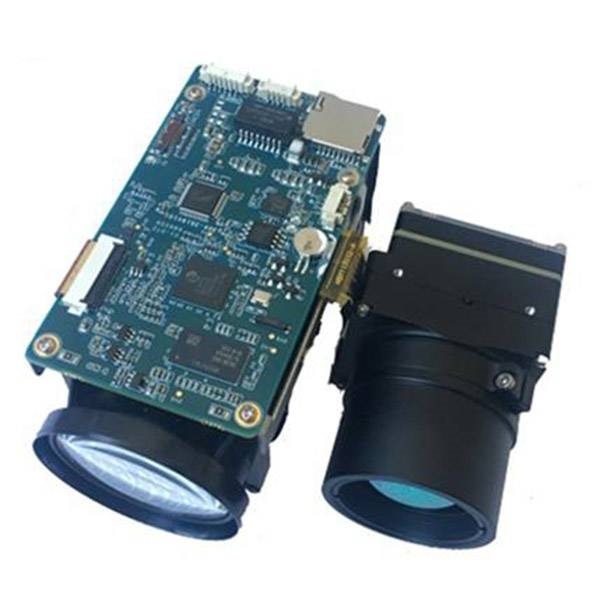

30X 2MP and 640*512 Thermal Dual Sensor Drone Camera Module
VS-UAZ2030NA-RT6-25· Visible:30X optical zoom block camera, 2.13Megapixels.
· Thermal : 25mm lens, max video resolution 1280 * 1024
· 3-Axis gimbal stabilizer,± 0.008 degree control precision
· Supporting the overlay of GPS information into videos, subtitle files, snapshots
· Support intelligent tracking
· Open protocol to facilitate third-party client integration
Visible Module:
> 1/2.8” high sensitivity Back-illuminated image sensor, Ultra HD quality.
> 30× optical zoom, 4.7mm-141mm, Fast and accurate autofocus.
> Max. Resolution: 1920*1080@25/30fps.
> Supports IC switching for true day/night surveillance.
> Supports Electronic-Defog, HLC, BLC, WDR, Suitable for a wide range of applications.
LWIR Module:
> 640*512 12μm Uncooled Vox, 25mm Athermalized lens.
> Supports a wide range of temperature measurement rules with an accuracy of ‡3°C / ‡3%.
> Support Various pseudo-colour adjustments, image detail enhancement system functions.
Integrated Features:
> Network output, the thermal and visible camera have the same web interface and have analytics.
> Supports ONVIF, Compatible with VMS and network devices from leading manufacturers.
|
The payload offers 3-axis stabilization to capture detailed video and still photos, even under extreme environmental conditions. A high-powered zoom means that any movement in the system is magnified, so stability is of utmost importance. The gimbal incorporates leading gimbal technology for stabilization within ±0.008° and the same precision for controls. This enables long-range inspection that is always high in fidelity. |
 |
 |
Practical and convenient ground control software which support pointing zoom, one key return to middle, mouse or touch screen control |
|
Full function, support high temperature detection, intelligent tracking. Using network port to control gimbal, abandoning the traditional HDMI way, has good reliability, strong compatibility and powerful function |
 |
| Visible Module | ||
| Sensor | Type | 1/2.8” Sony Exmor CMOS, 2.16 M pixels |
| Effective Pixels | 2.16 M pixels | |
| Lens | Focal Length | f: 4.7 ～ 141 mm |
| Optical Zoom | 30x | |
| FOV | 61.2~2.2° | |
| Close Focus Distance | 0.1m ～ 1.5m（Wide ～ Tele） | |
| Zoom Speed | 3.5 Sec（Optics, Wide ～ Tele） | |
| Shutter Speed | 1 / 3 ～ 1 / 30000 Sec | |
| Noise Reduction | 2D / 3D | |
| Image Settings | Saturation, Brightness, Contrast, Sharpness, Gamma, etc. | |
| Flip | Support | |
| Exposure Model | Auto/Manual/Aperture/Priority/Shutter Priority/Gain Priority | |
| Exposure Comp | Support | |
| WDR | Support | |
| BLC | Support | |
| HLC | Support | |
| S/N Ratio | ≥ 55dB（AGC Off, Weight ON） | |
| AGC | Support | |
| White Balance | Auto/Manual/Indoor/Outdoor/ATW/Sodium Lamp/Natural/Street Lamp/One Push | |
| Day/Night | Auto (ICR)/Manual (Color, B/W) | |
| Digital Zoom | 16× | |
| Focus Model | Auto/Manual/Semi-Auto | |
| Electronic-Defog | Support | |
| Electronic Image Stabilization | Support | |
| LWIR Module | ||
| Detector | Vox Uncooled Microbolometer, 640*512 | |
| Pixel Pitch | 12μm | |
| Array Size | 640*512 | |
| Spectral Response | 8~14μm | |
| NETD | ≤50mK | |
| Lens | 25mm Athermalized | |
| Temperature measurement range | -20~150℃，0~550℃ | |
| Temperature measurement accuracy | ±3℃ / ±3% | |
| Temperature measurement | Support | |
| Pseudo-colour | Support white heat, black heat, fusion, rainbow, ect. 11kinds of pseudo-colour adjustable | |
| Video & Audio Network | ||
| Video Compression | H.265/H.264/H.264H/MJPEG | |
| Resolution | Channel1：Visible Main Stream: 1080P@25/30fps;
Channel 2：LWIR Main Stream：1280*1024@25fps |
|
| Video Bit Rate | 32kbps ～ 16Mbps | |
| Audio Compression | AAC / MP2L2 | |
| Storage Capabilities | TF card, up to 256GB | |
| Network Protocols | ONVIF, HTTP, RTSP, RTP, TCP, UDP | |
| General | ||
| Video output | Network | |
| Audio IN/OUT | 1-Ch In, 1 -Ch Out | |
| Memory card | 256GB Micro SD | |
| External Control | 2x TTL3.3V, Compatible with VISICA and PELCO protocol | |
| Power | DC +9 ～ +12V | |
| Power Consumption | Static：4.5W，Max：8W | |
| Operating Conditions | -30°C～+60°C、20﹪ to 80﹪RH | |
| Storage Conditions | -40°C～+70°C、20﹪to 95﹪RH | |
| Dimensions (Length* Width*Height: mm) | Visible：94.89*49.6*54.15mmThermal：51.9*37.1*37.1 | |
| Weight | Visible: 158g thermal：67g | |
