SWIR 1550nm 500m Laser Illuminator Module

> Smart Sync Zoom, perfectly compatible with the View Sheen SWIR Zoom Camera Modules.

> -20°C extreme cold start.

> Smart match, Hot-swappable.

> Intelligent auto-dimming.

Module: IR-1550-2W-500

Specification

Specifications
MAX. Distance	≥500m
Wavelength	1550±15nm
Illumination Angle	Sync Zoom，1.0° ～ 30° continuous
Zoom Speed	≤4 Sec（Tele～Wide）
Laser chip power	2.2±0.2W
Output Power	2.0±0.2W
Power	DC12V±10%
Power Consumption	＜21.0W
Control Interface	RS-485, Comm UART
Protocols	Pelco-D / View Sheen Private Commands: 9600bps (default); 4800bps, 2400bps (options)
Work Temperature	-20℃～+55℃
Storage Temperature	-20℃~70℃
Dimension	65mm×66mm×128mm（W×H×L）
Weight	400g

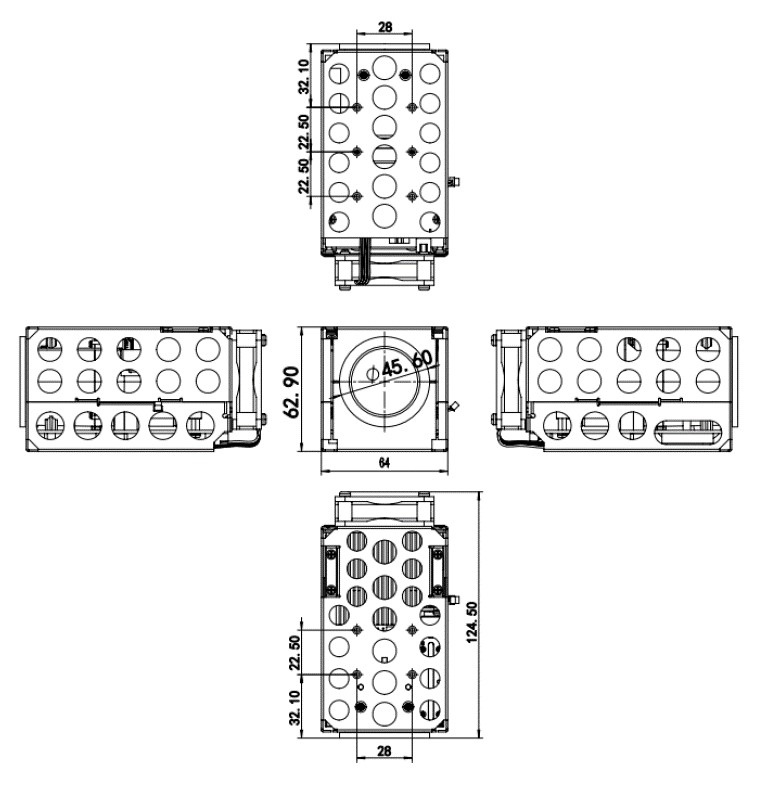

Dimension
