Sticking to the belief of "Creating products of high quality and making friends with people from all over the world", we always put the interest of customers in the first place for 30x optical zoom lens, long range zoom camera, 4k drone with gimbal, Adhering to the business philosophy of 'customer first, forge ahead', we sincerely welcome clients from at home and abroad to cooperate with us.
Factory source Camera Zoom 30x – 30X 6~180mm 4K Network Zoom Block Camera Module – ViewsheenDetail:
Technical Specification
Model | Description |
Sensor | Image Sensor | 1/1.7″ Sony Exmor CMOS |
Lens | Focal Length | 6mm～180mm, 30x Zoom |
Aperture | F1.5~F4.3 |
Close Focus Distance | 0.1m~1.5m (Wide～Tale) |
Angle of View | 63°~2.6° |
Video & Audio Network | Compression | H.265/H.264/H.264H/MJPEG |
Audio Codec | ACC, MPEG2-Layer2 |
Audio In Type | Line-In, Mic |
Sampling Frequency | 16kHz, 8kHz |
Storage Capabilities | TF card, up to 256G |
Network Protocol | Onvif, HTTP, RTSP, RTP, TCP, UDP |
IVS | Tripwire, Intrusion, Loitering Detection, etc. |
General Event | Motion Detection, Tamper Detection, Audio Detection, No SD Card, SD Card Error, Disconnection, IP Conflict, Illegal Access |
Resolution | 50Hz: 25fps@8Mp(3840×2160); 60Hz: 30fps@8Mp(3840×2160) |
S/N Ratio | ≥55dB (AGC Off, Weight ON) |
Minimum Illumination | Color: 0.1Lux/F1.5; B/W: 0.01Lux/F1.5 |
EIS | ON/OFF |
Defog | ON/OFF |
Exposure Compensation | ON/OFF |
HLC | ON/OFF |
Day/Night | Auto/Manual |
Zoom Speed | Approx 3.5s(Wide-Tele) |
White Balance | Auto/Manual/ATW/Indoor/Outdoor/ Outdoor Auto/ Sodium Lamp Auto / Sodium Lamp |
Electronic Shutter Speed | Auto Shutter (1/3s~1/30000s)Manual Shutter (1/3s~1/30000s) |
Exposure | Auto/Manual |
Noise Reduction | 2D, 3D |
Flip | Support |
External Control | 2*TTL |
Focus Mode | Auto/Manual/Semi-Auto |
Digital Zoom | 4x |
Operating Conditions | (-30°C~+60°C/20% to 80%RH) |
Storage Conditions | (-40°C~+70°C/20% to 95%RH） |
Power Supply | DC 12V±15% (Recommend: 12V) |
Power Consumption | Static power: 4.5W, Sports power: 5.5W |
Dimensions(L*W*H) | Approx. 126mm*54mm*68mm |
Weight | Approx. 410 |

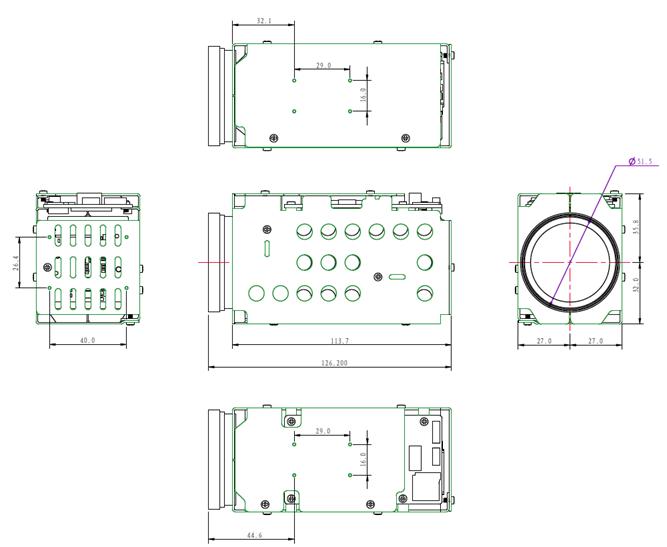

Dimensions
| Type | Pin No. | Pin Name | Description |
(1) 4PIN Internet Interface | 1 | ETHRX- | Internet RX- |
2 | ETHRX+ | Internet RX+ |
3 | ETHTX- | Internet TX- |
4 | ETHTX+ | Internet TX+ |
(2) 6PIN Power&UART Interface | 1 | DC_IN | DC12V±10% |
2 | GND | GND |
3 | RXD1 | RXD(TTL3.3V)，Pelco Protocol |
4 | TXD1 | TXD(TTL3.3V)，Pelco Protocol |
5 | RXD0 | RXD(TTL3.3V)，Visca Protocol |
6 | TXD0 | TXD(TTL3.3V)，Visca Protocol |
(3) Audio&Video Interface | 1 | AUDIO_OUT | Audio Out(Line Out) |
2 | GND | GND |
3 | AUDIO_IN | Audio In(Line In) |
4 | GND | GND |
5 | VIDEO_OUT | Video Out(CVBS) |
Product detail pictures:
