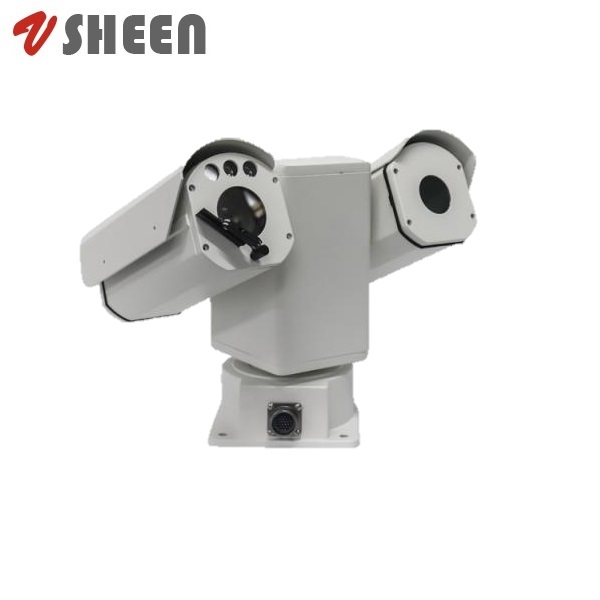

Chinese wholesale Thermal Inspection Camera - Thermal & Optical Bi-spectrum Thermography Network Positioning System – Viewsheen
Chinese wholesale Thermal Inspection Camera - Thermal & Optical Bi-spectrum Thermography Network Positioning System – ViewsheenDetail:
Specification
| Visible | Sensor | 1/1.8″ Sony Progressive Scan CMOS |
| Effective Pixels | 4.17 M pixels | |
| Focal Length | 6.5 ～ 240 mm | |
| Zoom | 37× | |
| Aperture | FNo: 1.5 ～ 4.8 | |
| HFOV | 61.8° ～ 1.86° | |
| Close Focus Distance | 1m ～ 1.5m (Wide ～ Tele) | |
| Resolution | Main Stream: 2688*1520@50/60fps; 1080P@25/30fps; 720P@25/30fps Sub Stream1: D1@25/30fps; CIF@25/30fps Sub Stream2: 1080P@25/30fps; 720P@25/30fps; D1@25/30fps | |
| S/N Ratio | ≥55dB（AGC Off，Weight ON） | |
| Image Stabilisation | Electronic Image Stabilisation（EIS） | |
| Min Illumination | Colour: 0.005Lux@ (F1.5, AGC ON) | |
| Defog | Electronic-Defog | |
| Exposure Comp | Support | |
| WDR | Support | |
| HLC | Support | |
| Day/Night | Auto (ICR)/Manual (Colour, B/W) | |
| Heat Haze Reduction | Support | |
| Zoom Speed | 4 Sec (Optics, Wide ～ Tele) | |
| White Balance (WB) | Auto/Manual/Indoor/Outdoor/ATW/Sodium Lamp/Natural/Street Lamp/One Push | |
| Shutter Speed | 1/1 ～ 1/30000 Sec | |
| Exposure Model | Auto/Manual/Aperture Priority/Shutter Priority/Gain Priority | |
| Noise Reduction | 2D / 3D | |
| Digital Zoom | 16× | |
| Flip | Support | |
| Focus Model | Auto/Manual/Semi-Auto | |
| LWIR | Detector Type | Uncooled VOx Microbolometer |
| Pixel Pitch | 12μm | |
| Resolution | 640（H）×512（V）(the resolution of output image is 1280 × 1024) | |
| Spectral Band | 8~14μm | |
| Focal Length | 25/35/55 mm Fixed Lens, Athermalized | |
| Pseudo-Colour | 9 pseudo-colours including white hot, black hot and rainbow adjustable | |
| Temperature measurement range | Low temperature mode: -20℃ ~ 150℃ (-4℉ ~ 302℉) High temperature mode: 0℃ ~ 550℃ (32℉ ~ 1022 ℉) | |
| Temperature measurement accuracy | ±3℃ / ±3% | |
| Temperature measurement methods | 1. Support real-time point temperature measurement function. 2. each pre-set point can be set: point temperature measurement: 12; area temperature measurement: 12; line temperature measurement: 12; support for each pre-set point (point + area + line) up to 12 simultaneous temperature measurement, area support for circular, square and irregular polygon (not less than 7 bending points). 3. Support temperature alarm function. 4. Support isothermal line, colour bar display function, support temperature correction function. 5. The unit of temperature measurement Fahrenheit, Celsius can be set. 6. Support real-time temperature analysis, historical temperature information query function. | |
| Global temperature measurement | Support Heat Map | |
| Temperature Alarm | Support | |
| Network & Intelligence Function | Network Protocols | ONVIF, HTTP, RTSP, RTP, TCP, UDP |
| Compression | H.265/H.264/H.264H/MJPEG | |
| Storage Capabilities | TF card, up to 256GB | |
| IVS | Tripwire, Intrusion, Loitering, etc. | |
| General Events | Motion Detection, Tamper Detection, Scene Changing, Audio Detection, SD Card, Network, Illegal Access | |
| Pan & Tilt Unit | Speed | Pan: 0.1°～80°/Sec; Tilt: 0.1°～50°/Sec; |
| Movement Range | Pan: 360° continuous rotation; Tilt: -90° ~ +90° | |
| Presets | ≤200 | |
| Proportional Zoom | Support | |
| Tour | Support | |
| Auto Scan | Support | |
| Fan/Heater | Support | |
| Protocol | Pelco-D | |
| Wiper | Support | |
| General | Ethernet | 1, RJ45 |
| Audio | 1-ch in; 1-ch out | |
| Alarm | 1-ch in; 1-ch out | |
| Power | 24V DC | |
| Power Consumption | ≤40W | |
| Working Temperature | -40℃ ~ +65℃ | |
| Working Humidity | ≤90%RH (no condensation) | |
| Weight | ≤7.5KG | |
| Protection Level | IP67 Protection |
Dimensions
Product detail pictures:
Related Product Guide:
fsjdflsdfsdfsdfdsfsdfsafs
It really is our obligation to satisfy your requirements and efficiently serve you. Your fulfillment is our greatest reward. We're hunting forward to your check out for joint development forChinese wholesale Thermal Inspection Camera - Thermal & Optical Bi-spectrum Thermography Network Positioning System – Viewsheen, The product will supply to all over the world, such as: Greek, Mongolia, Romania, Ought to any of these products be of curiosity to you, remember to allow us to know. We are going to be satisfied to give you a quotation on receipt of one's in depth specs. We've our private experienced R&D enginners to meet any of one's requriements, We appear forward to receiving your enquires soon'and hope to have the opportunity to work together with you in the future. Welcome to check out our company.
