58X OIS 6.3~365mm 2MP Network AI ISP Long Range Zoom Camera Module
VS-SCZ2058KIO-8
1/1.8″ 4MP Sensor
6.3~365mm 58x Zoom for long range surveillance
Optical Image Stabilization
IP & LVDS dual output
6.3~365mm 58x Zoom for long range surveillance
Optical Image Stabilization
IP & LVDS dual output
58X OIS 6.3~365mm 2MP Network AI ISP Long Range Zoom Camera Module
VS-SCZ2058KIO-8
> Focal length:6.3~365mm, 58× Zoom
> 1/1.8“Sony Progressive Scan CMOS, 4.17 Megapixel
> Supports Optical-Defog,Optical Image Stabilisation,WDR, BLC, HLC, adaptable to multiple application scenarios.
> Clearer:Multiple pieces of aspherical optical glass, excellent transparency-enhancing coating for greatly reduced dispersion and improved resolution.
> Accurate and fast autofocus: with stepper motors drive for multiple applications
> Max. Resolution: 1920×1080@30/25fps
> Min. Illumination: 0.005Lux/F1.5(colour)
> Ease of installation: All-in-one design, plug and play.
Features
AI Analytics
Adopting one of the most advanced AI ISP in industry. This AI camera module is capable of running various machine learning trained detection algorithms (human/vehicle/vessel classification etc) with excellent accuracy, reducing most of the false alert and archiving smart multi-target tracking.

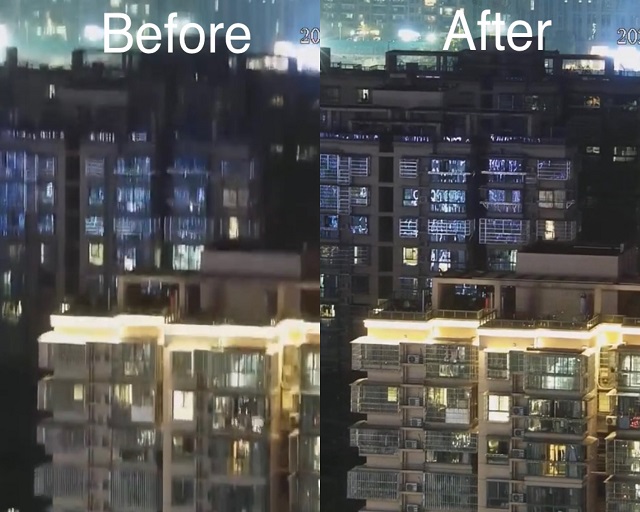

OIS (Optical Image Stabilization) for Sharper, Clearer Images
The camera module feature built-in multi-axis OIS (optical image stabilization) technology, which helps to reduce blur caused by camera shake and subject motion.This results in sharper, clearer images and videos, even in low-light conditions or when using long focal lengths. By minimizing blur and improving image quality, OIS can help you capture stable visuals in any situation without missing a key point.
|
The 58x OIS zoom camera module is a high performance long range optical image stabilization zoom camera module. Powerful 58x zoom ,6.3~365mm,which can provide very long sight distance. |
| The OIS lens has an internal motor that physically moves one or more of the glass elements inside the lens as the camera moving. This results in a stabilizing effect, countering the motion of the lens and the camera (from the shaking of the operator’s hands or effect of the wind, for example) and allowing a sharper, less-blurry image to be recorded. |
 |
 |

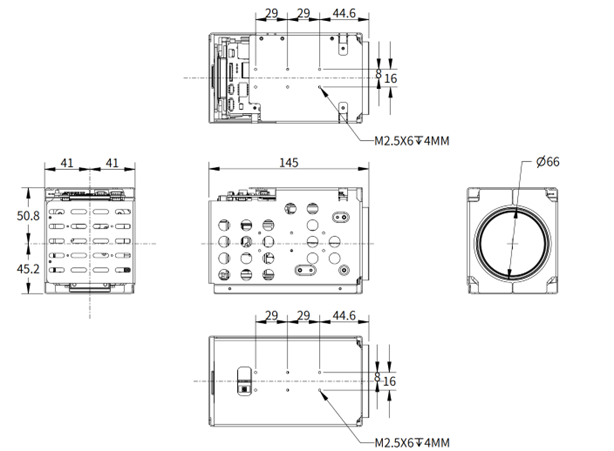

Dimensions |
Specifications
| Camera | ||
| Sensor | Type | 1/1.8 " Sony Progressive Scan CMOS |
| Effective Pixels | 2.16M pixels | |
| Lens | Focal Length | 6.3 ～ 365mm |
| Zoom | 58 × | |
| Aperture | FNo: 1.5 ～ 6.4 | |
| HFOV (°) | 63.4° ～ 1.2° | |
| VFOV (°) | 38.3° ～ 0.6° | |
| DFOV (°) | 70.7° ～ 1.4° | |
| Close Focus Distance | 5m ～ 10m (Wide ～ Tele) | |
| Zoom Speed | 8 Sec (Optics, Wide ～ Tele) | |
| Video & Audio Network | Compression | H.265/H.264/H.264H/MJPEG |
| Resolution | Main Stream: 1920*1080@@50/60fps;
LVDS：1920*1080@50/60fps |
|
| Video Bit Rate | 32kbps ～ 16Mbps | |
| Audio Compression | AAC/MP2L2 | |
| Storage Capabilities | TF card, up to 256GB | |
| Network Protocols | ONVIF, HTTP, RTSP, RTP, TCP, UDP | |
| General Events | Motion Detection, Tamper Detection, Scene Changing, Audio Detection, SD Card, Network, Illegal Access | |
| IVS | Tripwire, Intrusion, Loitering, etc. | |
| Upgrade | Support | |
| Min Illumination | Colour: 0.005Lux/F1.5 @ (F1.5, AGC ON) | |
| Shutter Speed | 1/1 ～ 1/30000 Sec | |
| Noise Reduction | 2D / 3D | |
| Image Settings | Saturation, Brightness, Contrast, Sharpness, Gamma, etc. | |
| Flip | Support | |
| Exposure Model | Auto/Manual/Aperture Priority/Shutter Priority/Gain Priority | |
| Exposure Comp | Support | |
| WDR | Support | |
| BLC | Support | |
| HLC | Support | |
| S/N Ratio | ≥ 55dB（AGC Off, Weight ON） | |
| AGC | Support | |
| White Balance (WB) | Auto/Manual/Indoor/Outdoor/ATW/Sodium Lamp/Natural/Street Lamp/One Push | |
| Day/Night | Auto (ICR)/Manual (Colour, B/W) | |
| Digital Zoom | 16× | |
| Focus Model | Auto/Manual/Semi-Auto | |
| Defog | Electronic-Defog / Optical-Defog | |
| Image Stabilisation | Electronical Image Stabilisation (EIS) / Optical Image Stabilisation (OIS) | |
| External Control | 2× TTL3.3V, Compatible with VISCA and PELCO protocols | |
| Network port | Giga Bit Ethernet | |
| Video Output | Network, LVDS | |
| Baud Rate | 9600 (Default) | |
| Operating Conditions | -20℃ ～ +60℃, 20﹪ to 80﹪RH | |
| Storage Conditions | -40℃ ～ +70℃, 20﹪ to 95﹪RH | |
| Weight | 930g | |
| Power Supply | +9 ～ +12V DC (Recommend: 12V) | |
| Power Consumption | Static: 3.5W; Max: 7W | |
| Dimensions (mm) | Length * Width * Height：145*82*96 | |
| Install the positive direction | The main board of the camera is facing down | |
