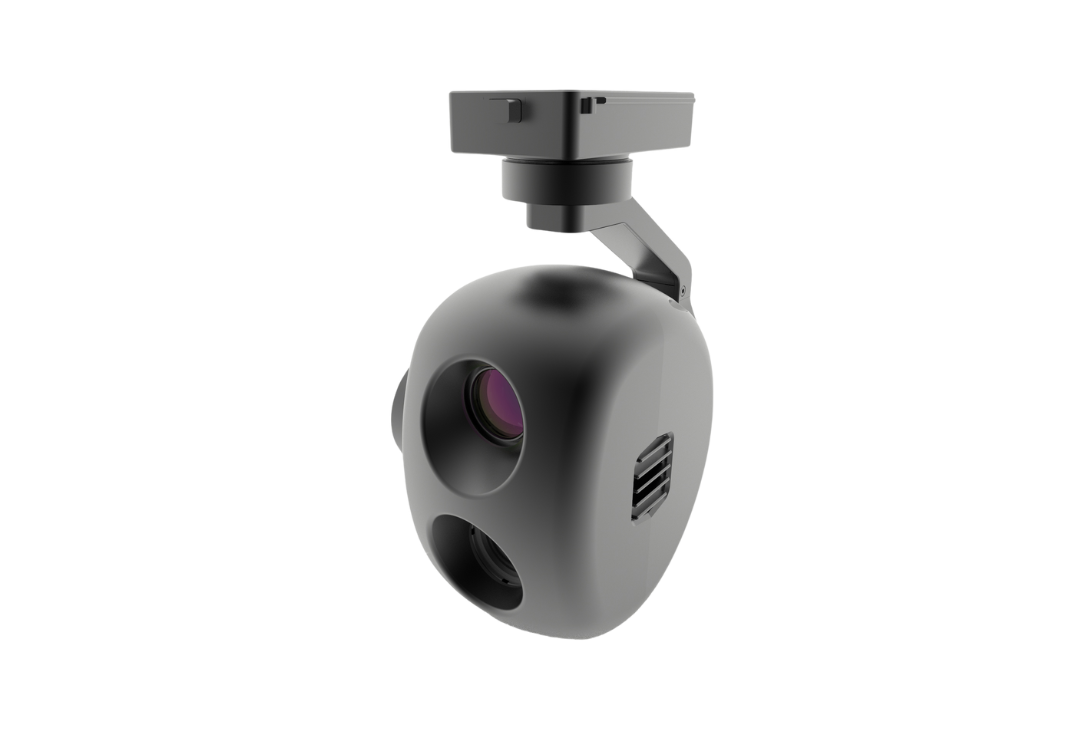

4K 3.5X Zoom & 384*288 Dual Sensor Mini Thermal Gimbal Camera
VS-UAP8003K-RT3/RV3· Ultra light weight
· 3.5x 4k visible light zoom camera
· 19mm 384 thermal lens
· Three-axis PTZ, with ± 0.008° accuracy
> Ultra light weight, only 397g
> High cost performance
> 3.5x 4k visible light zoom camera
> Vanadium oxide uncooled infrared camera with optional global temperature measurement function
> The three-axis stability increasing PTZ, with ± 0.008 ° control stability increasing accuracy, is leading in the industry.
> The ground station supports pointing zoom, one click to center, mouse or touch screen to operate the pod, which is easy to control
With target tracking function
> Real time data transmission of network port
|
Specification |
|
|
Model |
UAP8003K-RT3 |
|
Operating Voltage |
12V-25V |
|
Power |
＜6W |
|
Weight |
397g(Without IDU) |
|
Memory Card |
Micro SD |
|
Dimension(L*W*H) |
121×77×142mm(Without IDU) |
|
Interface |
Ethernet(RTSP) |
|
Live transmission resolution |
Thermal：704×576 Visible：4K、1080P |
|
ENVIRONMENTAL |
|
|
Work Temperature Range |
-10~55°C |
|
Storage Temperature Range |
-20~70°C |
|
GIMBAL |
|
|
Angular Vibration Range |
±0.008° |
|
Mount |
Detachable |
|
Controllable Range |
Tilt：+70° ~ -90°；Yaw：360°Endless |
|
Mechanical Range |
Tilt：+75° ~ -100°;Yaw: 360°Endless |
|
Max Controllable Speed |
Tilt：120º/s; Pan180º/s； |
|
Auto-Tracking |
Support |
|
Cameras |
|
|
Visible |
|
|
Sensor |
CMOS:1/2.3″; 12.71Megapixel |
|
Lens |
3.5X Optical Zoom, F: 3.85~13.4mmmm, FOV(Horizontal): 82~25° |
|
Photo Formats |
JPEG |
|
Video Formats |
MP4 |
|
Operation Modes |
Capture, Record |
|
Defog |
E-Defog |
|
Exposure Mode |
Auto |
|
Max.Resolution |
3840×2160@25/30fps |
|
Noise Reduction |
2D/3D |
|
Electronic Shutter Speed |
1/3~1/30000s |
|
OSD |
Support |
|
TapZoom |
Support |
|
TapZoom Range |
1× ~ 3.5× Optical Zoom |
|
One Key to 1x Image |
Support |
|
Thermal |
|
|
Thermal Imager |
12μm 384x288 Vox Uncooled Microbolometer |
|
Max.Resolution |
704x576@25fps |
|
Sensitivity (NETD) |
≤50mk@25°C,F#1.0 |
|
Full Frame Rates |
50Hz |
|
Lens |
19mm,Athermalized |
| Measuring Range | Two gears: - 20 ℃~+150 ℃, 0 ℃~+550 ℃, default - 20 ℃~+150 ℃ |
| Measuring Accuracy | ± 3 ℃ or ± 3% @ ambient temperature - 20 ℃～ 60 ℃ |
| Resolution | ±0.1m |
| Operating Electric Current | 80mA ~ 150mA |
| Work Temperature Range | -20° ~ +55° |
| Emit beam | 905nm Pulsed Laser |
| Divergence | 2.5 Milliradian |
| Laser pulse frequency | 1HZ |
| Power | ≤1 milliwatt Eye safety |
| Ranging method | Pulse mode |
