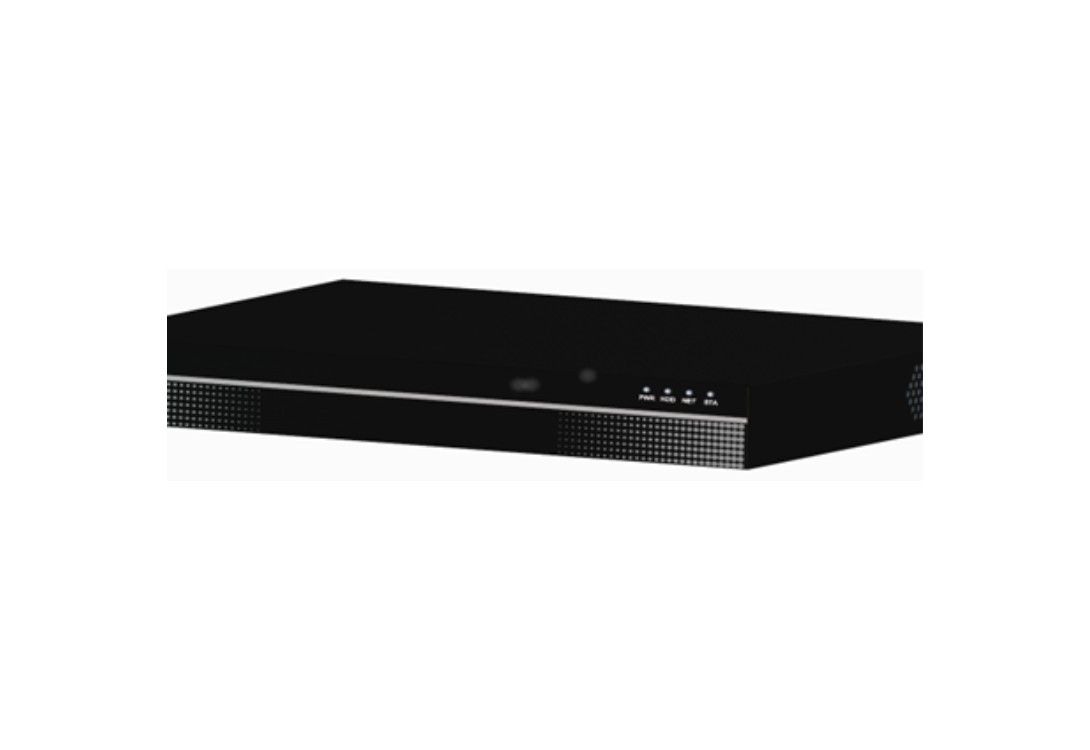

32CH 4K AI NVR
VS-SVR5232
· Max. decoding capability: 12×1080P@30fps
· AI by device capability
· Cyber Security 2.0
· NDAA compliant
· AI by device capability
· Cyber Security 2.0
· NDAA compliant
32CH 4K AI NVR
VS-SVR5232
> NDAA Compliant AI NVR
> Remote surveillance, live view and video play on WEB or GUI.
> Max. decoding capability: 12×1080P@30fps. Supports adaptive decoding.
> Supports mainstream cameras of ONVIF and RTSP protocols.
> H.264/.H265/Smart H.264+/Smart H.265+/MJPEG.
> 1 VGA/1 HDMI simultaneous video output by default, maximum resolution 4K
> AI by device: 2-channel face detection and recognition ; or 4-channel perimeter detection; or 4-channel SMD; up to 20 face databases and 20,000 face images.
> Cyber Security 2.0.
Specifications
|
Smart Video Recorder |
||
| System | Processor | Industrial-grade embedded microcontroller |
| Operating System | Linux | |
| Operating Interface | WEB/Local GUI | |
| Video | IP camera input | 32 channels |
| Bandwidth | 256Mbps | |
| Resolution | 16MP/12MP/8MP/7MP/6MP/5MP/4MP/3MP/1080p/720p/D1/CIF | |
| Decoding capability | 12-ch@1080P | |
| Video Output | 1 × VGA, 1 × HDMI (support Homogeneous video sources output); max. 4K video for HDMI and 1080p for VGA | |
| Multi-Screen display | 1/4/8/9/16 | |
| Compression | H.265;Smart265;H.264;Smart264;MJPEG | |
| Playback | 16-ch | |
| Intelligence | AI OPS(Operation Per Second) | Internal: 2.25T |
| EMMC | Internal: 16G | |
| AI Function | Mask and Safety Helmet Detection, Pedestrian and Vehicle Detection, Face Detection, Perimeter Detection | |
| Audio | Audio Input | 1 |
| Audio Output | 1 | |
| Loud Speaker | 1 | |
| Audio Compression | PCM/G711A/G711U/G726/AAC | |
| Network | Network Protocol | HTTP、HTTPS、 TCP/IP、IPv4、RTSP、UDP、 NTP、 DHCP、 DNS、CGI |
| Interoperability | Onvif、GB28181、RTSP | |
| Browser | Chrome、firefox、Edge | |
| Playback | Record Mode | Manual record; alarm recordings; MD recordings; scheduled recordings |
| Storage Mode | Local HDD, network | |
| Backup | USB Storage device | |
| Playback function | 1. Play/pause/stop/slow/quick/backward/by frame 2. Full screen, backup (video clip/file) partial zoom in, and audio on/off | |
| Alarm | General Alarm | Motion detection, privacy masking, video loss, IPC alarm |
| Abnormal Alarm | Camera offline, storage error, disk full, IP and MAC conflict, lock login, Cyber Security exception | |
| Trigger Events | Recording, snapshot, IPC external alarm output, log, preset, and email | |
| Interfaces | Internal HDD | 2 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature |
| USB | 1 USB2.0,1 USB3.0 | |
| TF Card | 1 | |
| Alarm interface | 4 Input / 2 Output, A/B, Ctrl 12V | |
| Network Port | 2 × RJ-45, 10/100/1000 Mbps | |
| General | Power Supply | DC12V/4A |
| Power Consumption | ≤10W | |
| Operating Temperature | -10℃～＋55℃ | |
| Operating Humidity | 10％～93％ | |
| Case | 1U case | |
| Dimension | Single Unit：350 mm （W）× 260 mm （l）× 50mm（H）Package：430mm × 361mm × 138mm
Accessory Box：300mm × 215mm × 50mm |
|
| Operating Altitude | 3000 m (9843 ft) | |
| Installation | Desktop | |
| Net Weight | 2.98kg (6.57 lb) | |
| Gross Weight | 4.05kg (8.93 lb) | |
