30X 6~180mm NDAA Compliant 4K Network Zoom Block Camera Module

Short Description:

> 1/1.8″ high sensitivity image sensor, Min. Illumination: 0. 01Lux (Colour).

> 30x optical zoom, Fast and accurate autofocus.

> Max. Resolution: 3840*2160@25/30fps.

> Equipped with Sigma Star SSC339G main control chip.

> Supports Electronic-Defog, HLC, BLC, WDR, Suitable for a wide range of applications.

> Supports ICR switching for true day/night surveillance.

> Supports independent configuration of two sets of Day/Night Profiles.

> Supports triple streams, meet the varying demands of stream bandwidth and frame rate for live preview and storage.

> Supports H.265, Higher encoding compression rate.

> Supports IVS: Tripwire, Intrusion, Loitering, etc.

> Supports ONVIF, Compatible with VMS and network devices from leading manufacturers.

> Full functions: PTZ control, Alarm, Audio, OSD.

Module Name: VS-SCZ8030M

CONTACT NOW

Overview

Product Detail

Product Tags

Feedback (2)

The 8030M serial zoom camera modules provide Ultra HD (4K) imaging with 30× optical zoom(6~180mm), delivering full frame rate Ultra HD images over the entire zoom range for very cost effective Short-Medium range surveillance applications.

The camera use Sony STARVIS sensor IMX334 . IMX334 is the latest 8 megapixel starlight level sensor, providing high resolution and excellent illumination which is useful for industries that need intelligent analysis.

The compact construction, support for standard ONVIF protocol and PELCO/VISCA commands make the 8030M series zoom camera modules very easy to integrate into various forms of PTZ cameras, such as speed dome cameras, vehicle PTZ cameras, explosion-proof PTZ cameras, and so on.

It can be used for speed dome cameras, Vehicle PTZ Cameras, Explosion-proof PTZ cameras, Scanning & Target Acquisition Systems integration.

Previous: Bi-Spectrum Dual Sensor Network Dome PTZ Camera

Next: 30× 4K Laser 500m Network Speed Dome Camera


Sensor	Type	1/1.8" Sony Progressive Scan CMOS
	Effective Pixels	8.41 M Pixels
Lens	Focal Length	6 ～ 180mm
	Optical Zoom	30×
	Aperture	FNo: 1.5 ～ 4.3
	HFOV (°)	65.2° ～ 2.4°
	VFOV (°)	39.5° ～ 1.3°
	DFOV (°)	72.5° ～ 2.8°
	Close Focus Distance	1m ～ 2m（Wide ～ Tele）
	Zoom Speed	3.5 Sec（Optics, Wide ～ Tele）
DORI（M）(It is calculated based on the camera sensor specification and the criteria given by EN 62676-4:2015)	Detect	Observe	Recognize	Identify
	3666	1454	733	366
Video & Audio Network	Compression	H.265/H.264/H.264H/MJPEG
	Resolution	Main Stream: 3840*2160@25/30fps; 1080P@25/30fps; 720P@25/30fps Sub-Stream1: D1@25/30fps; VGA@25/30fps; CIF@25/30fps Sub-Stream2: 1080P@25/30fps; 720P@25/30fps; D1@25/30fps
	Video Bit Rate	32kbps ～ 16Mbps
	Audio Compression	AAC/MP2L2
	Storage Capabilities	TF card, up to 256GB
	Network Protocols	ONVIF, HTTP, RTSP, RTP, TCP, UDP
	General Events	Motion Detection, Tamper Detection, Scene Changing, Audio Detection, SD Card, Network, Illegal Access
	IVS	Tripwire, Intrusion, Loitering, etc.
Upgrade		Support
Min Illumination		Colour: 0.01Lux/F1.5; B/W: 0.001Lux/F1.5
Shutter Speed		1/3 ～ 1/30000 Sec
Noise Reduction		2D / 3D
Image Settings		Saturation, Brightness, Contrast, Sharpness, Gamma, etc.
Flip		Support
Exposure Model		Auto/Manual/Aperture Priority/Shutter Priority/Gain Priority
Exposure Comp		Support
WDR		Support
BLC		Support
HLC		Support
S/N Ratio		≥ 55dB（AGC Off, Weight ON）
AGC		Support
White Balance (WB)		Auto/Manual/Indoor/Outdoor/ATW/Sodium Lamp/Natural/Street Lamp/One Push
Day/Night		Auto (ICR)/Manual (Colour, B/W)
Digital Zoom		16×
Focus Model		Auto/Manual/Semi-Auto
Defog		Electronic-Defog
EIS		Support
External Control		2× TTL3.3V, Compatible with VISCA and PELCO protocols
Video Output		Network
Baud Rate		9600 (Default)
Operating Conditions		-30℃ ～ +60℃; 20﹪ to 80﹪RH
Storage Conditions		-40℃ ～ +70℃; 20﹪ to 95﹪RH
Weight		410g
Power Supply		+9 ～ +12V DC
Power Consumption		Static: 4.5W; Max: 5.5W

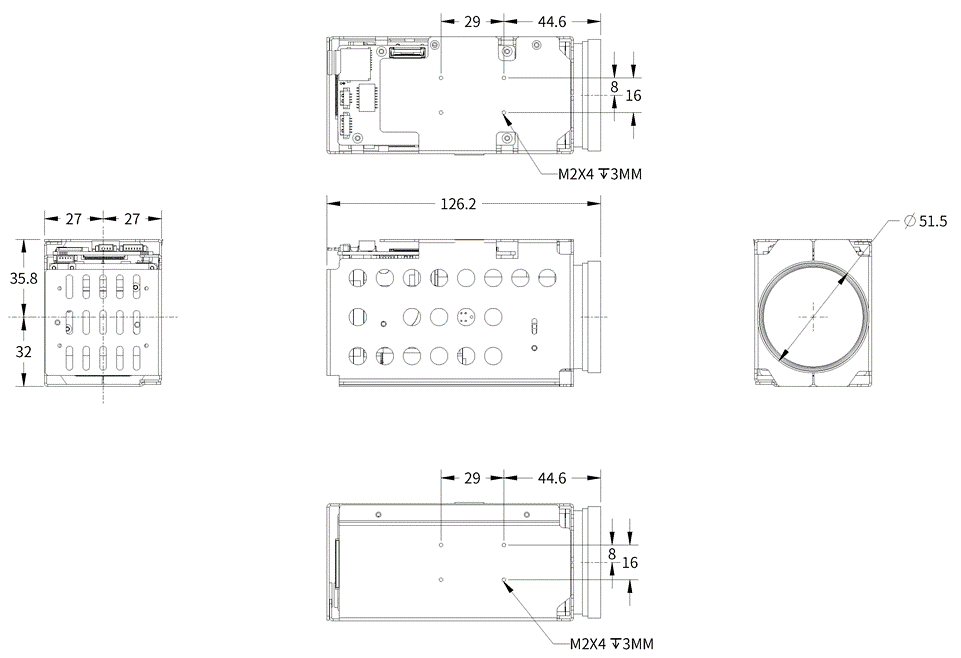

Dimensions (mm)		Length * Width * Height：126.25467.8
