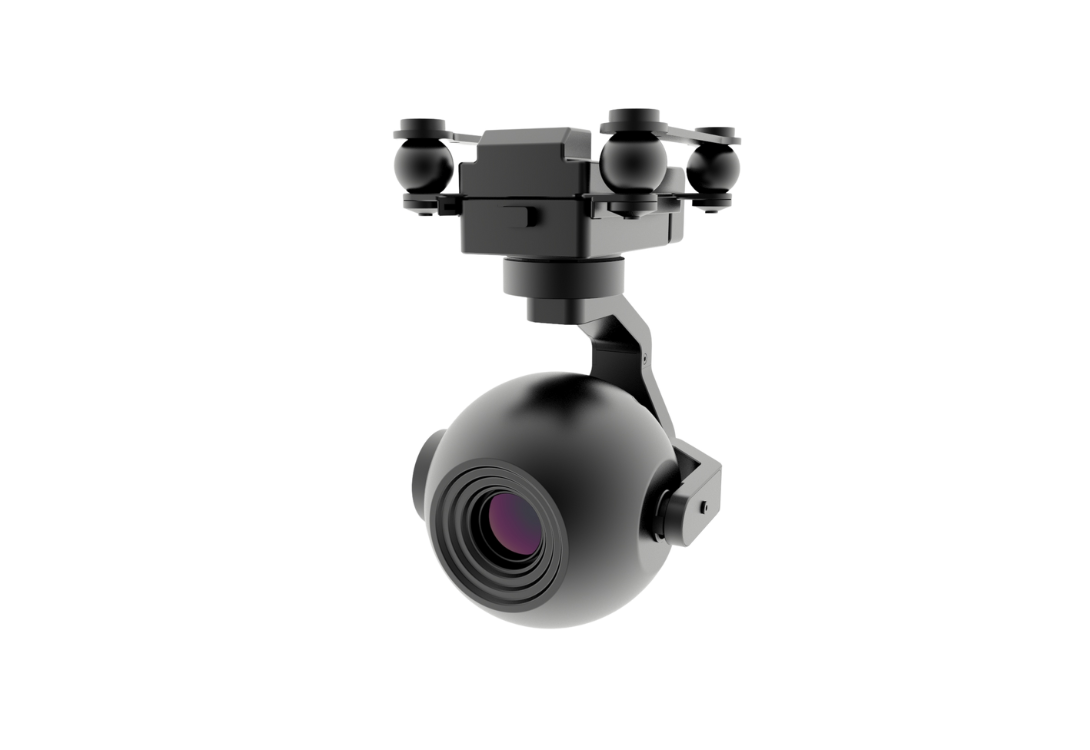

3.5X 12MP Mini 3-Axis Stabilization Drone Gimbal Camera
VS-UAP8003K· Mini 4K/12MP gimbal camera
· 3.5X optical zoom and 4X digital zoom
· 3-Axis gimbal stabilizer, ± 0.01 degree control precision
· Support intelligent tracking
>Mini 4K/12MP gimbal camera.3840*2160@30fps / 4000*3000@10fps
>Using SONY latest 1/2.3 inch sensor, excellent imaging quality
>3.5X optical zoom and 4X digital zoom
>3-Axis gimbal stabilizer, ± 0.01 degree control precision
>Supporting the overlay of GPS information into videos, subtitle files, snapshots
>Support quick disassembly, easy replacement
>Support intelligent tracking
>Open protocol to facilitate third-party client integration
>Very light, only 275g
| Professional mini 4k gimbal camera specially designed for aerial imaging. It’s very light, just 275g. |
 |
 |
3.5x optical zoom camera, low distortion, suitable for aerial photography. |
|
It supports recording GPS information when taking photos, which can be used for Pix4D to create maps and 3D models. |
 |
 |
We provide ground control software and control protocols which is easy to operate. |
| Real footage shot by UAV/Drone Gimbal Camera VS-UAP8003HTM |
| GENERAL | |
| Operating Voltage | 12V~25V DC |
| Power | 6W |
| Weight | Camera 275g , IDU 100g |
| Memory Card | Micro SD |
| Dimension(L*W*H) | 99*79*140mm |
| Video Output | Ethernet (RTSP) |
| Interface | Ethernet |
| ENVIRONMENTAL | |
| Work Temperature Range | -10 ~ 60°C |
| Storage Temperature Range | -20 ~ 70°C |
| GIMBAL | |
| Angular Vibration Range | ±0.01° |
| Mount | Detachable |
| Controllable Range | Tilt: +70° ~ -100°; Pan: ±300° |
| Mechanical Range | Tilt: +75° ~ -110°; Pan: ±310°; Roll: +90° ~﹣50° |
| Max Controllable Speed | Tilt: 120º/s; Pan180º/s； |
| Auto-Tracking | Support |
| Cameras | |
| Sensor | CMOS: 1/2.3″; 12MP |
| Lens | 3.5× Optical Zoom, F: 3.85~13.4mm, FOV(Horizontal): 82~25° |
| Photo Formats | JPEG |
| Video Formats | MP4 |
| Operation Modes | Snapshot, Record |
| Defog | E-Defog |
| Exposure Mode | Auto |
| Resolution | (3840×2160)/30fps, 4000×3000(10fps) |
| Noise Reduction | 2D; 3D |
| Electronic Shutter Speed | 1/3~1/30000s |
| OSD | Support |
| TapZoom | Support |
|
Noise Reduction |
2D/3D |
|
Electronic Shutter Speed |
1/3~1/30000s |
|
OSD |
Support |
|
TapZoom |
Support |
|
TapZoom Range |
1× ~ 3.5× Optical Zoom |
|
One Key to 1x Image |
Support |
|
Thermal |
|
|
Thermal Imager |
Vox Uncooled Microbolometer |
|
Max.Resolution |
704x576@25fps |
|
Sensitivity (NETD) |
≤50mk@25°C,F#1.0 |
|
Full Frame Rates |
50Hz |
|
Lens |
19mm,Athermalized |
| Measuring Range | Two gears: - 20 ℃~+150 ℃, 0 ℃~+550 ℃, default - 20 ℃~+150 ℃ |
| Measuring Accuracy | ± 3 ℃ or ± 3% @ ambient temperature - 20 ℃～ 60 ℃ |
| Resolution | ±0.1m |
| Operating Electric Current | 80mA ~ 150mA |
| Work Temperature Range | -20° ~ +55° |
| Emit beam | 905nm Pulsed Laser |
| Divergence | 2.5 Milliradian |
| Laser pulse frequency | 1HZ |
| Power | ≤1 milliwatt Eye safety |
| Ranging method | Pulse mode |
