Uncooled VOx 640*512 Temperature Measurement Network Thermal Camera Module

>Uncooled VOx 17um 640*512 microbolometer

>NETD is less than 50mk (@25° C, F#=1.0)

>Excellent temperature algorithm with non thermal lens, accurate temperature measurement

>Support PTZ control

>Support ONVIF


  • Module Name: VS-SCM6 Series
  • Overview

    Product Detail

    Product Tags

    The network 640*512 Vox temperature measurement thermal camera module use 17um 640*512 microbolometer which is more sensitive and intelligent.

    This series is designed for industry-grade infrared temperature measurement.

    With high resolution and sensitivity, This series modules can monitor equipment conditions and make warnings in a wide range of industrial applications, such as electric power detection, industrial process control, and others.

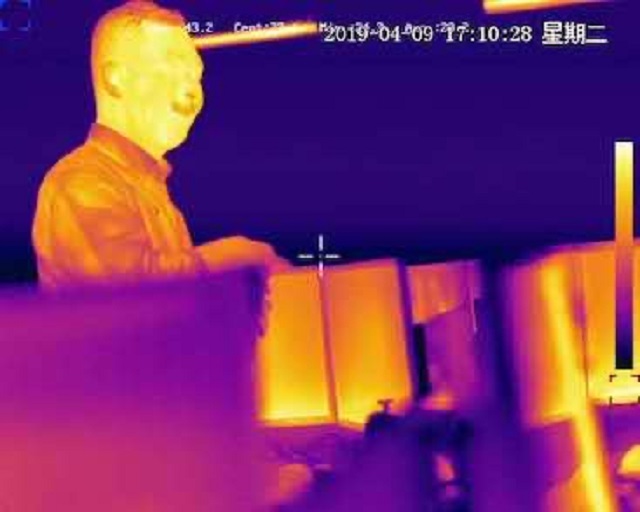

    thermal_body



    Multiple measurement rules:point,line,polygon area.

    In this area,the maximum temperature, the lowest temperature and the average temperature can be detected.



    212  Specification




    VS-SCM6 Series

    Sensor
    Detector
    Uncooled VOx Microbolometer

    Pixel Pitch
    12μm

    Resolution
    640(H)×512(V)

    Spectral Band
    8~14μm

    NETD
    ≤50mK@25℃,F#1.0

    Lens
    Focal Length
    25mm

    F-number
    F1.0/F1.0/F1.2

    Field of view (FOV)
    24.6*18.5/8.3*6.2/9.2*6.9

    Video
    & Network
    Video Compression
    H.265/H.264/MJPEG

    Memory Card
    TF Card,Max.256G

    Protocols & APIs
    Onvif, HTTP, RTSP, RTP, TCP, UDP

    Resolution
    50Hz:25fps@1280×1024

    IVS
    Tripwire/Intrusion/ Loitering

    AGC
    Support

    DDE
    Support


    Temperature Measurement

     Point,Line,Polygon area
    General
    Power Supply
    12V DC ±10%

    Operating Conditions
    -20˚C~+60˚C (-4˚F ~ 140˚F) / 20﹪ to 80﹪RH

    Storage Conditions
    -40˚C~+65˚C (-40˚F ~ 149˚F) / 20﹪ to 95﹪RH

    Dimension

    25mm lens:113mm×51mm×61mm


    Weight

    25mm lens:230g
