86X 10~860mm 2MP Network Ultra Long Range Zoom Block Camera Module

VS-SCZ2086NM-8

1/2″ 2MP Sensor
1920*1080@50/60fps
10~860mm 86x Zoom for ultra long range surveillance

86X 10~860mm 2MP Network Ultra Long Range Zoom Block Camera Module

Overview Specifications Download

GET PRICING/INFO

86X 10~860mm 2MP Network Ultra Long Range Zoom Block Camera Module VS-SCZ2086NM-8

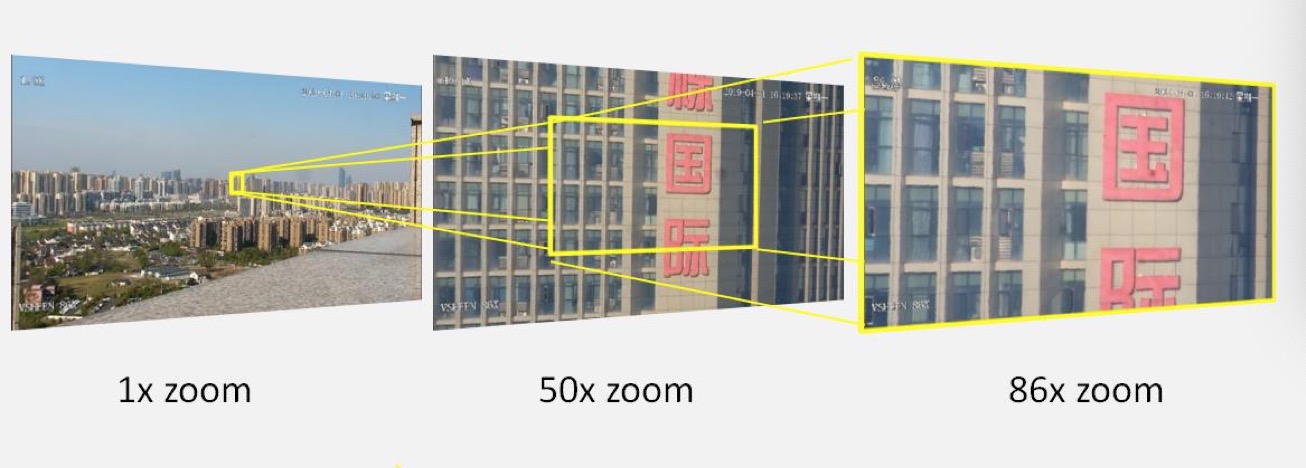

>Powerful 86X zoom, 10~860mm long range zoom, 4X digital zoom

>Using SONY 1/2 inch STARVIS starlight level low illumination sensor, good imaging effect

>Optical defog

>Good support for ONVIF

>Rich interface, two TTL serial port, convenient for PTZ control

>Fast and accurate focusing

Features

Ultra Long Range Coverage

The high quality multi-aspheric customized lens offers 860mm, 86x optical zoom and a bright F2.1 maximum aperture, makes this module the perfect choice for camera systems require more than 15KM vast area coverage

Optical Defog

The camera module supports optical defog feature which utilises the outstanding seeing through capability of NIR band, and combine it with NIR dedicated filter, significantly increase the visibility in foggy or misty scenes.

Instant Focusing

Focusing speed is crucial in a fast transition (zoom operation) from wide area coverage to detailed close ups, especially for fast moving targets. With in-house Synchronized Instant Focusing algorithm, VISHEEN camera modules are able to achieve smooth and rapid zooming, avoiding missing any key moments.

Network and LVDS Dual Outputs for Enhanced Connectivity and Flexibility

The camera module offers both network (Ethernet) and LVDS outputs, providing you with enhanced connectivity and flexibility.With network output, you can easily stream video and data over your existing network infrastructure.While the LVDS output provides a reliable and high-speed connection for local monitoring and control.

The 86x starlight camera module is an innovative high performance ultra long range zoom block camera over 775mm.
Multi-aspheric optical glass with good clarity. Large aperture design, low illumination performance. Horizontal field of view angle of 38 degrees, far more than similar products.

86x optical zoom ,optical defog, self-contained systematic temperature compensation scheme can ensure stronger environmental adaptability. The focal length 860mm provides the ability of long distance monitoring, it can be widely used in coastal defense, forest fire prevention and other industries.

A solid designed for ultra long range surveillence

Specifications

Camera

Sensor

Type

1/1.8" Sony Progressive Scan CMOS

Effective Pixels

8.42M pixels

Lens

Focal Length

11.3 ～ 1000mm

Optical Zoom

88×

Aperture

FNo: 2.1 ～ 7.0

HFOV (°)

37.5° ～ 0.4°

VFOV (°)

21.6° ～ 0.24°

DFOV (°)

42.6° ～ 0.5°

Close Focus Distance

5m ～ 10m (Wide ～ Tele)

Zoom Speed

9Sec (Optics, Wide ～ Tele)

DORI（M）(It is calculated based on the camera sensor specification and the criteria given by EN 62676-4:2015)

Detect

Observe

Recognize

Identify

22001

8730

4400

2200

Video & Audio Network

Compression

H.265/H.264/H.264H/MJPEG

Resolution

Main Stream: 3840*2160@25/30fps;LVDS: 1920*1080@25/30fps

Video Bit Rate

32kbps ～ 16Mbps

Audio Compression

AAC/MP2L2

Storage Capabilities

TF card, up to 256GB

Network Protocols

ONVIF, GB28181, HTTP, RTSP, RTP, TCP, UDP

General Events

Motion Detection, Tamper Detection, Scene Changing, Audio Detection, SD Card, Network, Illegal Access

IVS

Tripwire, Intrusion, Loitering, etc.

Upgrade

Support

Min Illumination

Colour: 0.05Lux/F2.1

Shutter Speed

1/3 ～ 1/30000 Sec

Noise Reduction

2D / 3D

Image Settings

Saturation, Brightness, Contrast, Sharpness, Gamma, etc.

Flip

Support

Exposure Model

Auto/Manual/Aperture Priority/Shutter Priority/Gain Priority

Exposure Comp

Support

WDR

Support

BLC

Support

HLC

Support

S/N Ratio

≥ 55dB（AGC Off, Weight ON）

AGC

Support

White Balance (WB)

Auto/Manual/Indoor/Outdoor/ATW/Sodium Lamp/Natural/Street Lamp/One Push

Day/Night

Auto (ICR)/Manual (Colour, B/W)

Digital Zoom

16×

Focus Model

Auto/Manual/Semi-Auto

Defog

Electronic-Defog / Optical-Defog

Image Stabilisation

Electronic Image Stabilisation (EIS)

External Control

2× TTL3.3V, Compatible with VISCA and PELCO protocols

Video Output

Network & LVDS

Baud Rate

9600 (Default)

Operating Conditions

-30℃ ～ +60℃; 20﹪ to 80﹪RH

Storage Conditions

-40℃ ～ +70℃; 20﹪ to 95﹪RH

Weight

5600g

Power Supply

+9 ～ +12V DC

Power Consumption

Static: 6.5W; Max: 8.4W

Dimensions (mm)

Specification		Explain
Sensor	Image Sensor	1/2 "progressive scan CMOS
Lens	Focal Length	f：10～860mm
	Field of View	42～0.44（°）
	Aperture	FNo：2.0～6.8
	Working Distance	5m～10m（Wide～Tele）
Video & Audio Network	Compression	H.265/H.264/H.264H/MJPEG
	Audio Codec	ACC, MPEG2-Layer2
	Audio In Type	Line-In, Mic
	Sampling Frequency	16kHz, 8kHz
	Storage Capabilities	TF card, up to 256G
	Network Protocol	Onvif, HTTP, RTSP, RTP, TCP, UDP
	IVS	Tripwire, Intrusion, Loitering Detection, etc.
	General Event	Motion Detection, Tamper Detection, Audio Detection, No SD Card, SD Card Error, Disconnection, IP Conflict, Illegal Access
Resolution		50Hz , 25/50fps（1920 × 1080）； 60Hz, 30/60fps（1920 × 1080）
S/N Ratio		≥55dB（AGC Off , Weight ON）
EIS		Support
Minimum Illumination		Color:0.02Lux/F2.0;
Defog		Optical Defog + Electronic Defog
HLC		Support
BLC		Support
WDR		Support
Day/Night		Auto(ICR) / Color / B/W
Zoom Speed		8 S(Wide-Tele）
White Balance		Auto/Manual/ATW/Outdoor/Indoor/Outdoor Auto/ Sodium Lamp Auto/Sodium Lamp
Electronic Shutter Speed		Auto Shutter/Manual Shutter（1/3s～1/30000s）
Exposure		Auto/Manual/ Shutter Priority/Gain priority
Noise Reduction		2D/3D
Image flip		Support
External Control		2×TTL
Focus Mode		Auto/Manual/Semi-Auto
Digital Zoom		4x

Operating Conditions	-20°C～+60°C/20﹪ to 80﹪RH
Storage Conditions	-30°C～+70°C/20﹪ to 95﹪RH
Power Supply	DC 12V±15% (Recommended: 12V)
Power Consumption	Static Power Consumption:6.5W， Operating Power Consumption:8.4W
Dimensions	Length * Width * Height：395145150（mm）;Lens Diameter： 120mm.
Weight	5600g
