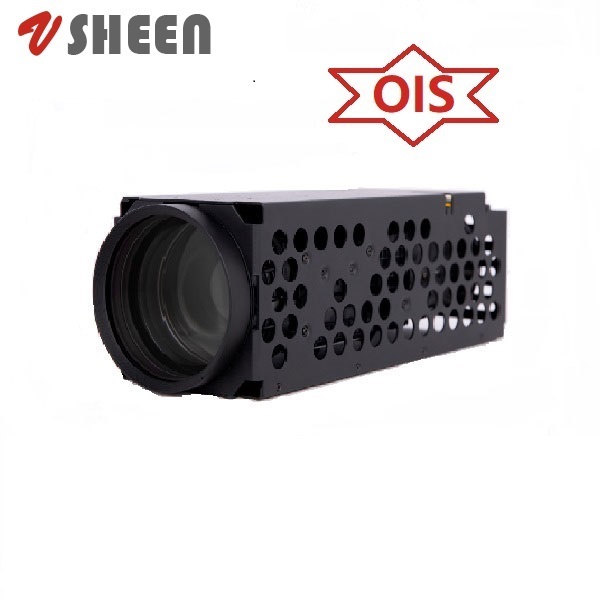

Chinese Professional Hdmi Zoom Camera Module - 57X OIS 15~850mm 2MP Network Long Range Zoom Camera Module – Viewsheen
Chinese Professional Hdmi Zoom Camera Module - 57X OIS 15~850mm 2MPNetwork Long RangeZoom Camera Module – ViewsheenDetail:
Overview
The 57x OIS zoom camera has superior environmental adaptability based on the following functions:
Specification
| Camera | ||
| Sensor | Type | 1/1.8″ Sony Progressive Scan CMOS |
| Lens | Focal Length | 15 ～ 850mm |
| Zoom | 57× | |
| Aperture | FNo: 2.8 ～ 6.5 | |
| HFOV | 29.1° ～ 0.5° | |
| VFOV | 16.7° ～ 0.2° | |
| DFOV | 33.2° ～ 0.6° | |
| Close Focus Distance | 1m ～ 10m (Wide ～ Tele) | |
| Zoom Speed | 8 Sec (Optics, Wide ～ Tele) | |
| Video & Audio Network | Compression | H.265/H.264/H.264H/MJPEG |
| Resolution | Main Stream:1080P@25/30fps;720P@25/30fpsSub Stream 1:D1@25/30fps; CIF@25/30fpsSub Stream 2:1080P@25/30fps; 720P@25/30fps;D1@25/30fps LVDS:1080P@25/30fps | |
| Video Bit Rate | 32kbps ～ 16Mbps | |
| Audio Compression | AAC/MP2L2 | |
| Storage Capabilities | TF card, up to 256GB | |
| Network Protocols | ONVIF, HTTP, RTSP, RTP, TCP, UDP | |
| General Events | Motion Detection, Tamper Detection, Scene Changing, Audio Detection, SD Card, Network, Illegal Access | |
| IVS | Tripwire, Intrusion, Loitering, etc. | |
| Upgrade | Support | |
| Min Illumination | Colour: 0.05Lux@ (F2.8, AGC ON) | |
| Shutter Speed | 1/1 ～ 1/30000 Sec | |
| Noise Reduction | 2D / 3D | |
| Image Settings | Saturation, Brightness, Contrast, Sharpness, Gamma, etc. | |
| Flip | Support | |
| Exposure Model | Auto/Manual/Aperture Priority/Shutter Priority/Gain Priority | |
| Exposure Comp | Support | |
| WDR | Support | |
| BLC | Support | |
| HLC | Support | |
| S/N Ratio | ≥ 55dB (AGC Off, Weight ON) | |
| AGC | Support | |
| White Balance (WB) | Auto/Manual/Indoor/Outdoor/ATW/Sodium Lamp/Natural/Street Lamp/One Push | |
| Day/Night | Auto (ICR)/Manual (Colour, B/W) | |
| Digital Zoom | 16× | |
| Focus Model | Auto/Manual/Semi-Auto | |
| Defog | Electronic-Defog / Optical-Defog | |
| Image Stabilisation | Electronical Image Stabilisation (EIS)Optical Image Stabilisation (OIS) | |
| Heat Haze Reduction | Support | |
| External Control | 2× TTL3.3V, Compatible with VISCA and PELCO protocols | |
| Video Output | Network & LVDS | |
| Baud Rate | 9600 (Default) | |
| Operating Conditions | -30℃ ～ +60℃; 20﹪ to 80﹪RH | |
| Storage Conditions | -40℃ ～ +70℃; 20﹪ to 95﹪RH | |
| Weight | 3255g | |
| Power Supply | +9 ～ +12V DC (Recommend: 12V) | |
| Power Consumption | Static: 4W; Max: 9.5W | |
| Dimensions (mm) | Length * Width * Height：320*109*109 | |
Dimensions
