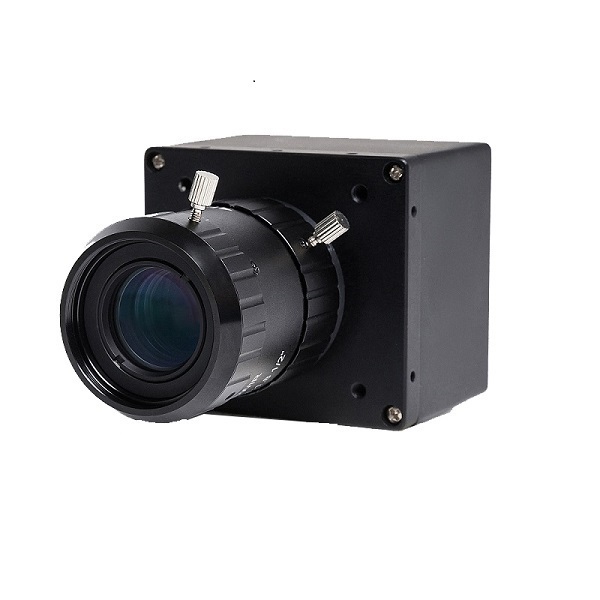

1280×1024 NIR SWIR Camera Module
VS-MIYA012N0.4~1.7μm spectral range
1280×1024 NIR SWIR Camera Module
VS-MIYA012N
> 1280(H) × 1024 (V), 5μm Pixel Pitch, 0.4~1.7μm Spectral Range;
> 12mm F1.6 SWIR C-Mount Lens options;
> The Max. Resolution: 1280*1024 @ 60fps;
> Supports triple stream, meet the varying demands of stream bandwidth and frame rate for live preview and storage;
> Supports H.265, Higher encoding compression rate;
> Supports IVS: Tripwire, Intrusion, Loitering, etc.;
> Full functions: PTZ control, Alarm, OSD
Specifications
| Camera | ||
| Sensor | Type | InGaAs |
| Pixel Pitch | 5μm | |
| Effective pixels | 1280 (H) × 1024 (V) | |
| Spectral Range | 0.4~1.7μm | |
| Lens | Focal Length | 12mm |
| Aperture | F1.6 ~ 22 | |
| HFOV | 29.8° | |
| VFOV | 24° | |
| Video & Network | Compression | H.265/H.264/H.264H/MJPEG |
| Resolution | Main Stream:50/60 fps: 1280*1024; | |
| Video Bit Rate | 32kbps ～ 16Mbps | |
| Audio Compression | AAC / G711 | |
| Storage Capabilities | TF card, up to 256GB | |
| Network Protocols | ONVIF, HTTP, RTSP, RTP, TCP, UDP | |
| General Events | Motion Detection, Tamper Detection, Scene Changing, Audio Detection, SD Card, Network, Illegal Access | |
| IVS | Tripwire, Intrusion, Loitering, etc. | |
| Upgrade | Support | |
| Noise Reduction | 2D / 3D | |
| Image Settings | Brightness, Contrast, Sharpness, etc. | |
| Flip | Support | |
| Focus Model | Manual | |
| External Control | TTL3.3V, Compatible with VISCA; RS-485, Compatible with PELCO | |
| Video Output | Network | |
| Baud Rate | 9600 (Default) | |
| Operating Conditions | -30℃ ～ +60℃; 20﹪ to 80﹪RH | |
| Storage Conditions | -40℃ ～ +70℃; 20﹪ to 95﹪RH | |
| Weight | ≤260g | |
| Power Supply | +9 ～ +12V DC (Recommend: 12V) | |
| Power Consumption | Avg: ≤4.5W | |
| Dimensions (mm) | 117.5*50*55 | |
