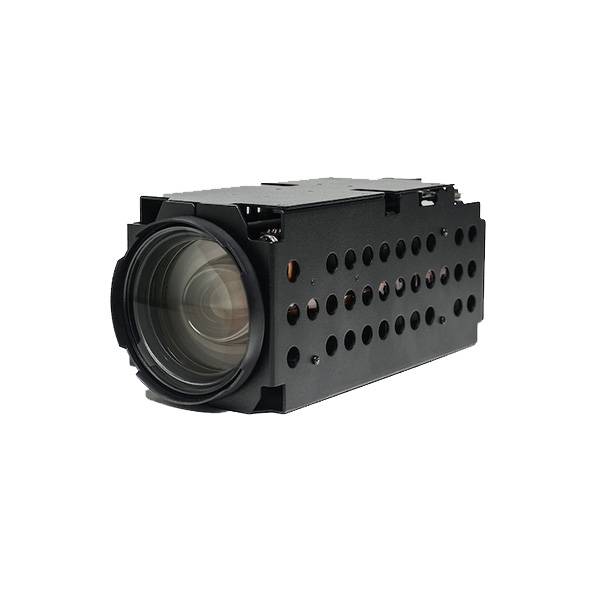

OEM Manufacturer 50x Optical Zoom Camera - 90X 6~540mm 2MP NetworkLong Range Zoom Block Camera Module – ViewsheenDetail:
Technical Specification
Specification | Description |
Sensor | Image Sensor | 1/1.8″ Sony CMOS |
Lens | Focal Length | 6mm~540mm, 50× |
Aperture | F1.4~F4.8 |
Close Focus Distance | 1m~5m (Wide～Tele) |
Field of View | 65°~0.8° |
Video & Network | Compression | H.265/H.264/H.264H/MJPEG |
Audio Codec | ACC, MPEG2-Layer2 |
Audio In Type | Line-In, Mic |
Sampling Frequency | 16kHz, 8kHz |
Storage Capabilities | TF card, up to 256G |
Network Protocols | Onvif, HTTP, RTSP, RTP, TCP, UDP |
IVS | Tripwire, Intrusion, Loitering Detection, etc. |
General Event | Motion Detection, Tamper Detection, Audio Detection, No SD Card, SD Card Error, Disconnection, IP Conflict, Illegal Access |
Resolution | 50Hz: 25fps@2Mp(1920×1080); 60Hz: 30fps@2Mp(1920×1080) |
S/N Ratio | ≥55dB (AGC Off, Weight ON) |
Minimum Illumination | Color: 0.05Lux/F1.4 |
EIS | ON/OFF |
Defog | ON/OFF |
Exposure Compensation | ON/OFF |
HLC | ON/OFF |
Day/Night | Auto(ICR)/Manual(Color,B/W) |
Zoom Speed | 8 S（Optics，Wide-Tele） |
White Balance | Auto/Manual/ATW/Outdoor/Indoor/Outdoor automatic/ sodium lamp automatic/sodium lamp |
Electronic Shutter Speed | Auto Shutter(1/3s～1/30000s) , Manual Shutter(1/3s～1/30000s) |
Exposure | Auto/Manual |
Noise Reduction | 2D; 3D |
Flip | Support |
Control Interface | 2×TTL |
Focus Modee | Auto／Manual／Semi-Auto |
Digital Zoom | 4× |
Operating Conditions | -30°C~+60°C/20% to 80%RH |
Storage Conditions | -40°C~+70°C/20% to 95%RH |
Power Supply | DC 12V±15% (Recommend: 12V) |
Power Consumption | Static power: 4.5W; Operating Powe: 5.5W |
Dimensions(L*W*H) | Approx. 175.3mm*72.2mm*77.3mm |
Weight | Approx. 900g |

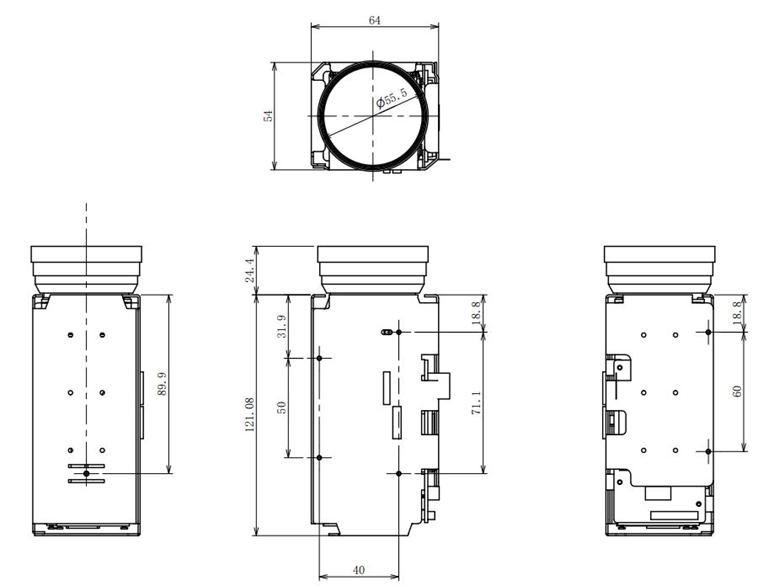

Dimensions
Interface
Type | PIN No. | PIN Name | Description |
| (1) 4PIN Internet Interface | 1 | ETHRX- | Internet RX- |
2 | ETHRX+ | Internet RX+ |
3 | ETHTX- | Internet TX- |
4 | ETHTX+ | Internet TX+ |
| (2) 6PIN Power & UART Interface | 1 | DC_IN | DC12V±10% |
2 | GND | GND |
3 | RXD1 | RXD(TTL3.3V), Pelco Protocol |
4 | TXD1 | TXD(TTL3.3V), Pelco Protocol |
5 | RXD0 | RXD(TTL3.3V), Visca Protocol |
6 | TXD0 | TXD(TTL3.3V), Visca Protocol |
| (3) Audio & Video Interface | 1 | AUDIO_OUT | Audio Out(Line Out) |
2 | GND | GND |
3 | AUDIO_IN | Audio In(Line In) |
4 | GND | GND |
5 | VIDEO_OUT | Video Out(CVBS) |
Product detail pictures:
