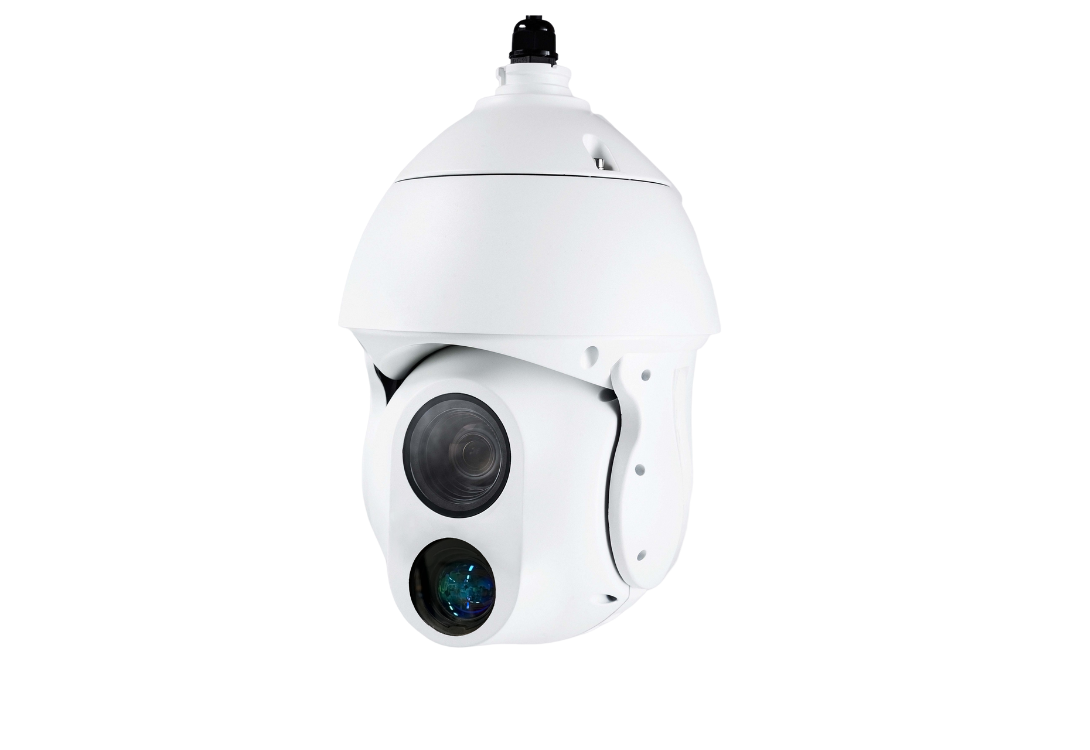

PROTECTOR S10L

Outdoor 4MP 37x Zoom Bispectral Laser PTZ Network Security Camera

1/1.8"4MP Visible Sensor
6.5-240mm 37x Visible Zoom
500m Laser Illuminator

VS-SDZ4037K-L5-T3

Outdoor 4MP 37x Zoom Bispectral Laser PTZ Network Security Camera

Overview Specifications Download

GET PRICING/INFO

VISHEEN’s Protector S10L Laser PTZ camera integrates a 37x zoom QHD visual module and 500m laser illuminator, gives operators the ability to monitor large areas in any light condition and adverse weather. Built-in machine learning algorithms accurately detect and classify human and vehicle threats moving, minimizing false alarms and daily operations costs. The exceptional detection and identification capabilities of Protector S10L help integrators provide solutions for challenging imaging problems at critical infrastructure sites and remote facilities.

Features

Human & Vehicle Classification

With a variety of in-house machine learning algorithms supported, the Protector S10L notifies you of people, vehicles or anomalies to help you identify potential threats.

See Clearly in All Light Conditions

With advanced 500m laser illuminator, S10L presents every detail even in full darkness and adverse weather.

Large Area Coverage

6.5-240mm 37x visible zoom lens with Optical Defog, SM10 perfectly balances the field of view with maximizing the detection distance.

Excellent Compatibility

Compatible with the standard Onvif protocol, S10L is perfectly accessible by the most common VMS on the market.

Specifications

Product Model	PROTECTOR S10L
Visible Camera
Image Sensor	1/1.8" STARVIS progressive scan CMOS
Resolution	2688 x 1520, 4MP
Lens	6.5~240mm, 37x motorized zoom, F1.5~4.8 Field of view: 61.8°x 37.2°(H x V)～1.86°x 1.05°(H x V)
Image Stabilization	EIS
Optical Defog	Auto/Manual
Digital Zoom	16x
DORI	Detection
Human (1.7 x 0.6m)	1987m
Vehicle (1.4 x 4.0m)	4636m
Laser Illuminator
Wavelength	808nm±5nm
Ranging distance	≥ 500m
DRI	Detection
Human (1.7 x 0.6m)	2292m
Vehicle (1.4 x 4.0m)	7028m
Pan/Tilt
Pan	Range: 360° continuous rotation Speed: 0.1°~ 150°/s
Tilt	Range: -10°~+90° Speed: 0.1°～80°/s
Video and Audio
Video Compression	H.265/H.264/H.264H/ H.264B/MJPEG
Main Stream	Visible: 25/30fps (2688 x 1520, 1920 x 1080, 1280 x 720), 16fps@MJPEG Thermal: 25/30fps (1280 x 1024, 704 x 576)
Sub Stream	Visible: 25/30fps (1920 x 1080, 1280 x 720, 704 x 576/480) Thermal: 25/30fps (704 x 576, 352 x 288)
Analytics
Perimeter Protection	Line crossing, Fence crossing, Intrusion
Target Distinction	Human/Vehicle/Vessel Classification
Behavioral Detection	Object left in area, Object removal, Fast moving, Gathering, Loitering, Parking
Others	Fire/Smoke Detection
General
Casing	IP 66, Corrosion-resistant coating
Power	24V AC, typical 19W, max 22W, AC24V Power adapter included
Operating Conditions	Temperature: -40℃~+60℃/22℉~140℉, Humidity: <90%
Dimensions	Φ353*237mm
Weight	8kg
