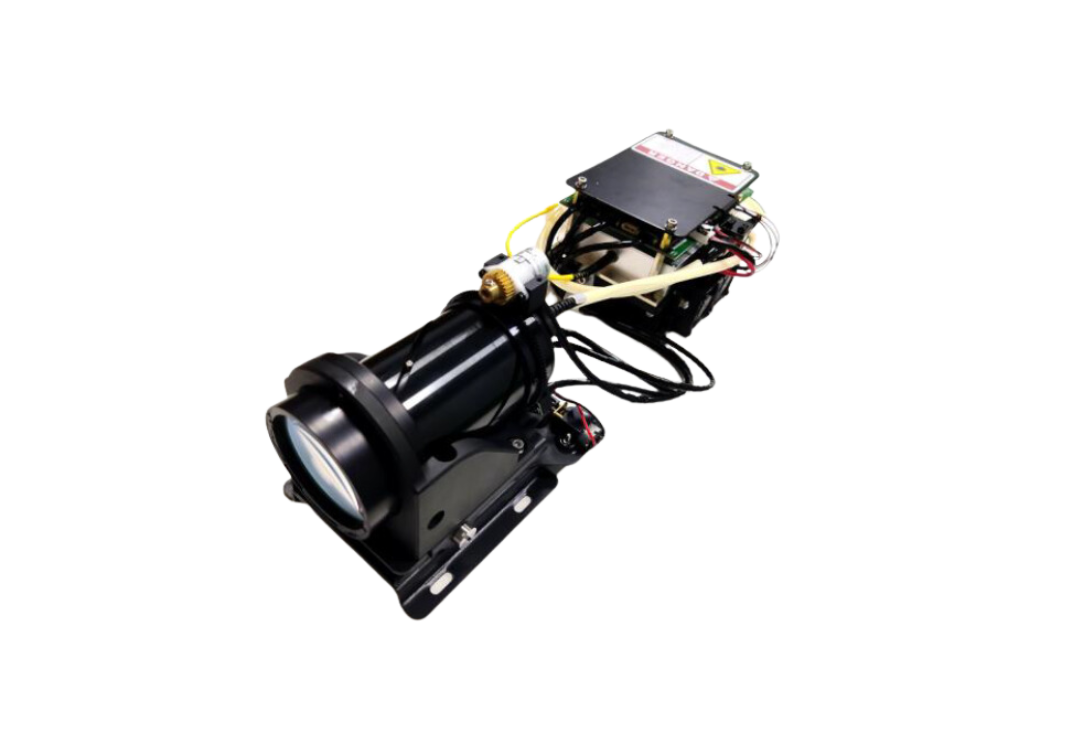

3 Kilometers Laser Illuminator Module
VS-IR-808-3000 / VS-IR-940-3000· Smart Sync Zoom, perfectly compatible with VISHEEN Camera modules.
· -35°C low temperature cold start.
· Plug and Play.
· Intelligent Auto-dimming.
3 Kilometers Laser Illuminator Module
VS-IR-808-3000 / VS-IR-940-3000
Specifications
| MAX. Distance | ≥3000m |
| Wavelength | 808nm (940nm option) |
| Illumination Angle | Sync Zoom，0.3°～35° continuous |
| Speed | ≤10 Sec (0.3°～35°) |
| Laser Type | Fiber homogenization lasers |
| Laser Safety Level | Class 4 (FDA, IEC) |
| Laser chip power | 21±2W |
| Output Power | 20±2W |
| Power | 24V DC ± 10% (2.2A±0.3A) |
| Power Consumption | ≤60W |
| Control Interface | RS-485; TTL (Default: 9600bps) |
| Protocols | Pelco-D; View Sheen Private Commands |
| Work Temperature | -35℃ ～ +55℃ |
| Storage Temperature | -40℃ ～ +85℃ |
| Dimension | 98mm×104mm×310mm（W × H × L） |
| Weight | <2000g |
