30X HD Digital LVDS Output Zoom Camera Module Replace Sony FCB
The camera is the most classic zoom block camera compatible with SONY FCB7520. It can be widely used in CCTV, video conference, robot,drone and so on.
The lens and sensor with higher performance than Sony fcb7520 are adopted, but the price is lower than Sony fcb7520, which can be stably supplied in batches.
The control is simple and compatible with VISCA protocol. If you are familiar with the control of Sony block camera, it is easy to use our camera.
Specification
|
Specification |
Explain |
|
|
Camera |
Image Sensor |
1/2.8’' CMOS |
|
TVL |
≥1000TVL |
|
|
Effective Pixels |
1920×1080 |
|
|
Minimum Illumination |
Color：0.005Lux/F1.5；B/W：0.005Lux/F1.5 |
|
|
Gain control |
Auto／Manual |
|
|
3D Noise Reduction |
Support |
|
|
2D Noise Reduction |
Support |
|
|
S/N Ratio |
≥55dB（AGC Off，Weight ON） |
|
|
White Balance |
Automatic / Manual / Tracking / Outdoor / Indoor / Outdoor Auto/ Sodium Lamp Auto / Sodium Lamp |
|
|
Electronic Shutter Speed |
1/1～1/30000s |
|
|
EIS |
Support |
|
|
Defog |
Support |
|
|
BLC |
Support |
|
|
WDR |
Support |
|
|
HLC |
Support |
|
|
Digital Zoom |
16X (area) |
|
|
Day/Night |
Auto(ICR)/Manual(Color,B/W) |
|
|
Focus Mode |
Auto／Manual／One-off Focus |
|
|
Operating Conditions |
（-20°C～+60°C/20﹪ to 80﹪RH） |
|
|
Storage Conditions |
（-30°C～+70°C/20﹪to 95﹪RH） |
|
|
Power Supply |
DC 12V±15% (Recommended: 12V) |
|
|
Power Consumption |
Static Power Consumption: 3.5W, Motion Power Consumption: 4.5W |
|
|
Dimensions |
Length * Width * Height：96.3*52*58.6mm |
|
|
Weight |
285g |
|
|
Lens |
Focal Length |
f：4.7～141mm, 30x |
|
Aperture |
FNo：1.5～4.0 |
|
|
Angle of View |
Horizontal:60.5°～2.3° |
|
|
Working Distance |
1m～1.5m（Wide～Tale） |
|
|
Zoom Speed |
3.5S（Wide-Tele） |
|

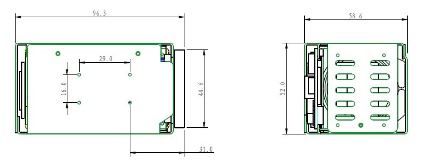

Dimensions
